A Class 5 chemical integrator is a single-use indicator that responds to all the critical variables of a steam cycle, time, temperature, and saturated steam, and it performs in a way that correlates with the inactivation of spores. In plain terms, it is the closest a chemical test comes to acting like a biological indicator, without the incubation wait. Clinics use it to decide, load by load, whether sterilization conditions were achieved before instruments are released.
The behaviour of Class 5 integrators sits within the ISO 11140-1 framework, which groups chemical indicators by what they measure and how they perform. This article explains where Class 5 fits, how it differs from Class 1 tape and Class 4 indicators, and how to read it after a cycle.
Quick Facts
- Class 5 integrators react to all critical variables and are designed to emulate biological indicator performance.
- Class 1 autoclave tape only shows that an item went through a process, not that the process was adequate.
- Class 4 indicators respond to two or more variables but do not integrate the full exposure.
- An integrator gives a fast per-load signal; the biological indicator is the periodic confirmation for the sterilizer itself.
Where Class 5 Sits in ISO 11140-1
ISO 11140-1 organizes chemical indicators into types by the variables they measure and how their performance is validated. Each type answers a different question, so choose the indicator that matches the decision you need to make.
A Class 1 indicator, such as autoclave tape, tells you an item was exposed to a sterilization process. A Class 4 indicator responds when two or more critical variables reach stated values. A Class 5 integrating indicator goes further: its response correlates with biological indicator performance under defined conditions, making it the strongest chemical signal for a specific load.
Why Multi-Parameter Performance Matters
Sterilization is a combination, not a single number. A chamber can reach the right temperature and still fail because exposure was short, or hold time and temperature and still fail because the steam was not saturated.
Because a Class 5 integrator responds to all critical variables together, it reaches its endpoint only when the full combination has been present: adequate time, adequate temperature, saturated steam. That is why a passing integrator carries more weight than tape that changed colour.
Class 5 vs Class 1 Tape vs Class 4
| Type | What it indicates | Typical use |
|---|---|---|
| Class 1 (tape) | Item went through a process | Sealing and labelling wrapped packs |
| Class 4 | Two or more variables reached set values | Indicator patch on a sterilization pouch |
| Class 5 | All critical variables met; BI-like response | Inside packs for load release decisions |
In a Canadian dental office the three work as a team: Class 1 autoclave tape secures and labels wrapped packs, the Class 4 patch on a sterilization pouch confirms the pouch contents saw a sterilization process, and the Class 5 integrator inside a pack carries the load release decision.
Using an Integrator in a Real Load
Place the integrator where steam arrives last, usually the centre of the load. Many offices put one integrator in the most challenging package of each load rather than in every pouch. Keep the position consistent, because a monitoring program only tells you something when it is run the same way every time.
Reading and Documenting Results
Compare the indicator against its stated endpoint only after the cycle is complete, at the reading time printed on the package. A colour change that looks halfway is not a pass, and an indicator read too early is a false friend. Write each result on the cycle log with the load contents, and the log becomes your fastest diagnostic tool when weak results repeat in one position.

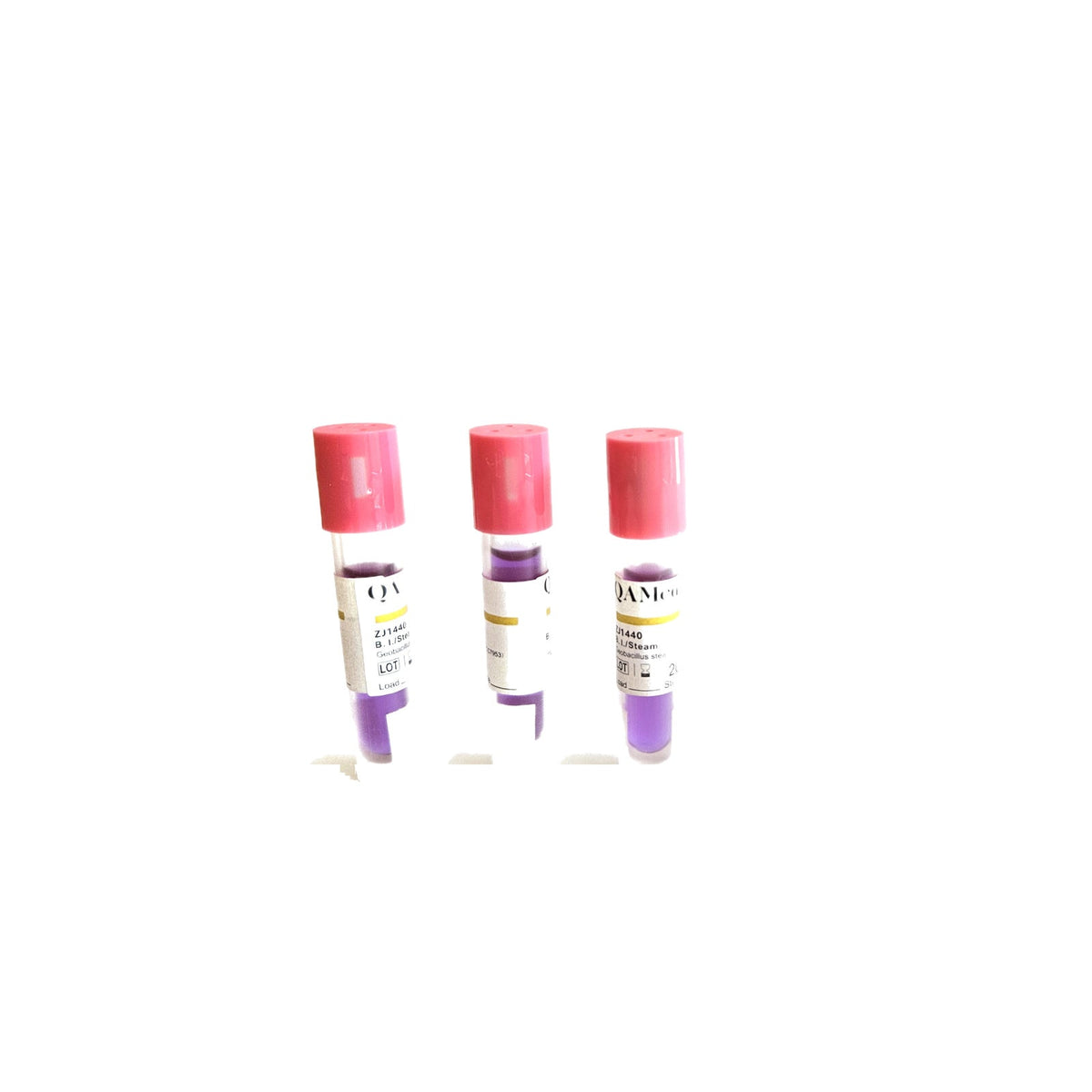

When the Biological Indicator Still Comes In
However strong a Class 5 integrator is, it does not replace the biological indicator. The integrator confirms conditions consistent with sterilization for a specific load; the biological indicator confirms the sterilizer can kill spores. Canadian dental offices run one at least weekly as the routine minimum. The integrator answers today, for this load; the spore test answers over time, for the machine itself. A monitoring program is complete only when both answers are on file.
Frequently Asked Questions
What does a Class 5 integrator actually measure?
It responds to the combination of time, temperature, and saturated steam over the full cycle, reaching its endpoint only when all critical variables have been present long enough that its response correlates with biological indicator performance.
If the integrator passes, is the load sterile?
No single indicator can certify sterility. A passing integrator means the conditions known to achieve sterilization were present in that load, which is why routine biological monitoring stays part of the program.
Do we need an integrator in every pouch?
It depends on your protocol. Many offices place one integrator in the most difficult position in each load, while others use one in every pack released on chemical evidence.
How is a Class 5 different from a biological indicator?
A Class 5 integrator gives a fast chemical result for a specific load, while a biological indicator contains live spores and proves the sterilizer can kill them after incubation. The integrator is the daily screen; the biological indicator is the periodic confirmation.
