CliniEco Rapid Reader — 4-Well Fluorescence Biological Indicator Reader (20-Minute / 1-Hour / 3-Hour Readout)
Specifications
| Type | Fluorescence biological indicator reader |
|---|---|
| Wells | 4 |
| Readout support | 20-minute / 1-hour rapid readout indicators |
| Use | Biological indicator incubation and reading |
| Bench-top | Yes |
| SKU | CLI-RR-004 |
| Brand | CliniEco Medical |
Pricing
| Order | Unit price |
|---|---|
| 1 case | $1,499.00 CAD |
| 2–4 cases | Request quote |
| 5+ cases | Request quote |
Read the full product guide 13 sections · specs, use, compliance
⚡ CliniEco Rapid Reader
This listing is the instrument that reads fluorescent biological indicators — not the indicators themselves.
Instrument-read fluorescence results — 20 minutes / 1 hour / 3 hours with our rapid-readout BIs (steam rapid modes per the reader manufacturer's technical data sheet)
4-well fluorescence reader for biological indicators

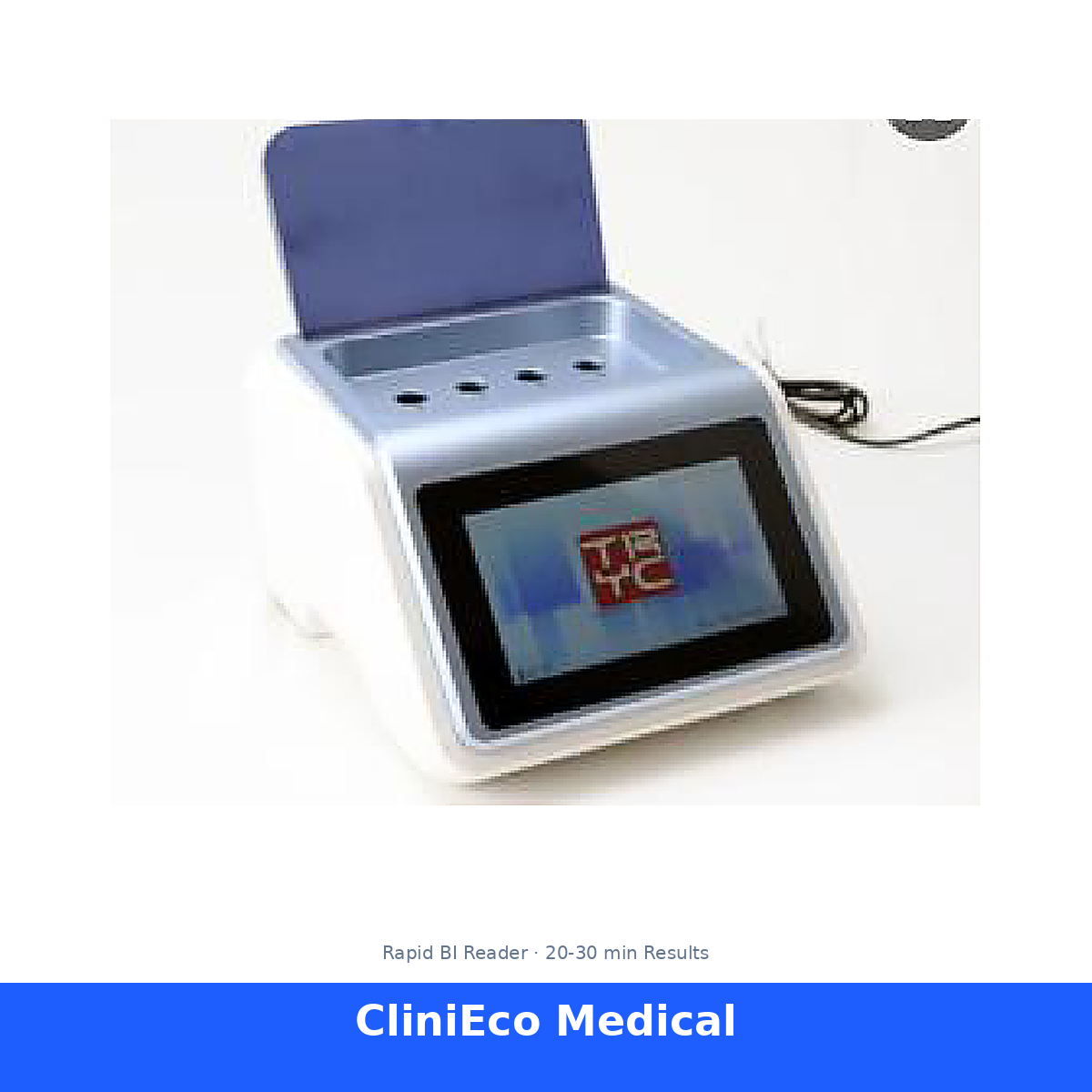

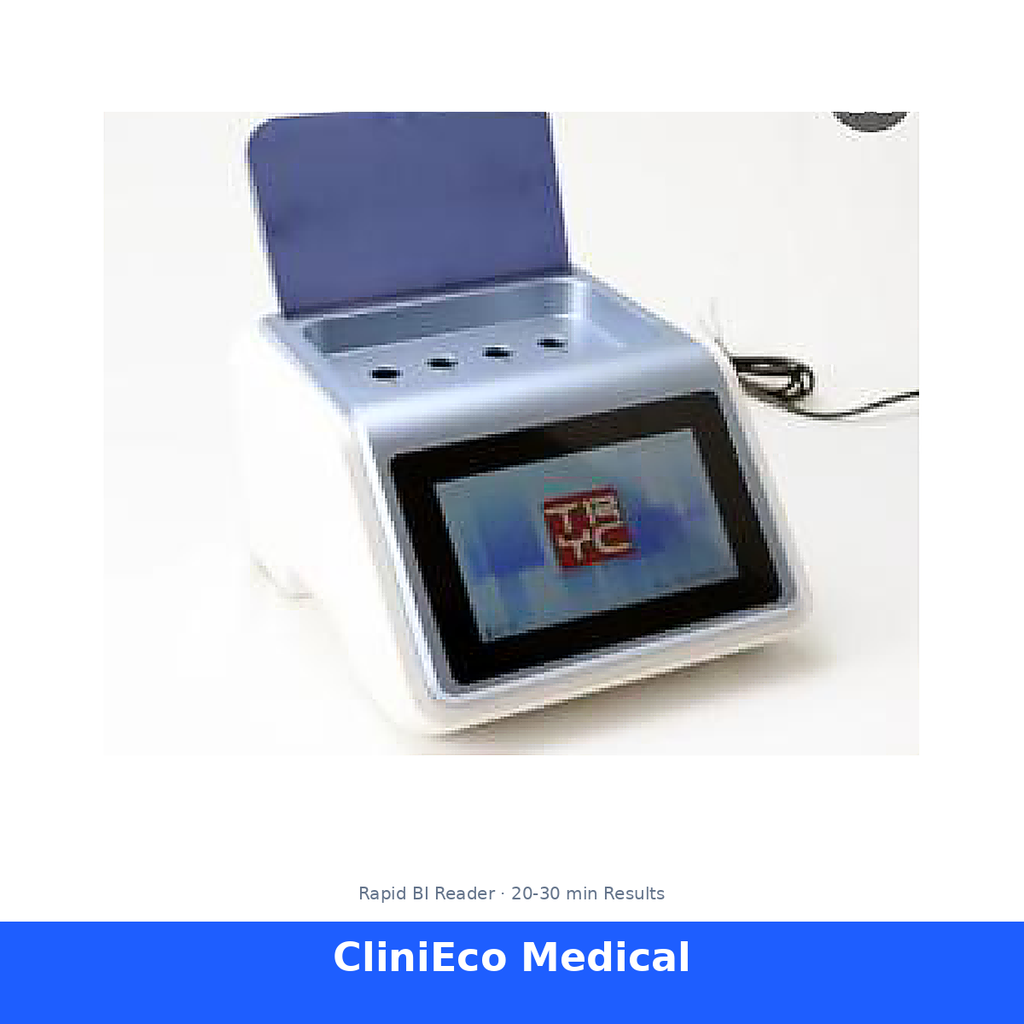

What ships is the reader: a four-well bench unit, model TR-R30MP4, holding ampoules at 56-60 °C and reporting a positive or negative fluorescence result. The ampoules are consumables bought separately; none of this page's $1,499 CAD is a box of tests, and an ampoule on its own cannot report a result.
Is this the reader or the indicators?

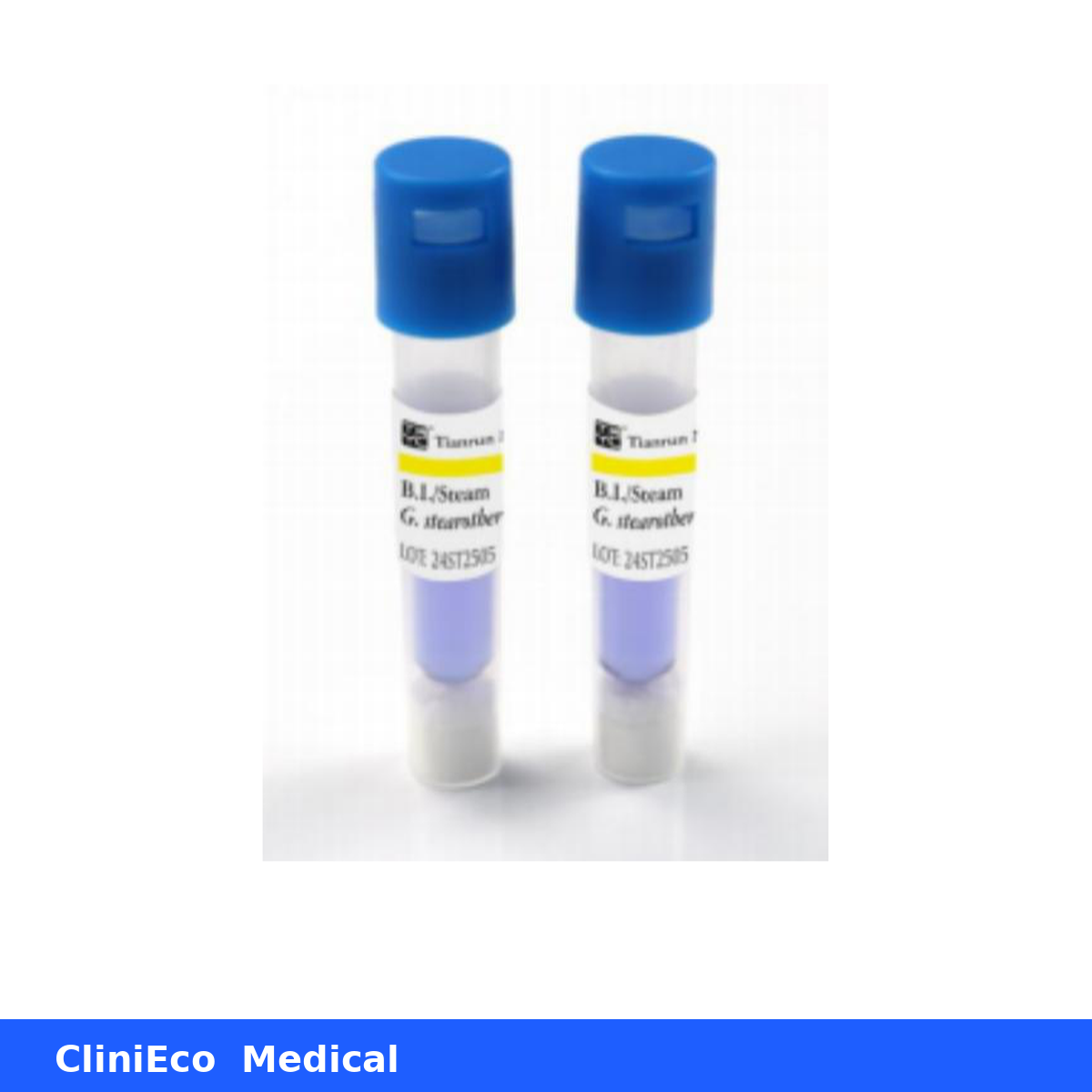

This page sells the reader only. The ampoules it reads are stocked as separate 50-packs and reordered monthly, so a clinic needs both lines to get a result: the instrument once, the vials continuously. The price gap shows which is which — the hardware is priced on this page, the fluorescence vials are priced per 50-pack on their own pages, and the per-test figure follows there by dividing. Opening the ampoule page when you meant the reader, or the reverse, costs a cycle: no vial means no test that day.
| Buy the Rapid Reader if… | Buy only the indicators if… |
|---|---|
| Your daily spore test uses a 20-minute fluorescence ampoule | Your daily spore test uses a 24-hour self-contained vial read by colour |
| Your daily spore test uses a 1-hour fluorescence ampoule | You read that colour change by eye after overnight incubation |
| Your daily spore test uses a 3-hour fluorescence ampoule | Next-morning results already fit the way your day opens |
| You want the positive or negative result reported by the instrument | You judge the result yourself against the unincubated control |
| You want the result stored on the device and exported over USB | A paper log sheet is the record you keep and file |
| You are moving a clinic from visual to instrument-read monitoring | You already own a reader that takes your current ampoules |
Which biological indicators work with this reader, and what do they cost per test?
Three fluorescence rapid-readout 50-packs fit this instrument, and the readout time is set by the ampoule rather than by the reader: the 20-minute 50-pack, the 1-hour 50-pack and the 3-hour 50-pack, each priced on its own page with the per-test figure following from the pack amount. The ampoules are sold separately and are not covered by the price of this instrument. Wells accept 8-11 mm ampoules and hold four at a time. The 24-hour self-contained 50-pack is a different product type and is not read by this instrument.
Do I need this reader if I use 24-hour self-contained BIs?
No. A 24-hour self-contained vial carries its own medium and turns colour when spores survive; after incubation the result is read by eye against a control, with no instrument in the loop. Pairing that vial with this reader adds $1,499 CAD of equipment the vial cannot use, because the wells are heated and optically read for fluorescence ampoules. The decision is therefore about which readout tier your working day needs: the 24-hour vial and the rapid ampoule carry different per-test figures, each set by the price shown on its own 50-pack page, while a fluorescence tier buys the same-day answer that lets a load return to the chair or the tray before the next cycle.
Put the choice on paper before the purchase order goes out: the spore-test log sheet shows the column your daily record has to fill, the sterilization log generator turns four wells a day into a month of entries, and the compliance desk will answer the reader-versus-ampoule question in writing, citing the regulation it relies on. This reader reaches Canada under establishment number MDEL #35334, held by CliniEco Medical, Toronto.
✅ Reads rapid fluorescence BI ampoules (20 min / 1 h / 3 h with our rapid-readout BIs) | ✅ Our 24-hour BIs are self-contained and read visually — no reader needed | ✅ No locked equipment — works with standard BI ampoules | ✅ Fluorescence readout (positive/negative) | ✅ Daily RCDSO/PHO biological monitoring ready
Compare: 3M Attest Mini Auto-reader 490M — CAD 1,162–1,410 at four Canadian distributors (Clinical Research Dental, 3B Dahabi, 3Z Dental, United Canada), read 30 Oct 2026
$1,499 CAD
Launch price — professional-grade 4-well fluorescence readerSold on its own — $1,499 CAD
This reader is $1,499 CAD, with no term and nothing to commit to. Our 3-hour indicators are priced per 50-pack on their own page.
$1,499 CAD — fully deductible against your rapid BIs. Buy the reader now and, within 12 months, the full $1,499 CAD comes back to you as credit on rapid BI purchases once you have ordered $1,500 CAD of rapid BIs. Net cost of the hardware: $0 CAD. The credit applies to the reader only, caps at $1,499 CAD, and does not stack with other offers.
No locked equipment · Works with standard rapid BI ampoules · Same-day compliance results
🎁 Buy the Reader — Get 1 Month of Rapid BIs FREE — order today and we'll include 50 rapid BI tests — one full month, a $249.99 CAD value (our 3-hour 50-pack) at no charge. Try the full rapid workflow from day one.
Why switch from 24-hour tests?
- ⏱️ Results in 20 minutes, 1 hour or 3 hours with our rapid-readout BIs — know same-day if your sterilizer passed
- 💰 BI priced per vial on that vial's own page — the per-test figure is that page's 50-pack price divided by fifty, and 3M Attest rapid-readout ampoules are priced by channel, so set both figures from your own quotations rather than from a summary line here

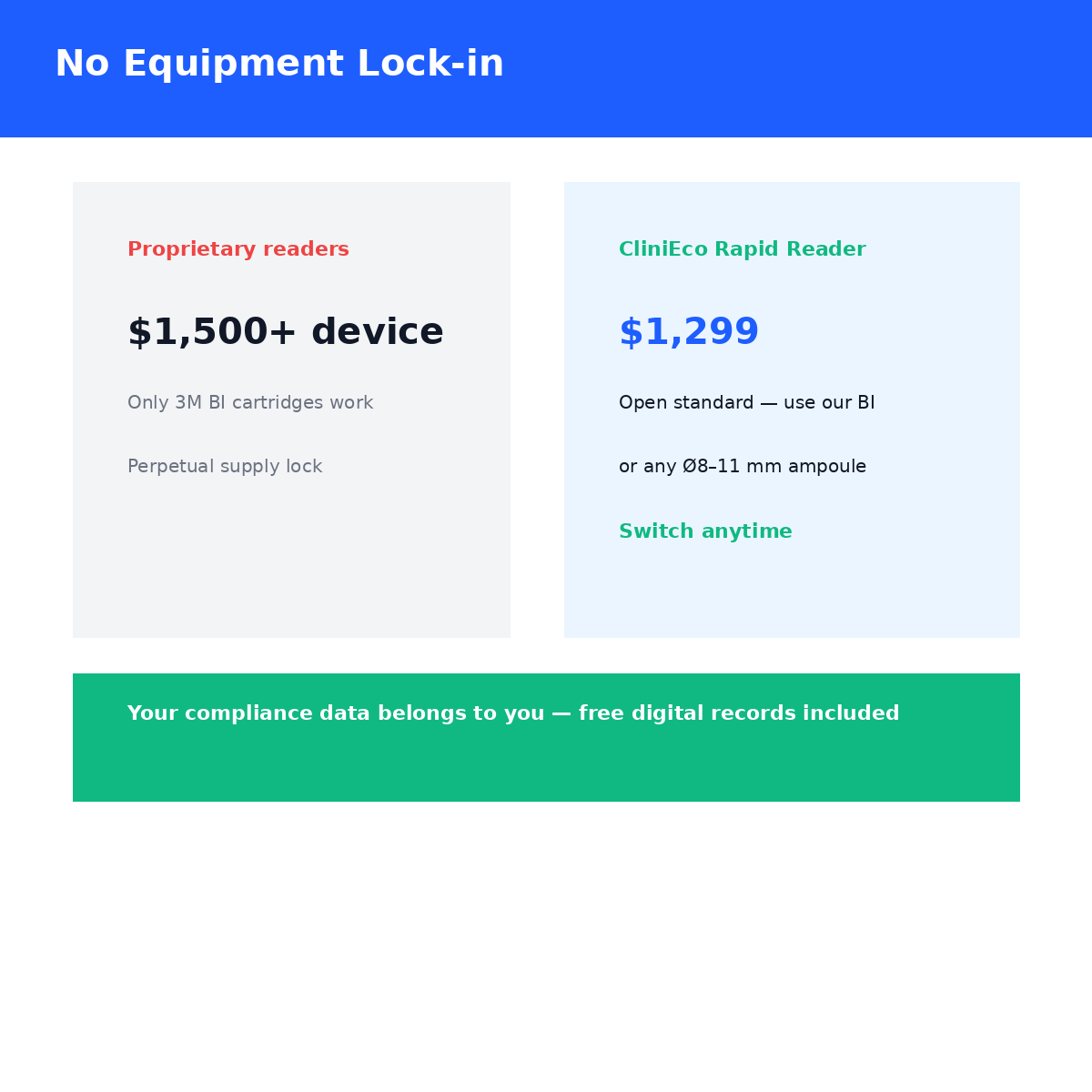

- 🔓 Three readout tiers on one instrument — this reader takes standard 8–11 mm ampoules across the 20-minute, 1-hour and 3-hour tiers, while the 3M Attest Mini Auto-reader 490M reads only its own closed set of 24-minute rapid ampoules (per 3M IFU)
- ✅ Daily compliance made easy — required by RCDSO/PHO, results when you need them
🛡️ Built to Clinical Standards — Inside This Reader
🔬 Precision Optical Detection
Blue LED excitation (~460nm) + silicon photodiode sensor with bandpass filter, in a light-sealed optical chamber — the same detection principle used by major brands, delivering clear positive/negative fluorescence readouts.
🌡️ 58°C ± 2°C Culture Temperature
PID-controlled PTC heating block with NTC temperature sensor, holding a 58°C culture temperature (±2°C), i.e. 56-60°C — critical for accurate BI results.
⚙️ Industrial-Grade Mainboard
ARM-based microcontroller with on-board memory (10,000+ result log), real-time clock, USB data export — audit-ready record keeping built in.
🔌 Robust Power & Build
100-240V AC worldwide power adapter, injection-molded enclosure, 2-year warranty with Toronto-based support.
Have a question about your own facility? Send it in and you will get a written answer specific to your setup, with the regulation or standard it is based on cited. Ask your compliance question.
How We Compare — Spec by Spec
| Specification | CliniEco Rapid Reader | 3M Attest 490M |
|---|---|---|
| Wells | 4 | 4 |
| Detection Method | Fluorescence enzyme (LED + photodiode) | Fluorescence (proprietary) |
| Readout Time | 3 hours with CliniEco 3-hour rapid BIs | 24 min with 3M super-rapid BIs (per 3M IFU) |
| Temperature | 56-60°C (58°C ± 2°C setpoint) | 60°C |
| BI Compatibility | Open — 8-11 mm fluorescence BI ampoules, no lock-in; the BI's rapid mode must match 20 min / 1 h / 3 h (manufacturer compatibility statement) | Locked to 3M Attest BIs |
| Data Logging | 10,000+ results, USB export | Attest Connect (optional) |
| Reader Price | $1,499 CAD | CAD 1,162–1,410 (4 distributors, read 30 Oct 2026) |
| BI Price (per test) | See each 50-pack page | See the 3M dealer's box-of-50 price |
Technical Specifications
| Specification | Detail |
|---|---|
| Model | TR-R30MP4 (4-well rapid fluorescence reader) |
| Detection Method | Fluorescence enzyme (α-glucosidase + fluorescent substrate) |
| Readout Time | 3 hours (our 3-hour rapid BIs) |
| Wells | 4 |
| Compatible Ampoules | Rapid BI ampoules Φ8-11 mm; rapid mode must match 20 min / 1 h / 3 h |
| Display | Clear positive/negative readout |
| Power | 110V/60Hz (North America) |
| Temperature | 56-60°C (58°C ± 2°C setpoint) |
| Application | Steam sterilization monitoring (daily RCDSO/PHO compliance) |
| Manufacturer | Manufacturer documentation available on request |
| Import | CliniEco Medical, Toronto, ON |
How it works
- Run your daily sterilization cycle
- Place a rapid BI ampoule in the reader
- Get the instrument-read result at the indicator's readout time (3 h with our 3-hour rapid BIs) — positive or negative
- Record results for RCDSO/PHO audit compliance
Sold on its own at $1,499 CAD, with no plan and no term.
Questions? Email alina@clinieco.ca · +1 (437) 466-2232
CliniEco Medical · Toronto, ON
Related Guides
Learn how to choose and use this product correctly:
Related tests in this BI line
- Clinic Starter Bundle — Gloves, Spore Testing & Sterilization Packaging
- CliniEco 24-Hour Biological Indicator Incubator — Precision Dry-Block, 24 Wells
- CliniEco Medical Biological Indicator — 1-Hour Rapid Readout, Fluorescence, 50-Pack
- CliniEco Medical Biological Indicator — 20-Minute Rapid Readout, Fluorescence, 50-Pack
- CliniEco Medical Biological Indicator — 24-Hour Self-Contained, 100-Pack
- CliniEco Medical Biological Indicator — 24-Hour Self-Contained, 25-Pack
- CliniEco Medical Biological Indicator — 24-Hour Self-Contained, 50-Pack
- CliniEco Medical Biological Indicator — 3-Hour Rapid Readout, Fluorescence, 50-Pack
- Free Biological Indicator 5-Pack (clinics)
- CliniEco Medical Bowie-Dick Test Pack — ISO 11140-5 Type 2, Daily Vacuum Check, 6-Pack
Related articles
- How to Choose a Biological Indicator Incubator for a Canadian Clinic
- 24-Hour Self-Contained Biological Indicators: Pack Sizes, Incubation and the Record
- Which Standards Apply to Medical Biological Indicator in the US vs Canada? Sizes and Sourcing
- Which Standards Apply to HB105-S1 Dry Bath Incubator with Lid in the US vs Canada? Sizes and Sourcing
Common questions
How fast are results compared with a 24-hour incubator?
This reader returns a fluorescence positive or negative readout in 3 hours with our 3-hour rapid BIs. Our 24-hour BIs are self-contained and are read visually, so they do not need this reader. It is not locked to one brand, so ampoules from other suppliers read at their own stated readout time. A traditional 24-hour incubator holds the indicator overnight, so a failed cycle found at the end of a clinic day is not known until the next morning.
Do I have to buy proprietary biological indicators to use it?
No. The reader is not locked to a single brand of indicator, and it works with standard rapid biological indicator ampoules. That matters because locked readers tie your ongoing monitoring cost to one supplier.
How many tests can it run at once?
Four wells. That is enough to run a control plus sterilizer loads side by side, or to test several sterilizers in the same session.
How does the cost compare with Crosstex or 3M readers?
This reader's price is the one shown on this page. Comparable fluorescence readers from Crosstex and 3M are sold through their own channels and their published figures move with the vendor, the reseller and the bundle, so ask each vendor for a dated quote before you compare. What stays fixed across all three is the job: a 4-well reader that incubates and reads fluorescence biological indicators on the same daily monitoring cycle.
Can I get the reader without paying the full price up front?
The reader is sold outright with no term and no subscription — the price is the one on this page, payable once. It ships with 50 rapid tests included, which is one month of daily testing, so you can start straight away. Consumables after that come in our Sterilization Compliance Kits.
Does a rapid result still satisfy daily monitoring documentation?
The result is recorded the same way as any biological indicator result: date, sterilizer, cycle type and outcome. The difference is timing, not record content, so the log satisfies daily monitoring documentation while giving you the answer the same session.
