How to Choose a Biological Indicator Incubator for a Canadian Clinic
How do you choose a biological indicator incubator for a Canadian clinic?
Friday afternoon in a four-chair dental clinic: the last load comes out of the autoclave, an assistant drops a self-contained spore vial into the block, the lid goes back on, and nobody looks at that vial again until Saturday morning. By then the clinic has released thirty instrument packs on the strength of a colour anyone could read. The incubator between those two moments separates a documented release decision from an undocumented guess, which is why it deserves a selection process rather than a marketplace search sorted by price.
Selection comes down to eight dimensions, each with a threshold you can read on a specification sheet or on the machine, before the invoice rather than after an inspector asks.
| Dimension | What to check | Threshold to put in your file |
|---|---|---|
| Setpoint range | Temperature the block can hold, and the stated tolerance | A range that brackets 56–60 °C, with tolerance written as a number |
| Uniformity across wells | Published uniformity figure, and the temperature it was measured at | A figure in °C you can quote in your log |
| Well count and diameter | Wells (20, 24, 40) and bore size against the vial you buy | Room for a day of tests plus one positive control, in one batch |
| Indicator type supported | 24-hour colour change, or 1-hour, 3-hour, 20-minute fluorescence | Matched to the indicators your clinic actually stocks |
| Calibration path | External sensor such as PT1000, and what ships with the unit | A calibration record you can produce on request |
| Electrical safety mark | cTUVus, cUL, CSA or ULC on the nameplate | A mark recognised for equipment sold in Canada |
| Records | Whether the unit exports data or you write by hand | Either path is acceptable; the record has to exist |
| Heat retention | Lid or closed chamber over the block | Vials held at temperature for the full readout period |
Well count is the dimension clinics under-buy, because a daily test is never one vial. Each test is paired with a positive control, so a twenty-well block is ten tests, and a clinic running two sterilizers reaches that ceiling on the first day of the week. The unit we list as the reference configuration is the DLAB HB105-S1 dry bath incubator with lid: one block, 20 wells in five rows of four, 11 mm bores for 8 mm vial bodies, ±0.5 °C uniformity at 37 °C, a transparent hand-closed lid, a PT1000 external sensor port, and a cTUVus mark under TÜV Rheinland certificate CU 72205506 0001, tested to UL 61010-1 and CAN/CSA-C22.2 No. 61010-1-12.
Which brands and formats are available in Canada?
Four formats are sold into Canadian clinics, and they are not interchangeable.
- Dry-block incubation: an aluminium block bored with wells, heated to a setpoint. This is the format most clinics own, and the one that fits a 24-hour self-contained vial.
- Forced-air incubation: a larger chamber with air circulating around the load, common in hospital laboratories where a whole batch is incubated together.
- Water bath: the historic method, where uniformity depends on circulation, the water evaporates, and the bath becomes a contamination site of its own.
- Instrument-read fluorescence: a reader holds the ampoule at temperature and reports the result itself, a different purchase from a unit that only provides conditions.
The supply side is narrow. DLAB builds the HB105-S1 with lid; CliniEco sells its own 24-well dry block; the large indicator manufacturers publish incubator families of their own, among them 3M with its Attest incubation line, Crosstex, Terragene and Bionova, SPSmedical and Getinge, mostly through Canadian distributors. Model designations, well counts and temperature specifications change between generations, so the only number worth ordering against is the one in the manufacturer's current technical data sheet, with its revision date. Of that landscape, two units are ours to support directly: the DLAB HB105-S1 described above, and the CliniEco 24-hour BI incubator, 24-well dry block with USB export, which records a run as a file instead of a handwriting exercise.
How do they compare, and where does each one fall short?
| Unit | Wells | Indicators it reads | Temperature | Records | Listed price | Where it falls short |
|---|---|---|---|---|---|---|

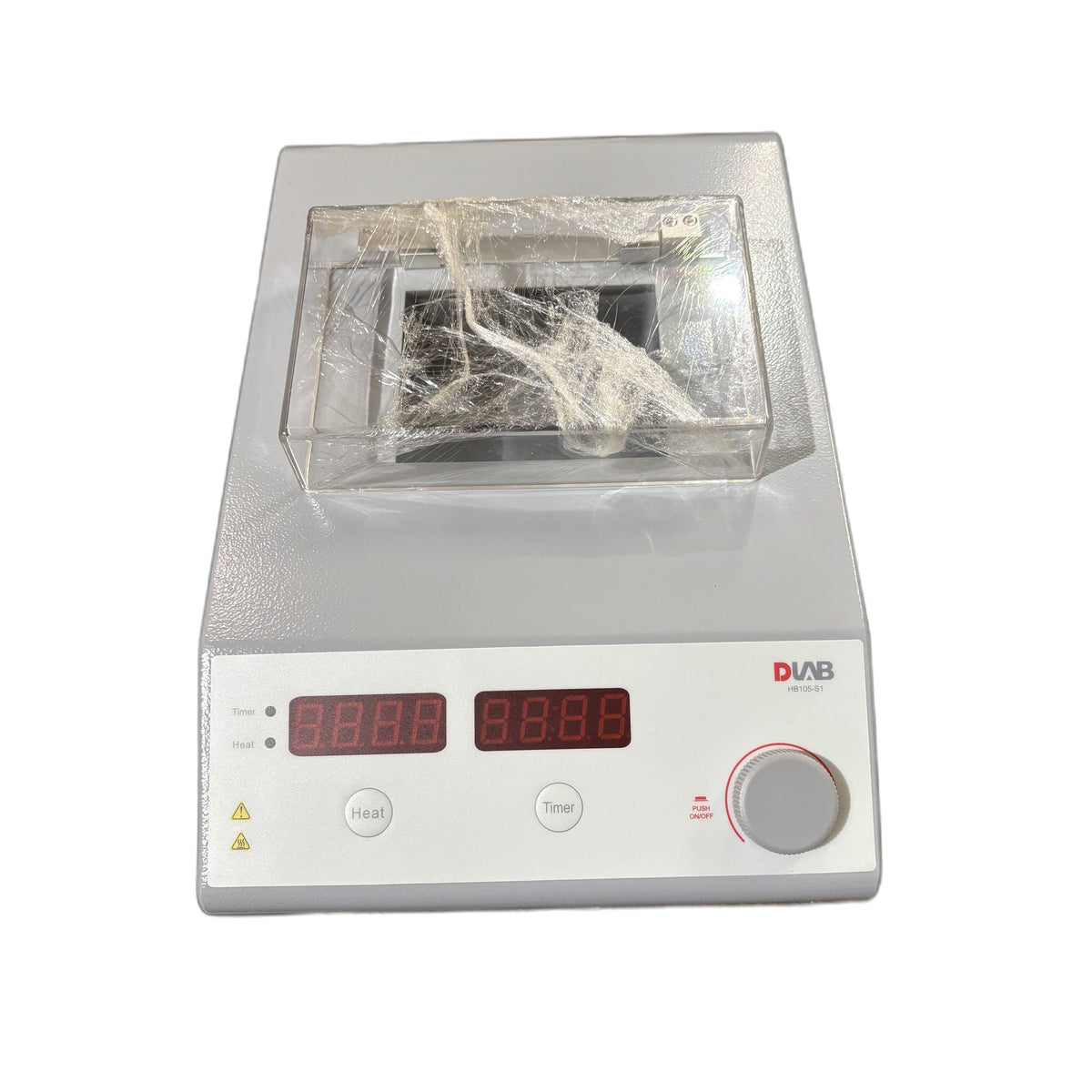

| DLAB HB105-S1, lid | 20 (5 × 4), 11 mm | 24-hour self-contained G. stearothermophilus | 56–60 °C; ±0.5 °C at 37 °C | LED display, written log | $599.00 | No data export, so the record is handwriting; a 25-pack runs as two batches |
| CliniEco 24-well dry block | 24, 8.8 mm bore | 24-hour self-contained | 56–60 °C; ±0.5 °C | LCD with USB export | $379.00 | No lid is listed for this configuration, so the block sits open to the room |
| CliniEco Rapid Reader, 4-well | 4 | Fluorescence ampoules at 20 minutes, 1 hour and 3 hours | Holds ampoules at 56–60 °C | On-device result plus USB | $1,499.00 | Only reads fluorescence ampoules, which cost more per test; cannot read a 24-hour colour-change vial |
None of the three is right for every clinic, and the differences that matter are not in the price column. A site testing daily on one sterilizer and reading by eye needs capacity and a stable block; a site whose day cannot absorb a 24-hour wait needs instrument-read turnaround and accepts a higher cost per test for it. What no site should do is buy the reader and stock 24-hour vials, or buy the dry block and find its fluorescence ampoules report nothing in it.
How do you use it correctly, step by step?
- Set the block to the temperature band the indicator is designed for (56–60 °C for steam self-contained vials) and let it stabilise before anything goes in.
- Load the test vial and one positive control from the same lot, in the same batch, so a run that fails can be told apart from a vial that never grew.
- Close the lid and keep it closed. An open block loses heat unevenly, and the vial nearest the edge is the one that reads false.
- Run the full readout period. The reference incubation for biological indicators is seven days (ISO 11138-1:2017, clause 7.3.2); a 24-hour readout is a reduced incubation time, and ISO 11138-8:2021 describes the method used to validate one.
- Read at the stated time, not earlier. A chain of negative results read at eighteen hours is not a chain of negative results.
- Record the run while the vials are still in front of you: date, sterilizer, cycle or load number, initials, indicator lot, block setpoint and result. The RCDSO standard of practice requires the daily operation of every sterilizer to be logged and that log kept for at least 10 years from the last entry — an incubator that produces no record produces no defence.
- Verify the block against a reference thermometer on the interval your written policy sets, and keep the calibration certificate with the log. The certificate is what turns a number on a display into a temperature you can defend.
- When an indicator turns positive, stop releasing loads, review the records back to the last negative, retest the same cycle immediately, and hold implant loads until the retest is negative.
Two references frame that list. CSA Z314:23 (CSA Group, 2023) is the Canadian reprocessing standard, and the validation expectations inside it are what a monitoring programme answers to. South of the border, ANSI/AAMI ST79:2017, reaffirmed in 2022 with amendments A1 to A4, guides most United States services: context, not the Canadian requirement, which in Ontario comes from provincial guidance and the RCDSO standard.
What goes wrong most often, and how do you catch it early?
| Failure mode | What you see | Root cause | How to catch it early |
|---|---|---|---|
| False negative from temperature drift | Every vial stays purple, week after week | Block running under setpoint, lid left off, or a loaded block that never recovers | Log the block temperature at start and at read; reference check on your stated interval |
| Warm start | Control vial grows, test vial does not, intermittently | Vials loaded before the block reached setpoint | Load only after setpoint is reached and stable |
| No positive control | All results look identical, all negative | Control skipped to save one vial per batch | One control per batch, recorded as a line in the log |
| Early read | Results declared the same morning they were loaded | Readout time not written down, shift change decides the read | Timer set, read time written, read at the full period |
| Vial and well mismatch | Vial sits loose, medium dries, no growth | Well diameter does not match the vial body | Check bore and vial diameters on arrival, before the first run |
| Indicator read by eye when it needs a reader | A colour change treated as a result | Fluorescence ampoule used without an instrument | Match indicator type to equipment at the point of ordering |
| Back-filled log | Neat, uniform entries written in one sitting | Record completed after the fact | Initial each entry at the time of the read |
The pattern is the same in every row: the equipment is usually capable and the process around it fails. Drift and warm starts are equipment faults a record would have surfaced; a missing control, an early read and a back-filled log are record failures no equipment repairs.
A chemical indicator cannot stand in for any of this. The indicators placed inside each package are classified under ISO 11140-1:2014, and even a Type 5 or Type 6 indicator that responds to every critical variable reports conditions, not kill. The biological indicator is the only element in the process that answers whether the spores died, which is why the block that incubates it carries the weight it does.
What does non-compliant equipment actually cost you?
Start with what the unit does. An incubator does not monitor sterilization; it creates the conditions under which a monitor's answer means something. A self-contained Geobacillus stearothermophilus vial is built to be held at 56–60 °C, and in that band any spore that survived the cycle grows and turns the medium. Take the band away and the vial shows the same purple either way.
That is what a functional shortfall actually produces: not an error message, but a negative result that proves nothing. The vial is fine, the indicator is fine, the record looks clean, and the load was never verified.
An auditor does not open by asking which brand sits on the bench. The question is whether you can show that the device behind your results produced valid ones: the temperature it held, the calibration behind that temperature, and an instruction for use saying the device is intended for culturing biological indicators.
When that chain breaks, the consequence is not a fine on the instrument. Your monitoring record is the release authority for every pack in the period it covers; if the device generating it cannot be defended, the record loses its evidentiary value, and the releases resting on it lose theirs with it, including loads that were in fact sterile.
Responsibility sits with the facility running the sterilizer, not with the seller or the distributor — a structural feature of how reprocessing is regulated, and the reason the next paragraph reads as it does.
So the purchase criterion is not the price line. It is whether you can document this device's compliance identity yourself, from your own file, without calling anyone.
| What you should be able to prove | How to check it | What it means if you cannot |
|---|---|---|
| Regulatory identity in Canada | Search the licence number in Health Canada's Medical Devices Active Licence Listing (MDALL), then match the number on the device label and instructions for use | You cannot answer why this is the device your monitoring programme rests on |
| Electrical safety for equipment sold in Canada | Certification mark on the nameplate: cTUVus, cUL, CSA or ULC | Insurance and fire-safety review exposure on equipment in a clinical space |
| Temperature calibration | Certificate with a date, a provider and an interval; inside the interval your policy sets | The result's validity is questioned, and the record chain breaks inside the retention period |
| Instructions for use covering the purpose | IFU names biological indicator culture and states the temperature range | Use outside the intended purpose, with the duty sitting entirely with the facility |
| A traceable importer | Who imported the unit into Canada, and under which establishment licence | No identifiable party to ask when documentation has to be reconstructed |
CliniEco Medical imports and distributes the units described here under Health Canada establishment licence MDEL #35334, which is a fact a buyer can verify rather than an argument that anyone else's equipment is deficient. The point of the table is not that one device passes and another fails; it is that the same five rows should come back with answers no matter whose name is on the box.
What should you verify before you buy?
- Ask for the certificate number, not the word certified, and check the nameplate mark matches it.
- Ask which indicators the unit is intended to culture, and what temperature range the instructions for use state.
- Ask whether a calibration certificate ships with the unit or is bought separately.
- Measure the well bore against the vial you buy, in millimetres, before the first order rather than after.
- Confirm the readout time your policy requires, and that the ordered equipment supports that indicator type.
- Ask who the Canadian importer is and for the establishment licence number behind the sale.
- Decide, before ordering, where the record lives: paper log, display reading, or exported file.
Sites buying for more than one location can route the order through wholesale and institutional pricing, and the rest of the sterilization monitoring range sits alongside the units described here.
If the answers line up, the shortlist narrows quickly. Where turnaround is the constraint, the 4-well fluorescence rapid reader reports 20-minute, 1-hour and 3-hour results on the instrument itself and keeps the result on the device. Where the day can absorb an overnight wait, the block is the simpler purchase, and the consumable that pairs with it either way is the 24-hour self-contained BI, 25-pack.
References
- ISO 11138-1:2017 — Biological indicators, general requirements — ISO, Geneva; §7.3.2 reference incubation (7 days); verified 2026-10-27
- ISO 11138-3:2017 — Biological indicators for moist heat sterilization — ISO, Geneva; §1 scope; verified 2026-10-27
- ISO 11138-8:2021 — Validation of a reduced incubation time — ISO, Geneva; §1.1; verified 2026-10-27
- ISO 11140-1:2014 — Chemical indicators for sterilization processes — ISO, Geneva; §1.1 scope; verified 2026-10-27
- ANSI/AAMI ST79:2017/(R)2022 — Comprehensive guide to steam sterilization — AAMI, Arlington VA; with Amendments A1 to A4:2020; verified 2026-10-27
- RCDSO Standard of Practice — Infection Prevention and Control in the Dental Office — Royal College of Dental Surgeons of Ontario; sterilizer log retention (10 years); verified 2026-10-27
Not sure how this applies to your own setup? Ask a sterilization compliance specialist — you’ll get a written answer specific to your equipment and province, with the regulation or standard cited.
Related Reading
- Biological Indicator Incubator: Complete Guide
- Incubator Well Count for a Canadian Clinic
- Why 56-60 °C Matters for a Valid BI Result
Frequently Asked Questions
Do I need a separate reader if I use a 24-hour incubator?
No. A 24-hour self-contained indicator is read by eye: the medium stays purple when the cycle passes and turns yellow when it fails. A fluorescence reader is only needed for 1-hour, 3-hour and 20-minute ampoules, which report their own result. Buying a reader while running 24-hour vials, or the reverse, is the most common mismatch we see in purchase orders.
What temperature should a biological indicator incubator hold?
Between 56 °C and 60 °C for self-contained Geobacillus stearothermophilus indicators used on steam cycles. ISO 11138-3:2017 sets the requirements those indicators are manufactured to, and the block holds the vials at that band so the spores can grow if any survived.
How many wells does a clinic actually need?
Enough for one day of tests plus a positive control in a single batch. Twenty wells (5 rows of 4) covers ten daily tests each paired with its control; twenty-four wells covers twelve. Because a 24-hour readout occupies the block for the whole day, capacity that does not fit means results split across two days rather than fitting into one.
Can I put any spore vial into a dry-block incubator?
Only vials whose body fits the well. The DLAB HB105-S1 wells are 11 mm, which takes a vial body of 8 mm and a cap of 10 mm; the CliniEco 24-well block is bored at 8.8 mm. A vial that rattles in the well loses thermal contact, which is the same failure as running the block cold. Check both diameters before the first run, not after a failed result.
How long must incubator and sterilization records be kept in Ontario?
The RCDSO standard of practice for infection prevention and control requires the daily operation of every sterilizer to be logged in a book kept for at least 10 years from the date of the last entry. Incubator records are part of that log: date, sterilizer, cycle or load number, initials, indicator lot and result.
What does daily monitoring cost with a dry-block incubator?
The block is a one-time purchase and the indicators are the recurring cost. On our list, a 24-hour self-contained indicator in a 25-pack works out to $2.80 per test, so one sterilizer tested on each day it is used runs to roughly $700 in indicators a year, against $599 once for the DLAB HB105-S1. Two sterilizers doubles the indicator line, not the equipment line.
CliniEco Medical holds Health Canada establishment licence MDEL #35334 as an importer of medical devices, at 255 Duncan Mill Road, Suite 512, Toronto, ON M3B 3H9. Product specifications last verified against our live catalogue on 2026-10-27. Reviewed quarterly. Last review: 2026-10-27.
