Marie Deschamps runs sterile processing for a five-clinic dental group outside Ottawa. Each morning she loads pouches, wraps trays, and starts three autoclaves before the first patient arrives. A few weeks ago an accreditation surveyor asked a deceptively simple question: which indicator class do you use, and why? Marie pointed at the strip in her pouches and the tape on her trays — and realized she could not name either. Most sterile processing teams face the same gap. The difference between a Class 4, Class 5, and Class 6 indicator is not a paperwork detail. It decides which loads you can release with confidence — and which deserve a biological challenge.
Biological indicators (24-hour, 25-pack)
Class 5 steam chemical integrators (100-pack)
Why the ISO 11140 classes exist
ISO 11140-1, the international standard for chemical indicators in sterilization, divides them into six classes. Each class answers a different question. Class 1 process indicators — the familiar autoclave tape, such as CliniEco Medical's sterilization indicator tape — confirm a pack was exposed to the process, nothing more. Every class above that adds information, and each suits a different monitoring job. Health Canada and CSA expect Canadian facilities to grasp this distinction when building a sterilization monitoring program.

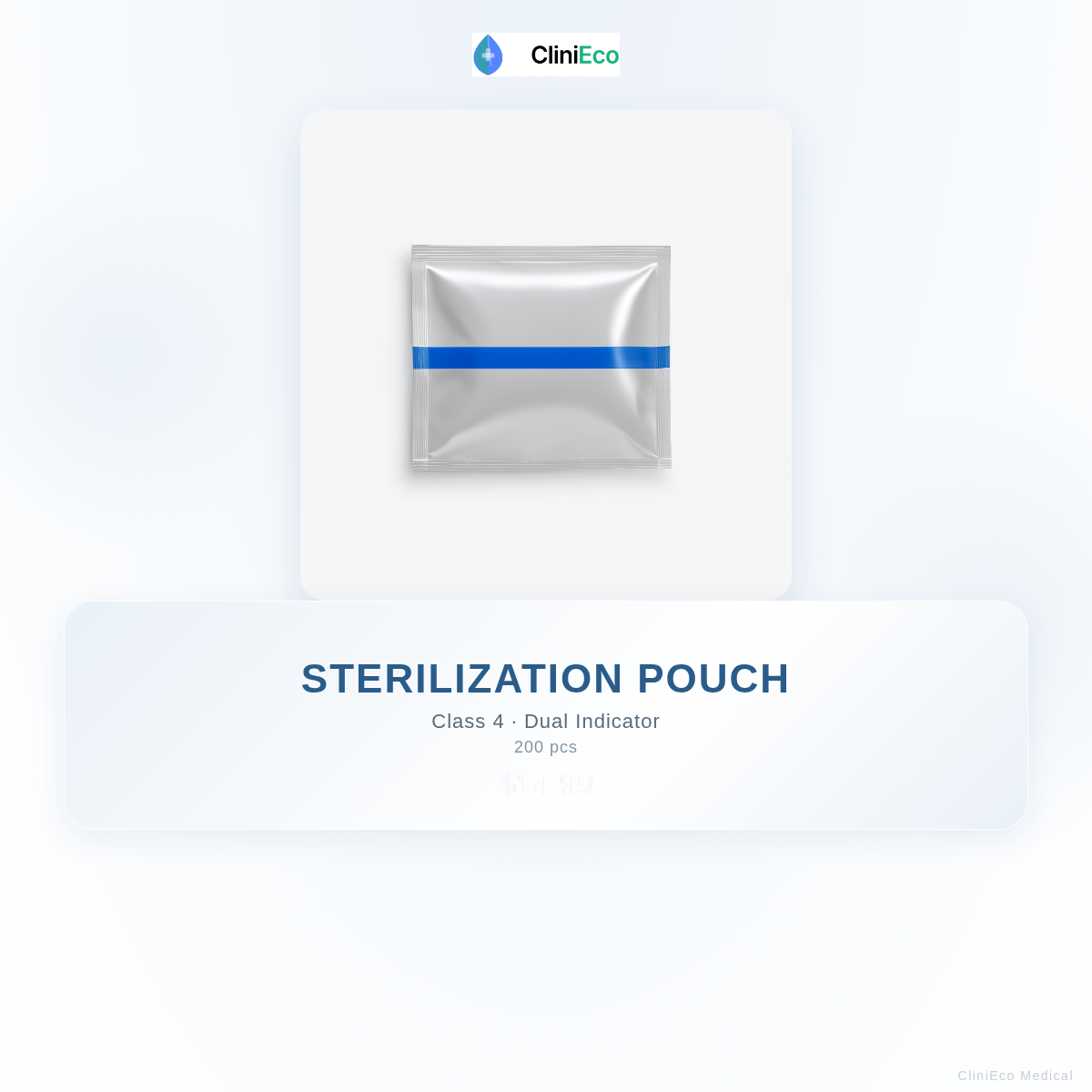

Class 4: multi-variable indicators for everyday packs
A Class 4 chemical indicator monitors two or more critical variables at once — steam exposure and time, for instance, or temperature and time. That is why the strip inside a peel pouch is usually a Class 4: it changes colour only when both variables cross their thresholds together, a far stronger signal than tape alone.
Use Class 4 inside every pouch and wrapped pack for routine monitoring. They are inexpensive, read instantly, and catch the most common failure modes before instruments reach a patient. Tape on the pack's outside handles Class 1 exposure checks; the strip inside does Class 4 work.
Class 5: integrating indicators that mimic biology
A Class 5 integrating indicator is a different animal. It responds to every critical variable of the process, and its performance is calibrated to match a biological indicator. In plain terms: if a Class 5 passes, conditions inside the pack were severe enough to kill resistant organisms such as Geobacillus stearothermophilus — the same organism biological indicators use.
That makes Class 5 the practical same-day choice for routine load release, and a strong addition to any load containing implants. When you need the reference standard itself, CliniEco Medical's 24-hour self-contained biological indicators give a definitive answer in 24 hours.
Class 6: emulating indicators for a specific cycle
A Class 6 emulating indicator is the most specific tool in the box. It is validated for one exact cycle — say, 134°C for 4 minutes in a pre-vacuum sterilizer — and it passes only when that precise combination of temperature and time is achieved. Change the cycle parameters and the indicator is meaningless. Reach for Class 6 when a validated cycle needs exact verification, and confirm the label's parameters match your sterilizer's cycle before relying on it.
The Class 1–6 reference table
| Class | What it monitors | When to use | Example |
|---|---|---|---|
| 1 | Single process variable — exposure to the process (steam or heat) | On every pack and load, externally | Autoclave tape |
| 2 | Air removal and steam penetration (Bowie-Dick) | Daily, in pre-vacuum sterilizers | Bowie-Dick test pack |
| 3 | A single critical variable (for example, temperature) | Specific single-variable checks | Temperature tube |
| 4 | Multiple critical variables (steam + time, temperature + time) | Inside pouches and wrapped packs, routine monitoring | Pouch chemical indicator |
| 5 | All critical variables; performance equivalent to a biological indicator | Routine load release, implants, same-day verification | Integrating indicator |
| 6 | Exact cycle parameters — a specific temperature and time | Cycle-specific verification of a validated cycle | Emulating indicator (e.g., 134°C / 4 min) |
When to run a biological indicator
Chemical indicators, even Class 5, are monitoring tools; the biological indicator is the verification tool. CSA Z314.8, the Canadian standard for decontamination of reusable medical devices, requires biological monitoring of each sterilizer at least weekly — and in every load containing implantable devices. Run one:
- In every load that contains implants or implantable devices
- At least weekly per sterilizer, per CSA Z314.8 — more often in high-volume settings
- After sterilizer installation, relocation, or major repair
- After a change in cycle parameters or a failed chemical indicator
- Whenever sterility assurance matters most and a load cannot be re-run
A 24-hour self-contained makes this practical: load the indicator with the morning run, read it the next morning, and hold critical loads until it confirms.
Building your indicator matrix
A workable rule of thumb: Class 4 inside every pouch and pack, Class 5 or a biological indicator for routine load release, Class 6 for a validated cycle that needs exact verification, and a biological indicator wherever implants are involved. Document the matrix, train the team on it, and the next surveyor conversation goes differently than Marie's.
Start with the consumables your team uses every day: CliniEco Medical's autoclave tape for Class 1 exposure checks and the CliniEco Medical biological indicator pack of 25 for weekly challenges.
Related reading: how SAL and the 10-6 standard connect to chemical indicator classes
explore our sterilization compliance hub for every industry that sterilizes.
Related reading
Monitoring your sterilizer? Pick the BI format that matches your workflow.
Ontario dental offices must run a biological indicator every day the sterilizer is used (RCDSO). Choose the readout speed that fits your schedule:
- 24-hour self-contained BIs — 25, 50 and 100-count packs for daily monitoring
- 1-, 3- and 20-minute rapid-readout BIs — same-day release when you cannot wait overnight
- 4-well fluorescence reader — incubates and reads rapid-readout BIs in one bench instrument
Shop 24-hour biological indicators See the 4-well rapid reader
CliniEco Medical · Health Canada MDEL #35334 · Request a wholesale quote
Downloadable matrix: the free sterilization log sheet asks for the indicator class used inside each pack, which is what turns a mixed shelf of Class 4, Class 5 and Class 6 products into a documented programme.
Running more than one class on the same sterilizer? The sterilization log generator lets you set the class per cycle type and prints the record to match.
Not sure how this applies to your own setup? Ask a sterilization compliance specialist — you’ll get a written answer specific to your equipment and province, with the regulation or standard cited.
Related reading
Free Printable: Indicator Class Reference Table
Print this page (Ctrl+P, or ⌘P on a Mac) or save it as a PDF. Post it where the work happens.
This mirrors the class reference table in this article.| # | Class | What it is | In use | Notes |
|---|---|---|---|---|
| 1 | Class 4 | Multi-variable indicator — for everyday packs | ||
| 2 | Class 5 | Integrating indicator — responds to all critical variables in one read | ||
| 3 | Class 6 | Emulating indicator — for a specific cycle | ||
| 4 | Any class | No chemical indicator replaces a biological indicator |
Where to Buy Sterilization Indicators and Spore Tests in Canada
CliniEco Medical supplies chemical indicators, integrating indicators and self-contained biological indicators to clinics, laboratories and care homes across Canada, shipped from Ontario.
| Type | What it confirms | Order |
|---|---|---|
| Class 5 integrating indicator | All critical parameters were met — used inside every pack | Class 5 Integrators, 100-Pack |
| Biological indicator (spore test) | The actual kill — the only test that proves sterilization | 24-Hour, 25-Pack |
| Bowie-Dick test pack | Air removal in pre-vacuum sterilizers only | Bowie-Dick, 6-Pack |
| Indicator tape | External process indicator — the load was processed | Autoclave Tape, 3-Roll Set |
| Not sure which applies? | Run one week in your own workflow first | 24-hour biological indicator, 25 per box |
Round Out Your Sterilization Setup
A biological indicator is one link in the chain — these are the pieces it works with:
- Sterilization roll — 50 m pre-cut sheets for larger instruments
- Constant-heat pouch sealer — 200 °C, 12 mm seal — for consistent pouch closures
Ontario and GTA orders ship free over $99; elsewhere in Canada over $199 ($15 flat below). Bulk and standing orders go through a wholesale account. Print a blank sterilization log sheet from our free generator, or book a sterilization compliance review.
Frequently Asked Questions
What is the difference between Class 4, Class 5 and Class 6 indicators?
Class 4 monitors two or more critical variables, such as temperature and time together. Class 5 is an integrating indicator calibrated to match a biological indicator. Class 6 is an emulating indicator defined by cycle-specific performance values. All three sit above Class 1 tape, which only shows that a pack was exposed to a process.
Can a Class 5 indicator replace a biological indicator?
A passing Class 5 indicator shows that conditions in the pack approached what a biological indicator needs to be inactivated, and it supports same-day release for many routine loads. It does not replace scheduled biological monitoring, which in Ontario dental practice is expected on each day a sterilizer is used.
Which indicator belongs inside a peel pouch?
A Class 4 multi-variable strip is the usual choice. It changes colour only when the critical variables cross their thresholds together, which is a stronger signal than external tape alone, and it costs little enough to use in every pouch.
Where does Class 6 fit into a monitoring programme?
Class 6 emulating indicators are cycle-specific: each is validated against a defined cycle and should not be used outside it. Facilities running several cycle types need the matching indicator for each, which is why many clinics keep Class 4 inside packs and use Class 5 for release decisions.
Download the indicator selection card (free, no email)
The reference table above explains what each class is. This card answers the two questions that come next: which indicator belongs where, and how often biological monitoring has to run. Print it or save it as a PDF, and pin it where the packs are made.
| Position on the pack | Use | What it verifies |
|---|---|---|
| Outside every pack — pouch, roll, wrapped tray or rigid container | Class 1 process indicator (tape) | That the pack was exposed to a sterilization process. It says nothing about sterility. |
| Inside every pack | Class 4 multi-variable indicator | That two or more critical variables, for example temperature and time, were met together. |
| Inside packs you release the same day | Class 5 integrating indicator | Calibrated against the biological result, so it supports same-day release. |
| Inside packs on one validated cycle | Class 6 emulating indicator | Cycle-specific: it must match the cycle it was validated for and should not be used on other cycles. |
| When | Requirement (Ontario dental practice, RCDSO) |
|---|---|
| Each day a sterilizer is used | One biological indicator plus a control, per sterilizer, for each type of cycle run that day. |
| Every load with implantable devices | A biological indicator is placed in the load. |
| Records | Keep the log for at least 10 years from the date of the last entry. |
MDEL #35334 · CliniEco Medical · clinieco.ca — general information for Ontario dental practice; not a certification and not a substitute for your regulator's requirements.
