Microbiological Monitoring for Labs and Food Manufacturing

Quick facts

• Microbiological monitoring answers a different question from sterility testing: it verifies that a control — a sterilization cycle, a sanitation step, an environment — is working, rather than testing a finished unit.
• Steam sterilization is monitored with biological indicators carrying Geobacillus stearothermophilus; dry heat and ethylene oxide processes use Bacillus atrophaeus.
• Biological indicator performance requirements are set by the ISO 11138 series: Part 1 for general requirements, Part 3 for moist heat, Part 8 for reduced incubation time methods.
• Food manufacturers under the Safe Food for Canadians Regulations build monitoring and verification into a preventive control plan; medical laboratories operate under quality and competence requirements that treat equipment monitoring as a controlled process.

Labs and food manufacturers buy microbiological monitoring for the same underlying reason: they need evidence that a control step did what it was supposed to do. A diagnostic laboratory needs to know that the autoclave used to decontaminate waste and prepare media reached sterilizing conditions. A food processor needs to know that a thermal process, a sanitation step or a controlled environment is being held within validated limits. In both settings the monitoring programme is only as strong as the weakest link — an indicator that is not appropriate for the process, an incubator that is not verified, or a record that cannot be reconstructed. This article sets out the monitoring chain as a purchasing and operating framework: what each method answers, which standards govern it, how equipment and consumables are selected, and what the resulting record has to contain.

What microbiological monitoring is, and what it is not

The single most common misunderstanding in purchasing conversations is the difference between monitoring, verification and finished-product testing. They are not interchangeable, and the standards that govern them are different.

• Monitoring confirms, at the time of use, that a process parameter or a control was present. A chemical indicator changing colour inside a pack is monitoring.
• Verification and validation demonstrate, with a defined method and a defined acceptance criterion, that a process reliably achieves the required reduction. A biological indicator with a known population and D-value is the classic tool, and it is used to validate the process and to verify it periodically.
• Finished-product testing examines a sample of product for the absence of viable organisms. In pharmaceuticals this is the role of the sterility test; in food it is end-product microbiological testing. It answers a question about a unit, not about the process.

The practical consequence for buyers is that these three functions are purchased from different parts of a catalogue and documented differently. A laboratory that buys a sterility test service has not validated its autoclave; a food plant that runs end-product counts has not demonstrated that its thermal process is under control. The monitoring layer — indicators, incubation, records — is where routine evidence is generated, and it is the layer that most often fails an audit for documentation rather than for science.

The monitoring chain, method by method

Table 1 — Monitoring methods, the question each one answers, and the basis for its use

Method	Question answered	Typical use	Standards or guidance
Biological indicator, moist heat	Did the sterilization cycle achieve the required lethality?	Steam sterilizers in labs, clinics and production support areas	ISO 11138-1 and -3
Biological indicator, dry heat or ethylene oxide	Did the process achieve the required lethality for this agent?	Dry heat ovens, EO sterilizers	ISO 11138-1 with the relevant part
Chemical indicator	Were the physical conditions present in the load?	Pack-level process monitoring	ISO 11140 series
Reduced incubation time method	Can a rapid result be relied upon compared with the reference incubation?	Facilities needing faster release	ISO 11138-8
Environmental monitoring	Is the controlled environment being held within limits?	Ready-to-eat food facilities, clean areas	Preventive control plan requirements
Finished-product testing	Is this unit free of viable organisms?	Pharmaceutical release, food product testing	Method-specific compendial or regulatory requirements

Two rows deserve a note. Reduced incubation time methods are not shortcuts around the standard; they are methods whose equivalence to the reference incubation has been established and documented, which is why ISO 11138-8 exists as a separate part. Environmental monitoring, in a food facility, is a preventive-control activity rather than a product test: it generates trend data that demonstrates the environment is under control, and it is designed around the hazards that matter for the product being made.

The organism matters as much as the format. Steam processes are monitored with Geobacillus stearothermophilus, incubated at 55–60 °C. Dry heat and ethylene oxide processes use Bacillus atrophaeus. A biological indicator is characterised by its population, its D-value and, where relevant, its z-value; those are the numbers that let a facility demonstrate that the indicator is appropriate for the cycle being monitored, and they are the numbers a supplier should be able to supply in writing.

Food manufacturing: monitoring inside a preventive control plan

For a food business, monitoring is not optional good practice — it is a documented element of the preventive control plan required under the Safe Food for Canadians Regulations. The Canadian Food Inspection Agency publishes the structure: preventive controls and preventive control plans, the regulatory requirements that define what a plan must contain, and guidance on verification procedures that explains how a business demonstrates its controls continue to work.

Three practical points follow for the monitoring programme.

Verification is scheduled, not improvised. Verification procedures are the activities that confirm monitoring is working and controls remain effective. In practice this means a written schedule, a defined method, defined acceptance criteria, and a record of the outcome. A biological indicator used to verify a sterilization step belongs to this category.

The environment has its own programme. Ready-to-eat products carry hazards that a process step alone may not control, which is why environmental monitoring programmes focus on the areas where contamination can be introduced after a kill step. CFIA publishes microbiological guidance and reference material that supports the design of such programmes, and traceability requirements that make lot-level records a regulatory matter rather than an internal preference.

Records are part of the product. When a food business cannot reconstruct what was monitored, with which method, on which date and with what result, the monitoring effectively did not happen. The food regulations set out record-keeping obligations under the Safe Food for Canadians Act and Regulations; a processing facility that buys indicators without a record structure for the results is buying half a system. Our longer treatment of sterilization verification in food and industrial settings walks through the same chain from the indicator side.

Diagnostic and QC laboratories: monitoring a controlled process

A diagnostic laboratory uses monitoring in two directions. Inward, it monitors the equipment its own work depends on — autoclaves used for media preparation and decontamination, incubators, water systems. Outward, it applies the same logic to the samples and materials it handles, where the integrity of a specimen depends on processes being controlled and documented.

Quality and competence requirements for medical laboratories treat equipment as a controlled asset: it is qualified, monitored, maintained and recorded. That has a direct purchasing consequence, because the laboratory must be able to show the monitoring method, the acceptance criteria and the result. Sterilization monitoring consumables for this setting include biological indicators for steam cycles, chemical indicators for load monitoring, and the incubators used to develop the indicators. A companion checklist covering QC laboratory sterility testing consumables in Canada covers the consumable side in more detail.

Two distinctions matter for laboratories. First, a sterility test on a prepared product is not a substitute for validating the sterilization process; the compendial sterility test and the process validation sit at different points in the quality system. Second, biological indicators are living systems with defined performance characteristics; their storage, handling and incubation conditions are part of the method, not an operational detail. Where a laboratory is working with biological agents, the Public Health Agency of Canada's biosafety guidance sets the containment frame, and CLSI publishes microbiology standards that many Canadian laboratories reference in their procedures.

Selecting the equipment and consumables

Selection decisions in this space reduce to four variables: the process being monitored, the indicator format that fits the workflow, the incubation capability, and the record the facility needs to produce.

Table 2 — Selection variables and what to specify

Variable	What to decide	Why it matters	Example specification
Process match	Which sterilant or thermal process is being monitored	Determines the challenge organism and the applicable ISO 11138 part	Steam — G. stearothermophilus; dry heat or EO — B. atrophaeus
Indicator format	Self-contained unit, strip, suspension or liquid system	Determines handling steps, contamination risk and record format	Self-contained unit for bench workflows; suspension where a defined inoculum is required
Incubation	Temperature accuracy and capacity to match indicator volume	An incubator outside the specified range invalidates the result	Dry-block incubator held at the temperature specified for the indicator
Readout time	Reference incubation or validated reduced incubation time	Affects release timing and staffing	Rapid readout where the method is validated under ISO 11138-8
Records	What the result record must contain	Determines whether the monitoring survives an audit	Date, process, indicator lot, incubator identity, result, reviewer

Incubator selection is worth its own note, because it is the equipment purchase most often made on capacity alone. A dry-block incubator holds a defined number of wells at a defined temperature; the temperature tolerance and the uniformity across wells are the specification that matters, not the well count. Facilities comparing models across suppliers can use the dry-block incubator comparison for spore testing as a starting framework, and the sterilization monitoring collection groups the indicator, incubator and reader options in one place. Readers and incubators are also covered by the sterilization compliance hub, which links the standards and the equipment categories.

Where CliniEco Medical fits

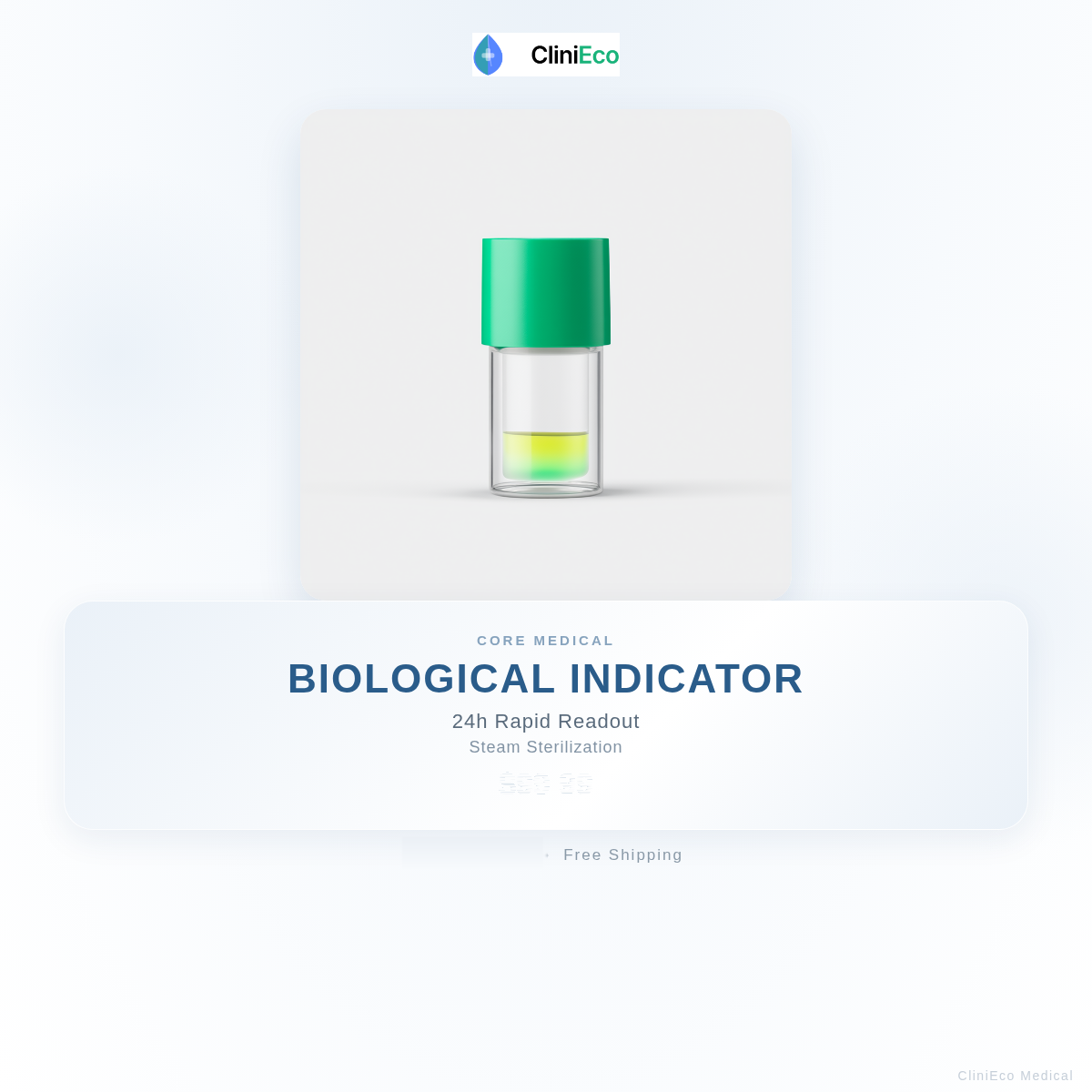

CliniEco Medical supplies biological indicators, incubators and monitoring consumables to Canadian clinics, laboratories, long-term care homes and food processing facilities, and holds a Medical Device Establishment Licence (MDEL #35334). For a monitoring programme, the practical value of a single source is that the indicator, the incubation equipment and the lot-level documents arrive as one chain: the 24-hour self-contained biological indicators, the precision dry-block incubator and the four-well fluorescence reader. Facilities that want to evaluate the monitoring chain before committing to volume can begin with the five-pack biological indicator trial or the wholesale and bulk quote channel.

The record: what a defensible monitoring file contains

Table 3 — Record contents by setting

Setting	Record	Minimum contents	Retention approach
Food manufacturing	Verification record	Date, control being verified, method, indicator or test lot, result, corrective action, reviewer	Follow the record-keeping requirements attached to the preventive control plan
Food manufacturing	Environmental monitoring record	Sampling site, date, method, result, trend against limits	Same as above, with trend review included
Diagnostic laboratory	Equipment monitoring record	Equipment identity, cycle or run, indicator lot, incubation conditions, result, reviewer	Follow the laboratory's quality system retention schedule
Any setting	Supplier documentation	Indicator certificate or lot release, storage conditions, expiry	Keep with the lot record for the audit window

Two design principles make these records usable. The first is that the indicator lot number must appear on the monitoring record — an indicator result that cannot be traced to a lot cannot be defended if the lot is later questioned. The second is that the incubator must be identifiable on the record, because a result from an unverified incubator is not evidence. Neither principle costs money to implement; both require the record form to be designed before the first run.

Related reading  ·  RCDSO-compliant sterilization records

Continue with sterilization verification in food and industrial settings, QC laboratory sterility testing consumables in Canada and dry-block incubator comparison for spore testing.

Frequently Asked Questions

What is the difference between a biological indicator and a chemical indicator?

A biological indicator contains viable organisms with a defined resistance and demonstrates whether a process achieved the required lethality. A chemical indicator changes in response to physical conditions such as temperature, steam or time and shows whether those conditions were present. They answer different questions and both have a place in a monitoring programme.

Which organism is used in a steam sterilization biological indicator?

Steam processes are monitored with Geobacillus stearothermophilus, typically incubated at 55–60 °C. Dry heat and ethylene oxide processes use Bacillus atrophaeus. The indicator's population and D-value should be stated by the supplier.

Do food manufacturers in Canada have to run microbiological monitoring?

Businesses subject to the Safe Food for Canadians Regulations build preventive controls and a preventive control plan, which includes monitoring and verification activities. Environmental monitoring is particularly relevant for ready-to-eat products, where contamination can be introduced after a kill step. CFIA publishes the requirements and verification guidance.

Is environmental monitoring the same as end-product testing?

No. Environmental monitoring looks at the conditions in the facility — surfaces, air, equipment — and generates trend data showing the environment is under control. End-product testing examines finished units for the presence of organisms. They support different conclusions and are documented separately.

How long should sterilization monitoring records be kept?

Retention depends on the instrument that applies to the facility. Food businesses follow the record-keeping requirements attached to their preventive control plan; laboratories follow their quality system schedule; in Ontario dental settings, sterilization records are retained for at least ten years from the last entry. Where several instruments apply, the strictest period is the practical standard.

Can a rapid-readout biological indicator replace the reference incubation time?

Only where the reduced incubation time method has been validated and documented as equivalent to the reference incubation, which is the purpose of ISO 11138-8. A rapid result is a method claim that must be supported by the indicator manufacturer's validation, not an operational shortcut.

What should a laboratory check before buying an incubator for biological indicators?

Check the specified incubation temperature for the indicator being used, the temperature tolerance, the uniformity across wells, capacity against your routine volume, and whether the unit produces a record of the run. Temperature holds the validity of the result; capacity only affects convenience.

Sources

• ISO 11138-1:2017 — Sterilization of health care products, biological indicators, general requirements: iso.org
• ISO 11138-3:2017 — Biological indicators for moist heat sterilization processes: iso.org
• ISO 11138-8:2021 — Reduced incubation time method for biological indicators: iso.org
• ISO 17665 — Moist heat sterilization of health care products: iso.org
• ISO/TC 198 — Sterilization of health care products: iso.org
• CFIA — Preventive controls and preventive control plans: inspection.canada.ca
• CFIA — Preventive control plan regulatory requirements: inspection.canada.ca
• CFIA — Verification procedures: inspection.canada.ca
• CFIA — Food chemistry and microbiology: inspection.canada.ca
• CFIA — Traceability: inspection.canada.ca
• Safe Food for Canadians Regulations (SOR/2018-108): laws-lois.justice.gc.ca
• Public Health Agency of Canada — Canadian biosafety standards and guidelines: canada.ca
• CLSI — Clinical and Laboratory Standards Institute: clsi.org
• United States Pharmacopeia — General Chapter 71, Sterility Tests: doi.usp.org
• FDA — 21 CFR 211.113, control of microbiological contamination: ecfr.gov
• FDA — 21 CFR Part 113, thermally processed low-acid foods packaged in hermetically sealed containers: ecfr.gov
• Codex Alimentarius — General Principles of Food Hygiene (CXC 1-1969): fao.org
• National Center for Biotechnology Information — spore production for Geobacillus stearothermophilus biological indicators: ncbi.nlm.nih.gov
• Health Canada — Medical devices: canada.ca
