Quick facts
- A water bath is electrical laboratory equipment, and that puts it in scope of a safety standard. IEC 61010-1:2010 specifies general safety requirements for electrical test and measurement equipment, electrical industrial process-control equipment and electrical laboratory equipment, wherever they are intended to be used.
- The current edition replaced the previous one. The same document states that the third edition cancels and replaces the second edition published in 2001, so an older bath is being judged against an edition that no longer applies.
- The two countries adopt the same parent standard under different national marks. Canada publishes the adoption in the CSA C22.2 series; the United States publishes it in the UL 61010 series.
- The reservoir is the real risk. A water bath is a warm, wet, open vessel, and the contamination question is about the water and the aerosol, not the electronics.
- Temperature is a measurement claim. A bath set to a temperature is asserting a temperature, and the assertion needs a reference to be meaningful.
- The bath is a consumables line as well. Water treatment, cleaning and the vessels that go into it are what the bench actually reorders.
A water bath is the least glamorous instrument in a laboratory and one of the few that combines water, heat and mains electricity in an open vessel. That combination is why the product sits inside a published safety standard, and why the reservoir needs a routine of its own. This article covers the standard and its editions, the national adoptions and approval marks, the water control question, temperature verification, and how a laboratory should buy and maintain the unit.
Which safety standard applies to a water bath?
The unit is in scope because of what it is rather than because of what it is used for, and the standard says so in its own words.
IEC 61010-1:2010 specifies general safety requirements for electrical test and measurement equipment, electrical industrial process-control equipment and electrical laboratory equipment, together with their accessories, wherever they are intended to be used. The document also states that the third edition cancels and replaces the second edition published in 2001 and constitutes a technical revision, and it records that the scope was expanded so that both professional and non-professional versions of these products fall within it, and that the requirements for testing and measuring circuits were moved into a separate particular standard.
For a laboratory, three consequences follow from reading that scope:
- A benchtop bath is in scope. It is electrical laboratory equipment with accessories, which is exactly the description in the standard.
- The edition date on the file matters. A compliance file built against the 2001 edition describes a document that has been replaced.
- The particular standards matter. Where the general standard moved subject matter into a particular standard, the file has to name the particular standard as well.
How do the two countries adopt the standard?
Neither country writes its own safety requirements for this equipment family; both adopt the international document under a national designation, and the difference shows up on the label.
| Item | Canada | United States |
|---|---|---|
| Parent standard | IEC 61010-1 | IEC 61010-1 |
| National adoption | Published in the CSA C22.2 series | Published in the UL 61010 series |
| What the buyer looks for on the unit | A recognised approval mark for the Canadian market | A recognised listing mark for the United States market |
| Who cares about the mark beyond the laboratory | The provincial electrical safety authority | The local electrical authority and the insurer |
| Laboratory oversight above that layer | Provincial licensing and ISO 15189 accreditation | Federal certification under 42 CFR part 493 |
| Practical consequence | A unit marked for one market is not automatically marked for the other | Same, in the other direction |
In Ontario, electrical equipment offered for sale or used in a workplace is expected to carry an approval mark recognised within the province, and the provincial electrical safety authority is the body a practice deals with when that question arises. The Electrical Safety Authority publishes the mark recognition material a clinic or laboratory needs. The point for a buyer is not the paperwork for its own sake: an unapproved unit in a wet environment is both a safety question and, in an incident, an insurance question.
Why is the water the harder problem?
Because a warm open reservoir is a growth environment, and the routine that keeps it under control is not the same as the routine that keeps the electronics safe.
- Fill water is a decision. What goes in determines what grows, and topping up a reservoir without a defined practice is how a bath becomes a culture vessel.
- Cleaning is scheduled, not reactive. A drain, clean and refill interval written into the equipment record is what turns the practice into evidence.
- Aerosol is the exposure route. A bath that is agitated or aerated produces droplets, which is why the placement of the unit and the use of covers matter.
- The vessels that go in are consumable. Containers, racks and covers are replaced on use, and their condition affects the temperature the sample sees.
The public health side of this question is documented at the provincial level. Public Health Ontario publishes environmental and occupational health material, including water-related guidance, and it is the reference a Canadian laboratory is most likely to be asked to follow. The parallel United States material sits with the federal and state public health agencies.
How is the temperature claim verified?
A bath is bought to hold a temperature, and holding a temperature is a measurement claim like any other.
- There is a reference. A calibrated reference thermometer is what the bath setting is compared against, and the comparison is what the record contains.
- There is a spread. The interesting figure is not the set point but the variation across the working volume, because a sample at the edge of a bath does not see the same temperature as a sample in the centre.
- There is an interval. Verification on a schedule, rather than after a complaint, is what makes the record useful.
- There is a consequence. A laboratory accredited against ISO 15189:2022 documents equipment control inside its quality management system, while a laboratory working inside the United States certification framework documents the same item against the requirements of 42 CFR part 493.
| Unit | What holds the temperature | What the record should carry |
|---|---|---|
| Water bath | Circulated water in an open reservoir | Fill water, cleaning interval, verification result |
| Bead bath | Heated beads with no free water | Bead condition and verification result |
| Dry block | A heated block with sample wells | Block temperature mapping and verification result |
| Incubator | A controlled air chamber | Chamber temperature and load pattern |
The table is also a replacement decision. Where the water is the part that needs the routine, a unit that removes the water removes the routine with it, and that is a legitimate reason to change the equipment rather than add a control step.
That contrast is the honest way to describe the difference between the two countries on this topic. The equipment standard is shared. What differs is the framework the records live in, and therefore who a laboratory has to be able to show the record to.
Which consumables does a bath bench go through?
The bench consumes more than the bath, and the supporting lines are what keep it usable.
- Containers and racks. The vessels that hold samples in the bath, in the sizes the method uses.
- Temperature monitoring supplies. The reference thermometer and, where used, the logging accessories behind it.
- Cleaning supplies. Detergent and brushes or wipes for the reservoir and the surrounding bench.
- Water treatment. Whatever the practice's water control decision requires, listed in the equipment record.
- Records. The equipment log, the cleaning interval and the verification result.

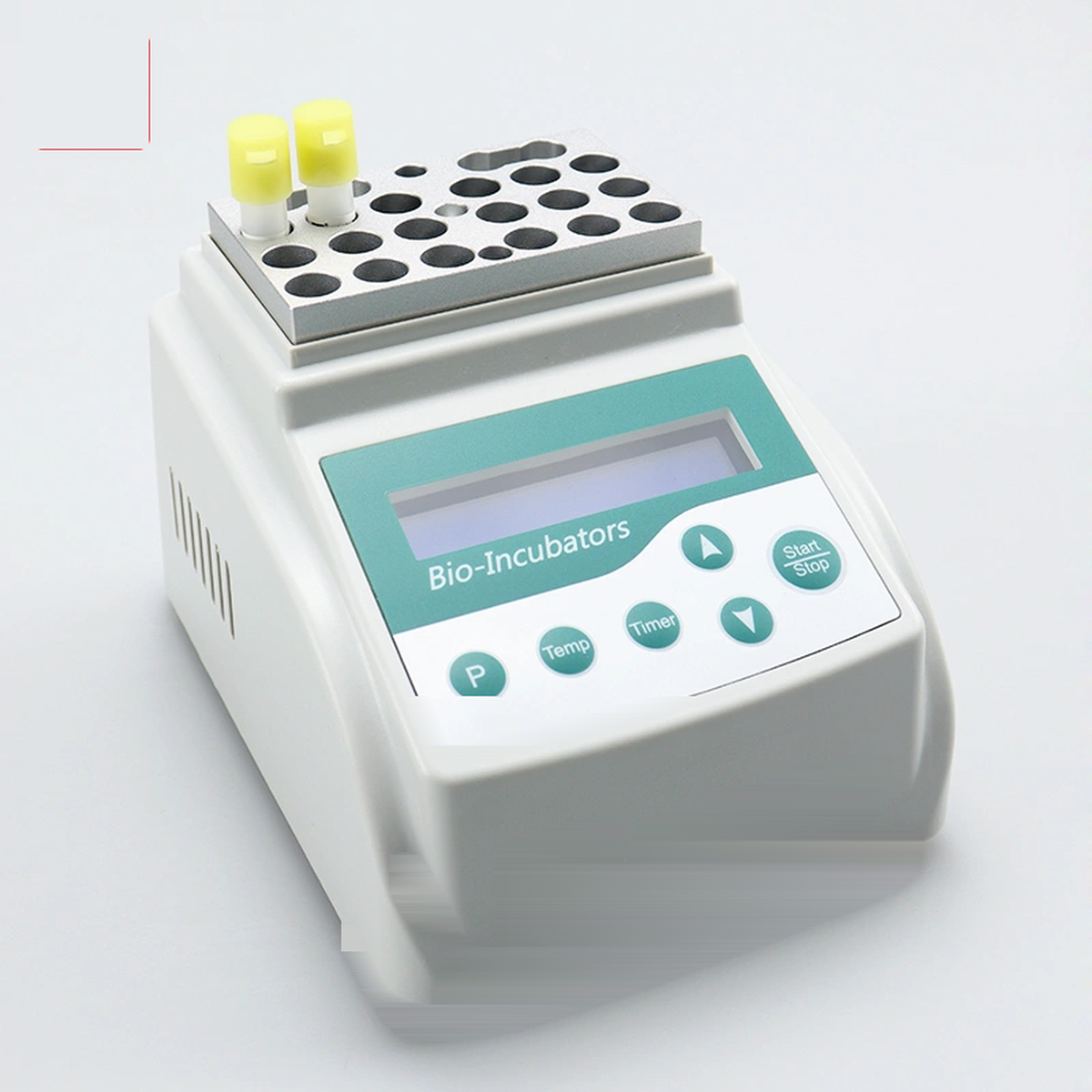

Where a bench wants the temperature without the water, the dry block incubator is the unit that replaces the water bath for a defined temperature step, and it is bought through the same equipment and consumables route.
Laboratories that buy these lines at case level can use the wholesale ordering page for account setup and case pricing, and the B2B wholesale collection for the institutional lines. Laboratories that also run a steam sterilizer can start with the biological indicator 5-pack trial and read the sterilization monitoring collection.
Sources
- IEC 61010-1:2010, safety requirements for electrical equipment for measurement, control and laboratory use
- ISO 15189:2022, requirements for quality and competence in medical laboratories
- ISO 3585:1998, borosilicate glass 3.3
- ISO 3819:2015, laboratory glassware, beakers
- ISO 4788:2005, graduated measuring cylinders
- Electrical Safety Authority, Ontario
- Public Health Ontario, environmental and occupational health
- Public Health Ontario, test information index
- 42 CFR 493.5, categories of tests by complexity
- 42 CFR 493.1, basis and scope
- Health Canada, medical devices
- Medical Devices Regulations, SOR/98-282, full text
- Clinical and Laboratory Standards Institute
- World Health Organization, laboratory biosafety manual
- CCOHS, needlestick injuries
- CCOHS, emergency showers and eyewash facilities
- openFDA device classification database
- Public Health Ontario, infectious diseases
- ISO 8037-1:1986, microscope slides, dimensions and optical properties
- ISO 835-1:1981, graduated pipettes
Related reading
- Centrifuge tube volume graduations in Canada
- Paraffin wax in Canada vs the US: histology grades
- Sterile specimen container storage and handling in Canada
- Centrifuge tubes 15 mL vs 50 mL: stocking a clinic laboratory
CliniEco Medical supplies laboratory and clinic consumables of the kind described in this article. Health Canada MDEL #35334. This article is written for laboratory, procurement and clinic professionals and is not clinical guidance; equipment selection, temperature verification intervals and water control practices belong to the laboratory director under the laboratory's own quality system.
Frequently Asked Questions
Which safety standard covers a laboratory water bath?
IEC 61010-1:2010 specifies general safety requirements for electrical test and measurement equipment, electrical industrial process-control equipment and electrical laboratory equipment and their accessories, wherever they are intended to be used. A benchtop water bath falls inside that description.
Is the older edition of the standard still relevant?
It should not be relied on. The third edition states that it cancels and replaces the second edition published in 2001 and constitutes a technical revision, and it also records an expansion of scope so that both professional and non-professional versions of these products are covered.
What mark should a Canadian laboratory look for?
A recognised approval mark for the Canadian market, which is the adoption of the international standard published in the CSA C22.2 series. In Ontario the provincial electrical safety authority publishes the mark recognition material, and an unapproved unit in a wet environment is both a safety and an insurance question.
Why does the reservoir need its own routine?
Because it is a warm, open, wet environment. Fill water, a scheduled drain and clean interval, a cover where agitation produces aerosol, and a record of the interval are what keep the reservoir from becoming a growth environment rather than a controlled part of the method.
How should the temperature claim be verified?
Against a calibrated reference thermometer, on a schedule, with the variation across the working volume considered rather than only the set point. A sample at the edge of a bath does not see the same temperature as a sample in the centre, and the record should reflect what the bench actually relies on.
Does the record look different in the two countries?
The equipment standard is shared, but the framework the record lives in differs. A laboratory assessed against ISO 15189:2022 places equipment control inside its quality management system, while a laboratory working inside the United States certification framework documents the same item against 42 CFR part 493.
