Hollow Instruments and Lumens in a Benchtop Autoclave: What a Clinic Can Process
A benchtop autoclave is sold on chamber size and cycle time, but what it can actually process is decided by air. Every load has to get air out before steam can get in, and nothing holds air more stubbornly than a narrow tube with one closed end.
That is why the hollow question matters more than it looks. A clinic that buys a sterilizer for its chamber volume and then adds suction tips, cannulae and hollow-handled instruments has quietly moved outside the load the machine was validated for, and the evidence of that move shows up in indicators that read light and packs that come out wet.
What counts as a hollow item in a clinic load?
The category covers more than tubes. Suction tips, aspiration cannulae, hollow instrument handles, suction connectors, biopsy punches with a central channel, and any device with an internal cavity that opens to the outside. A hinged instrument with a box lock is not a hollow load in the same sense, but the narrow gap inside the joint behaves like a small dead-end cavity and dries the same way.
The distinction that matters for processing is how air escapes. A tube open at both ends lets air be pushed out through the far end. A tube open at one end, or a cavity with a single opening, requires the air to come back out the way the steam came in, which is a much slower exchange. A cavity with a closed stopcock is a dead end in the literal sense.
Why does a lumen defeat a short cycle?
Air removal in a benchtop sterilizer relies on a vacuum pulse, a steam flush, or a combination of both, and each pulse has a fixed duration. In a wide chamber with flat instruments, one or two pulses displace most of the air. Inside a long, narrow tube, the same pulse moves far less air because resistance rises steeply as diameter falls.
The second problem is condensation. Steam that reaches a cold metal lumen condenses on the inner wall, and the condensate film slows further steam travel while it heats the metal. In a small tube the ratio of wall area to internal volume is high, so this effect is stronger than anywhere else in the load. The result is a small volume at the far end that is cooler, wetter and later than the rest of the chamber.
What does the sterilizer manual have to state?
A benchtop sterilizer's instructions for use should state the load types it has been designed for, including any hollow-load capability, and the arrangement that supports it. Where a manual defines a maximum tube length and internal diameter, that number is the site's limit, not a suggestion.
ISO 17665-1 describes the requirements for moist heat sterilization and the need to establish and routinely control the process for the load as presented. Read together with the manufacturer's instructions, it produces a simple rule for a clinic: if the load is outside what the machine's instructions describe, the site has to either change the load or change the machine.
Where the manual is silent, do not infer capability from the label on the front. Ask the supplier in writing and keep the answer with the sterilizer documents.
How should a lumen be cleaned before it is sterilized?
Cleaning is the step that decides whether the cycle matters. Flush the channel with detergent solution, brush it with a brush sized to the lumen, flush again, rinse, and dry with compressed air before packaging. A tube that will not pass a brush of the correct diameter is a tube that cannot be reliably cleaned.
Mechanical cleaning supports the manual steps but does not replace them. A 6 L dual-frequency benchtop ultrasonic cleaner will drive cavitation into an open lumen when the item is oriented so the channel is not horizontal and the solution can move through it, but the brush and flush are still required for soil that cavitation cannot reach.
How should a hollow load be arranged?
Orientation is the control that costs nothing. Tubes should be arranged so that they drain and so that air can leave: on an angle, with open ends unobstructed, and not coiled against each other. Trays with a mesh base allow condensate to fall away rather than pool around the item.
Packaging has to support the same logic. A lumen that is sealed inside a tight pouch with no room for air movement is harder to process than the same lumen on an open tray, which is one reason large hollow sets are wrapped rather than pouched. The 76 mm by 50 m sterilization roll exists for the sets that are too long or too bulky for any pouch, and the indicator tape closes the wrap with an external signal on the outside.
For pouched items, the Class 4 self-sealing pouch range with 16 size variants keeps a hollow item from being crushed into a pouch that is too small, which is the most common packaging cause of a failed hollow load. Consumables for this part of the room are grouped in the sterilization monitoring range.
Which indicators belong in a hollow load?

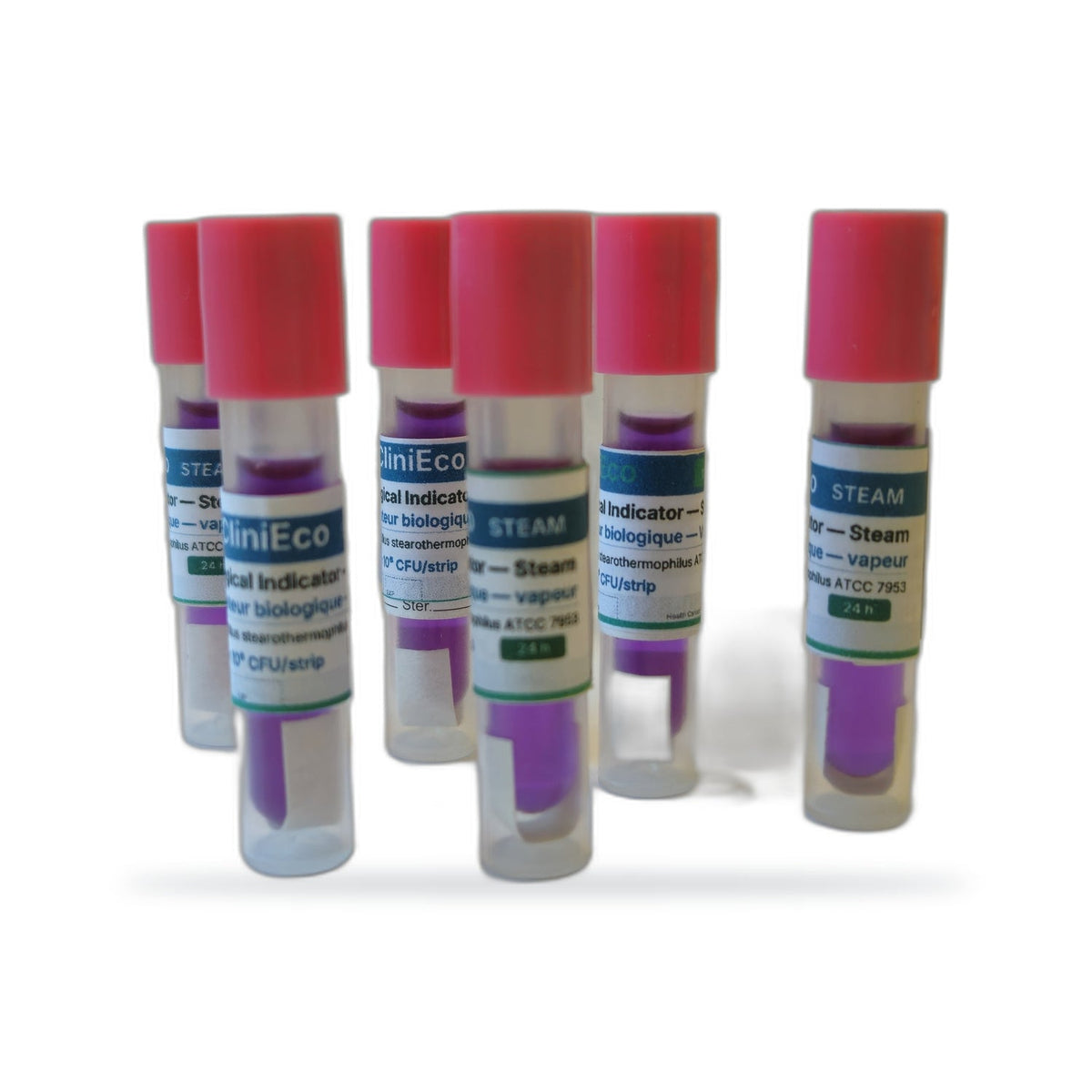

Three signals are in play. The external indicator on the packaging shows the pack saw a cycle. The internal chemical indicator shows conditions were reached where it was placed, and for a hollow load it belongs inside or beside the lumen. The biological indicator, whose requirements are set out in ISO 11138-1, shows the cycle can kill spores under the conditions tested.
The Bowie-Dick test described by ISO 11140-3 is a separate check for air removal and steam penetration in the chamber, and it is run without a load. It is not evidence that a specific lumen was processed; that is why sites that handle hollow loads tend to use a process challenge device inside a representative pack as well as the routine monitoring.
| Item type | Air path | What the site has to confirm |
|---|---|---|
| Suction tip, open bore | Open at both ends | Inside the sterilizer's stated tube limit, no cap fitted |
| Cannula with a valve | Single opening, valve in line | Valve open, lumen brushed and flushed |
| Hollow instrument handle | Single-ended cavity | Manufacturer instructions allow the cycle |
| Suction tubing | Long, narrow, flexible | Length within the validated limit, arranged to drain |
| Handpiece | Device specific | Device instructions govern cycle and lubrication |
What are the traps that catch clinics?
The first is the closed stopcock. A suction tip with a valve left closed is a dead-end cavity, and it will behave differently from the same tip with the valve open. The second is the cap that someone fits to keep the inside clean. The third is horizontal coiling, which turns an open tube into a trap.
The fourth is the instrument that should never have been in-house. Some devices carry manufacturer instructions that call for a specific sterilization process, a particular cycle class or a validated cleaning method the clinic cannot reproduce. In those cases the honest answer is single-use or an outsourced reprocessing arrangement, and the decision belongs in the risk assessment rather than in a busy afternoon.
What belongs on the load record?
Record the items, the orientation, the indicator type and placement, the cycle selected, the biological indicator result and the release decision. Add the sterilizer identifier, because a site with two machines needs to know which one produced the load if a trend appears.
ISO 14971 frames this as controlling a process hazard through defined controls, and ISO 13485 frames the same discipline as documented process control. Repackaged for a clinic, both come down to the same sentence: the record has to show that the load you ran is the load you validated. Reproducibility under ISO 11737-2's sterility testing logic depends on the same assumption, which is why the load description is part of the evidence rather than an administrative extra.
References
- ISO 17665-1:2006 — Moist heat sterilization, Part 1 (checked 22 October 2026)
- ISO 11140-1:2014 — Chemical indicators, Part 1: general requirements (checked 22 October 2026)
- ISO 11140-3:2007 — Chemical indicators, Part 3: Class 2 indicators for Bowie-Dick (checked 22 October 2026)
- ISO 11138-1:2017 — Biological indicators, Part 1: general requirements (checked 22 October 2026)
- ISO 15882:2008 — Chemical indicators, guidance for selection, use and interpretation (checked 22 October 2026)
- ISO 11607-1:2019 — Packaging for terminally sterilized medical devices, Part 1 (checked 22 October 2026)
- ISO 11607-2:2019 — Packaging, Part 2: validation of forming, sealing and assembly (checked 22 October 2026)
- ISO 11737-2:2019 — Microbiological methods, Part 2: sterility testing (checked 22 October 2026)
- ISO 14971:2019 — Application of risk management to medical devices (checked 22 October 2026)
- ISO 13485:2016 — Medical devices, quality management systems (checked 22 October 2026)
- ISO 15223-1:2021 — Symbols to be used with medical device labels (checked 22 October 2026)
- ISO 7153-1:2016 — Surgical instruments, metallic materials, Part 1 (checked 22 October 2026)
- ANSI/AAMI ST79:2017/(R)2022 — Comprehensive guide to steam sterilization (checked 22 October 2026)
- Infection Prevention and Control (checked 22 October 2026)
- Infection Prevention and Control (checked 22 October 2026)
Write the limit down before a surveyor asks: download the printable hollow-load assessment and SOP template and record which lumened items your sterilizer is cleared for.
Size the chamber against your real load with the sterilization usage calculator, ask a compliance specialist about a specific device, or price pouches, indicators and cleaning consumables on the bulk quote form, and facility accounts can use wholesale ordering for facilities. Reselling? become a distributor.
Not sure how this applies to your own setup? Ask a sterilization compliance specialist — you’ll get a written answer specific to your equipment and province, with the regulation or standard cited.
Related Reading
- Autoclave load configuration: arranging packs and trays
- Autoclave loading patterns: tray orientation in Canada
- Sterilization pouch sizes: guide to fit, seal and common errors
Frequently Asked Questions
What counts as a hollow instrument?
Anything with an internal space that steam has to reach and air has to leave: suction tips, cannulae, hollow handles, tube connectors, aspiration tubing, and instruments with a cavity inside a solid body. A shallow groove on a surface is not a lumen. A cavity where air can sit and steam must travel is the thing that changes how a load behaves.
Why is a lumen harder to sterilize than a flat instrument?
Air is heavier than steam and it sits in the closed end of a tube. Steam cannot enter until that air is removed, and in a benchtop sterilizer the air removal step is short and depends on the load around the tube. A narrow tube also loses heat quickly and condenses steam on its inner wall, so the conditions at the far end are harsher than anywhere else in the chamber.
Can any benchtop autoclave process lumened instruments?
Many can, within a limit the manufacturer states in the instructions for use. That limit usually names the type of hollow load, the maximum length and diameter of a tube, and the load arrangement that has been validated. If your sterilizer manual does not state a hollow-load capability, the honest position is that the site has not established one, and the item should not be processed in-house.
How should a lumen be cleaned before sterilization?
Clean it as if sterilization cannot reach inside, because in a badly cleaned tube it cannot. Flush with detergent solution, brush with a diameter-matched brush, rinse, and dry with compressed air. A tube that still releases dark fluid after flushing has not been cleaned, and no cycle will make it sterile. Where a site cannot demonstrate cleaning, a single-use alternative is the safer route.
Do I need a special indicator inside a lumen?
The usual practice is to place a chemical indicator where it is most difficult for steam to reach, and for a hollow load that means inside or alongside the lumen rather than on the outside of the pack. ISO 15882 is the guidance document for selecting, using and interpreting chemical indicators, and it is worth reading before a site decides where an indicator belongs.
What makes a lumen load fail in practice?
Three things recur: tubes laid horizontally so they trap air, tubes packed against each other so steam cannot circulate around them, and tubes with a closed stopcock or cap that turns an open tube into a dead-end cavity. The fourth is a tube that is too long for the sterilizer's validated limit, which no arrangement can fix.
Can I sterilize handpieces and air lines in the same cycle?
Follow the device manufacturer's reprocessing instructions for each item, which is where the sterilizer type, cycle and any lubrication requirement are stated. Devices that the instructions say must be processed in a specific cycle should not be dropped into a general load to save a cycle. When two instructions conflict, the device instruction governs the device.
What should the load record show for a hollow load?
Which items were in the load, how they were oriented, which indicator was used and where it was placed, the cycle selected, the biological indicator result, and the release decision. A record that lists only the cycle number cannot show that the hollow items were arranged in the way the validation assumed.
