ASTM D4169: Matching the Assurance Level to the Shipping Lane
Two questions decide whether a shipping test is worth anything. Which hazards does this lane actually contain, and how hard should the laboratory push. ASTM D4169 answers both with a structure rather than a number, and that structure is what a buyer should hear when a supplier says a package is distribution tested.
The practice itself is short on adjectives. It exists to give a laboratory a uniform basis for evaluating the ability of shipping units to withstand the distribution environment, by putting them through a test plan made of hazard elements taken from a distribution cycle. It is deliberately not a material specification and not a replacement for a supplier's existing preshipment test routine.
For a clinic, a dental practice or a laboratory, the document matters at one remove. Nobody in a treatment room runs a drop test. But the carton that arrives with a five year sterile shelf life claim, a handling symbol and a sealed sterile barrier has been through someone's D4169 protocol, and the wording of that protocol is the difference between a claim and a slogan.
What does ASTM D4169 actually test?
The unit under test is the shipping unit, defined in the standard as the smallest complete unit that will be subjected to the distribution environment, for example a shipping container and its contents. Clause 5.1 goes further: test specimens are representative samples of complete shipping units including the actual contents. An empty carton is not a specimen.
The practice places three limits on itself that a buyer should know before treating a report as universal. Clause 1.3 states that its suitability for hazardous materials has not been determined. Clause 1.2 points single parcel shipments to ASTM D7386 instead. And Clause 1.1 makes clear that it does not supplant material specifications or existing preshipment procedures, so a report is evidence about a shipping configuration, not a certificate for every product a supplier sells.
One sentence in Clause 1.4 is worth keeping in mind during any argument over a specification sheet: the values stated in inch pound units are the standard, and the SI conversions printed alongside are for information only. Test reports written in millimetres and kilograms may be conversions of the controlling figures, which is why the protocol, not the summary table, is the document to read.
What are the three assurance levels?
An assurance level is the level of test intensity chosen for the plan, defined by how likely that intensity is to occur in a typical distribution cycle. The standard's own words are slightly counterintuitive: Level I is a high level of test intensity with a low probability of occurrence, Level III is a low level of intensity with a correspondingly high probability of occurrence, and Level II sits between the two.
| Assurance level | Test intensity | Probability of occurrence | Typical reading |
|---|---|---|---|
| Level I | High | Low | Rare but severe handling and transport events |
| Level II | Medium | Medium | The common compromise for mixed lanes |
| Level III | Low | High | Everyday handling that happens on almost every trip |
For Distribution Cycle 18, the cycle written into military packaging practice, the standard defers to MIL-STD-2073-1 for the definitions of the military protection levels, so the three level framework is not used the same way there. If a supplier quotes D4169 with DC-18 in the protocol, the level definitions come from that military standard and should be named as such.
The practical point is that an assurance level is a judgement about a lane, not a badge of quality. A packaging system designed to Level III is not a worse product than one designed to Level I. It is a product designed against a different set of expected events, and the protocol should say which one was assumed and why.
Which distribution cycle matches the shipping lane?
Table 1 of the practice lists the distribution cycles, and each cycle is a sequence of test schedules. The table is the part of the standard most worth photocopying, because it converts a vague statement such as "our packaging is tested for transport" into a specific sequence of events.
| Distribution cycle | Lane it describes | Example of the sequence |
|---|---|---|
| DC-1 | General cycle, undefined distribution system | Handling, stacked vibration, loose load vibration, rail switching, concentrated impact, handling |
| DC-3 | Single package without pallet or skid, less than truckload motor freight | Handling, stacked or vehicle stacking plus vehicle vibration, loose load vibration, concentrated impact, manual handling |
| DC-5 | Motor freight, truckload, not unitized | Handling, stacked vibration, vehicle vibration, concentrated impact, handling |
| DC-9 | Rail and motor freight, not unitized | Handling, vehicle stacking, vehicle vibration, rail switching, loose load vibration, concentrated impact, handling |
| DC-12 | Air intercity and local motor freight, over 150 lb or unitized | Handling, stacked vibration, low pressure, vehicle vibration, concentrated impact, handling |
| DC-13 | Air intercity and local motor freight, single package up to 150 lb | Handling, vehicle stacking, loose load vibration, low pressure, vehicle vibration, concentrated impact, handling |
Two details in the table do commercial work. First, the low pressure schedule appears in the air cycles, which is the acknowledgement that a package flying at altitude meets a pressure differential that a truck never creates. A 2023 study in the PDA Journal of Pharmaceutical Science and Technology showed that this differential can move an elastomer stopper inside a prefilled syringe, which puts container closure integrity and sterility at risk. Second, DC-13 carries a note pointing single parcel carrier shipments to ASTM D7386, which is the standard most clinic supply deliveries actually travel under.
Schedules are the building blocks: handling, warehouse stacking, vehicle stacking, stacked vibration, vehicle vibration, loose load vibration, rail switching, low pressure and concentrated impact. Each schedule carries its own intensities for the three assurance levels and refers back to a test method, which is why the protocol names both the cycle and the schedule letters it used.
Why does the standard insist the shipping unit stays closed?
Clause 4.1 contains the single most useful instruction for anyone auditing a packaging claim. The tests are performed sequentially on the same containers, in the order given, and for a performance test the shipping unit must remain unopened until the sequence is complete.
The same clause explains what is lost if that rule is broken: if a laboratory opens the shipping unit partway through the sequence to inspect it, it may no longer be able to evaluate the influence of the container closure on container performance. Opening a carton and re-taping it changes the very variable the test exists to measure.
This is why the post sequence inspection matters so much in a sterile barrier programme. The mechanical sequence damages or does not damage the pack; the integrity tests applied afterwards decide whether that damage reached the seal. Dye penetration under ASTM F1929, seal strength under ASTM F88, visual seal inspection under ASTM F1886 and gross leak detection under ASTM F2096 are the four methods that turn a transport test into a statement about sterility.
What should a sterile processing team ask for?
Six questions extract everything the report is worth. Each one maps to a clause in the practice.
- Which distribution cycle was used, and what delivery pattern does it represent.
- Which assurance level was set, and what intensity and probability that level implies.
- Which hazard elements were run, in what order, with the schedule letters named.
- How many shipping units were tested, and whether the actual product was inside them.
- Which integrity methods were applied after the sequence, and on which samples.
- What the acceptance criteria were, since the practice defines them as the quality level a shipping unit must meet after the test plan.

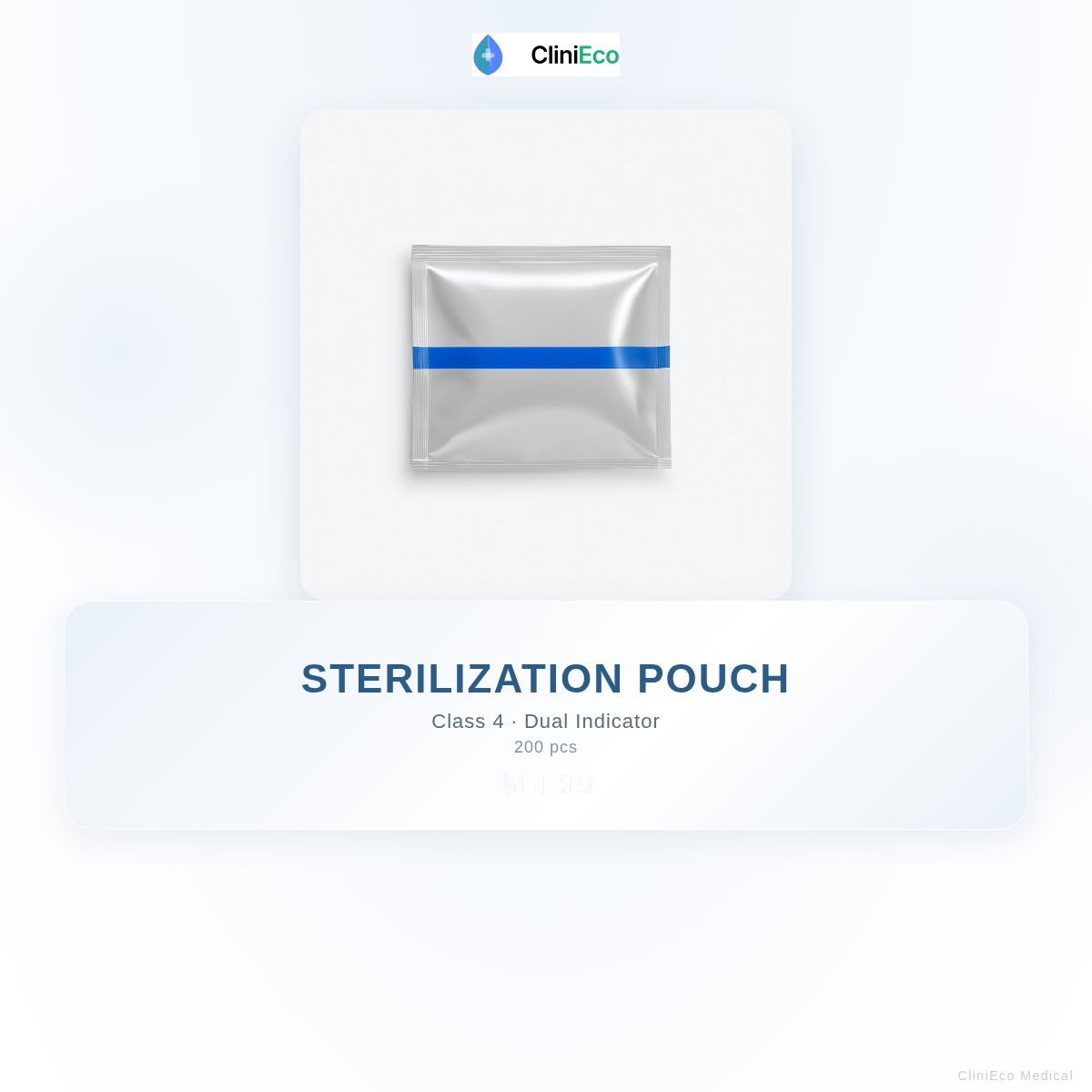

For a clinic, the answers chain back to the pouch or the roll on the shelf. A 200-pack box of Class 4 dual indicator pouches and a 50 metre sterilization roll are only as good as the handling they get after they leave the shelf, which is the clinic's half of the claim: keep cartons off the floor, out of direct sunlight and away from sharp edges, and rotate the oldest stock first.
How does this fit with ISO 11607 and Canadian rules?
ASTM D4169 is a mechanical and environmental test practice. ISO 11607-1 is the packaging standard for terminally sterilized medical devices, and Part 2 addresses the validation of the processes used to form, seal and assemble the sterile barrier system. The division of labour is clean: ISO 11607 tells you what the packaging system has to achieve across its whole life, and D4169 is one of the test practices used to show that the system survives the distribution leg of that life.
In Canada the packaging claim sits inside the medical device regulatory framework. Devices are placed on the market under the Medical Devices Regulations, and the manufacturer holds the documentation that supports sterile presentation and shelf life claims. A clinic purchasing finished sterile product is buying the output of that work; the clinic's obligation is to store and handle the product so the claim is not spent before use.
CliniEco Medical supplies sterile packaging and monitoring consumables to clinics, laboratories and long term care homes across Canada, including sterilization monitoring supplies and a sterilization compliance kit that pulls pouches, indicators and tape into one order. Clinics validating their own workflow can start with the biological indicator 5-pack trial at CA $12.99 with shipping included, and volume buyers can request a bulk quote covering boxes or cases.
References and standards cited
- ASTM D4169-23 Standard Practice for Performance Testing of Shipping Containers and Systems (link checked 19 September 2026)
- ASTM D7386 Practice for Performance Testing of Packages for Single Parcel Delivery Systems (link checked 19 September 2026)
- ASTM F2825 Practice for Climatic Stressing of Packaging Systems for Single Parcel Delivery (link checked 19 September 2026)
- ASTM F1980 Guide for Accelerated Aging of Sterile Barrier Systems and Medical Devices (link checked 19 September 2026)
- ASTM D5276 Test Method for Drop Test of Loaded Containers by Free Fall (link checked 19 September 2026)
- ASTM D4728 Test Method for Random Vibration Testing of Shipping Containers (link checked 19 September 2026)
- ASTM D999 Test Methods for Vibration Testing of Shipping Containers (link checked 19 September 2026)
- ASTM D642 Test Method for Determining Compressive Resistance of Shipping Containers, Components and Unit Loads (link checked 19 September 2026)
- ASTM D6179 Test Methods for Rough Handling of Unitized Loads and Large Shipping Cases and Crates (link checked 19 September 2026)
- ASTM D6344 Test Method for Concentrated Impacts to Transport Packages (link checked 19 September 2026)
- ASTM D6653 Test Methods for Determining the Effects of High Altitude on Packaging Systems by Vacuum Method (link checked 19 September 2026)
- ASTM D4332 Practice for Conditioning Containers, Packages or Packaging Components for Testing (link checked 19 September 2026)
- ASTM F88 Test Method for Seal Strength of Flexible Barrier Materials (link checked 19 September 2026)
- ASTM F1929 Test Method for Detecting Seal Leaks in Porous Medical Packaging by Dye Penetration (link checked 19 September 2026)
- ASTM F1886 Test Method for Determining Integrity of Seals for Medical Packaging by Visual Inspection (link checked 19 September 2026)
- ASTM F2096 Test Method for Detecting Gross Leaks in Packaging by Internal Pressurization (Bubble Test) (link checked 19 September 2026)
- ISO 11607-1 Packaging for terminally sterilized medical devices (link checked 19 September 2026)
- Roffi K et al. Laser Measurement and Numerical Simulation of Elastomer Stopper Motion during High-Altitude Shipping. PDA Journal of Pharmaceutical Science and Technology. 2023;77(6):449-471 (link checked 19 September 2026)
Related Reading
- Accelerated Aging and Distribution Testing: F1980 and D4169
- ASTM F2096 Bubble Emission Testing for Sterile Packaging
- Seal Integrity Testing for Sterile Pouches: ASTM F88, F1929 and F1886
- ISO 11607 Explained: Packaging Requirements for Sterile Devices
- Sterile Barrier Packaging: What ISO 11607 Requires of Clinics
- How Long Do Sterile Items Stay Sterile? Shelf Life and Storage Events
- Class 4 dual indicator sterilization pouches, 200-pack
- Sterilization roll, pre-cut sheets, 50 m
- Biological indicator 5-pack trial (CA $12.99)
- Sterilization compliance assistant kit
- Sterilization monitoring supplies
- Request a bulk quote
Frequently Asked Questions
What is ASTM D4169 used for?
ASTM D4169 is the standard practice for performance testing of shipping containers and systems. It gives a laboratory a uniform basis for evaluating whether a shipping unit can withstand the distribution environment, by running a test plan made of the hazard elements found in a chosen distribution cycle.
What is an assurance level in ASTM D4169?
An assurance level is the level of test intensity chosen for the test plan, based on how likely that intensity is to occur in a typical distribution cycle. Level I is a high level of test intensity with a low probability of occurrence, Level III is a low level of intensity with a high probability of occurrence, and Level II sits between them.
Which distribution cycle should a supplier use for clinic deliveries?
The cycle is chosen to match the actual routing. A single package without a pallet moving by less than truckload freight is not the same cycle as a unitized pallet travelling by rail and then road, and neither is the same as an air shipment. The supplier or packaging laboratory should be able to name the cycle and explain how it matches your delivery pattern.
What counts as a hazard element?
A hazard element is a specific event in a distribution cycle that can damage a shipping unit, such as handling, stacking, vehicle vibration, loose load vibration, concentrated impact or low pressure. Each element is usually simulated by a single test schedule, and the standard sets out the sequence in which the schedules are run.
Does ASTM D4169 prove a sterile barrier system is still sterile?
No. D4169 subjects a shipping unit to mechanical and environmental stress. Whether the sterile barrier system is intact after that stress is established by separate integrity and seal tests, such as dye penetration, visual seal inspection, bubble emission and seal strength testing, applied to the same shipping units after the sequence.
How many samples does ASTM D4169 require?
The practice does not publish one universal sample count. The test plan defines the test sequence, the intensity and the number of sequential tests, and the number of shipping units used is agreed with the laboratory. Ask the packaging supplier for the written protocol rather than for a number, then check that the protocol states the cycle, the assurance level and the sample count.
Can a clinic ship parcels under ASTM D4169?
For single parcel carriers the practice points to ASTM D7386, which covers performance testing of packages for single parcel delivery systems, with ASTM F2825 covering climatic stressing for that lane. Facilities that receive stock by pallet and ship specimens by courier should expect two different test plans.
Who pays for D4169 testing, the supplier or the clinic?
It sits with the party making the packaging claim. A manufacturer validating a sterile barrier system tests it as part of the packaging validation behind the sterile barrier, and a supplier repackaging or kitting product into a new configuration owns the claim on that configuration. A clinic buying finished, validated packaging is the receiver of the report, not the author of it.
