Pouch Overfill and Expansion Space: How Full Is Too Full Before a Load Fails
A sterilization pouch looks forgiving. It is a plastic film and a paper sheet, sealed on three sides, with an indicator printed on the film. It costs a few cents. That is exactly why overfilling happens: nobody expects a few cents of packaging to be the difference between a sterile instrument and a re-processed tray.
The cost of an overfilled pack is not the pouch. It is the load. A pouch that traps air can leave an indicator unreactive, a pack wet, or a seal lifted — and any of those outcomes turns a routine cycle into a suspected failure with instruments quarantined and patients rescheduled.
What is a pouch actually doing in the sterilizer?
A paper-plastic pouch is a one-way street. Steam enters through the paper, contacts the contents and the film, and air leaves through the same paper path. The film provides the barrier after processing and the paper provides the breathable side, which is why pouches are stored with the paper up and why a pouch that has been soaked or crushed is no longer a reliable barrier.
ISO 11607-1 sets out what a sterile barrier system has to do, and ISO 11607-2 sets out how the sealing process has to be validated. Neither document sets a fill percentage, because fill is a load-design decision. What the standards do require is that the packaging system, the sealing process and the load as presented have been shown to work together.
Why does expansion space matter?
Instruments and air both expand as they heat. A pouch filled to the seal line has no room for either, so the contents press against the seam while the seal is at its weakest, immediately after heat sealing. The result is a pack that looks acceptable leaving the sealer and shows a lifted edge two days later.
Expansion space also governs drying. A pack with a little air movement inside dries faster than a tight pack, and moisture is the most common reason a pack is rejected on the shelf. A visible strip of paper beside the instruments is a simple, checkable proxy for both airflow and drying.
What are the working limits a clinic can adopt?
A site does not need to invent these numbers, but it does need to write them down. The following limits are the ones most small Canadian sites can defend, because each one is visible to the person holding the pack.
| Check | Working limit | Why it matters |
|---|---|---|
| Fill of pouch area | About three quarters | Leaves room for expansion and steam travel |
| Distance from contents to seal | At least 3 cm (about 1 inch) | Protects the seam while it cures |
| Paper visible beside contents | A clear strip on one side | Proves a steam path exists |
| Contents | Nothing touching the paper seam | Contact points stay dry and intact |
| Seal width | Full, continuous, wrinkle free | A channel is a hole |
| Sharp items | Tip protection fitted | A puncture is invisible after cooling |
| Pack weight | Set by the site and fit-tested | Seal strength is size dependent |
Publishing the table in the reprocessing manual does more than inform staff. It gives an auditor a visible control: the site has defined a limit, the staff know it, and the packs on the shelf can be checked against it in seconds.
How does pouch choice drive overfill?
Most overfilling is a size problem, not a discipline problem. A clinic that stocks three pouch sizes and tries to fit every tray into the largest one will push against the seal on the busy days. Adding one size at each end of the range costs less than the wasted cycles.

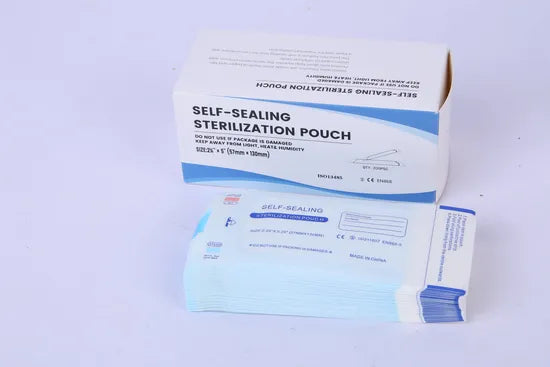

Class 4 self-sealing pouches with dual indicators, such as the 200-per-box range, come in 16 size variants that cover most dental and clinic trays, and the seal is made by the pouch itself, which removes the sealer settings from the day-to-day variable list. Larger or irregular sets move to a 76 mm by 50 m sterilization roll, where the operator controls the length and therefore the fill.
For anyone standardising a room, the consumables that interact with fill limits are grouped in the dental sterilization essentials range: pouches, rolls and the indicator tape used to close wrapped sets.
How do you run a fit test?
A fit test takes an afternoon once, then ten minutes a year. Take the ten trays the clinic actually processes, place each one in each pouch size stocked, and record three observations: can the pack be sealed without pressing contents, is there a visible paper strip beside the contents, and does the pack lie flat on the shelf without a bulge.
Anything that fails one of the three moves up a size, or to the roll. Write the mapping — tray name to pouch size — on a single sheet and laminate it beside the sealer. New staff then inherit a decision instead of making one.
What does the load around the pouch do?
A correctly filled pouch can still fail inside a crowded chamber. Pouches need to stand on edge, paper to paper, without touching the chamber walls and without being stacked flat on one another. A chamber packed to the door restricts the air removal step and the steam distribution that follows it.
The Bowie-Dick test, covered by ISO 11140-3 for Class 2 indicators, exists to show that air removal and steam penetration work in an empty or lightly loaded chamber. It does not prove that a specific overfilled load will process, which is why load configuration is a separate control. Where a site runs mixed loads, the pattern matters as much as the fill.
Which indicator confirms the pack, not just the cycle?
Three layers of evidence are commonly used. The external indicator on the pouch film shows the pack saw the process. The internal Class 4 indicator shows conditions were reached inside the pack. The biological indicator, specified by ISO 11138-1, shows that the cycle can kill spores.
ISO 15882 is the guidance document for selecting, using and interpreting chemical indicators, and it is the reference to reach for when a site is deciding where an indicator belongs. A pack that has an external indicator but no internal one is a pack where the visible signal is the least informative signal available.
What happens when an overfilled pack is processed anyway?
Nothing dramatic, which is the problem. The pack may look acceptable, the external indicator will have changed, and the pack goes on the shelf. The failure shows up later as a wet pack, a difficult peel, a lifted seal or an internal indicator that reads lighter than its neighbours.
Treat it as a load quality event rather than a personal error. Quarantine the pack, re-process the contents in a correctly sized pouch, and note the reason on the load record. If several packs from the same cycle show the same symptom, review the load pattern before assuming the sterilizer is at fault.
What should the SOP say?
Four paragraphs are enough. State the fill limit. State the seal margin and what a rejected seal looks like. State how the pack is placed in the chamber and what may not be stacked. State what the operator does with a pack that fails the visual check.
Then connect it to the record. A pouch and load record that captures the pouch size, the number of packs, the indicator result and the release decision is the evidence that the written limit is being followed. ISO 14971 frames this as controlling a process hazard, and the quality management thinking in ISO 13485 frames the same idea as a documented process that produces consistent output. A clinic borrows both ideas cheaply by writing down what it already does, then checking that it happened.
References
- ISO 11607-1:2019 — Packaging for terminally sterilized medical devices, Part 1 (checked 22 October 2026)
- ISO 11607-2:2019 — Packaging, Part 2: validation of forming, sealing and assembly (checked 22 October 2026)
- ISO 11140-1:2014 — Chemical indicators, Part 1: general requirements (checked 22 October 2026)
- ISO 11140-3:2007 — Chemical indicators, Part 3: Class 2 indicators for Bowie-Dick (checked 22 October 2026)
- ISO 11138-1:2017 — Biological indicators, Part 1: general requirements (checked 22 October 2026)
- ISO 15882:2008 — Chemical indicators, guidance for selection, use and interpretation (checked 22 October 2026)
- ISO 17665-1:2006 — Moist heat sterilization, Part 1 (checked 22 October 2026)
- ISO 11737-2:2019 — Microbiological methods, Part 2: sterility testing (checked 22 October 2026)
- ISO 14971:2019 — Application of risk management to medical devices (checked 22 October 2026)
- ISO 13485:2016 — Medical devices, quality management systems (checked 22 October 2026)
- ISO 15223-1:2021 — Symbols to be used with medical device labels (checked 22 October 2026)
- ISO 11135:2014 — Ethylene oxide sterilization of health care products (checked 22 October 2026)
- ANSI/AAMI ST79:2017/(R)2022 — Comprehensive guide to steam sterilization (checked 22 October 2026)
- Infection Prevention and Control (checked 22 October 2026)
- Infection Prevention and Control (checked 22 October 2026)
Start with the record, not the pack: download the printable pouch sealing and load SOP template and write the fill limits your own room works to.
Estimate weekly pouch volume with the sterilization usage calculator, ask a compliance specialist about a failing load, or price box and case quantities on the bulk quote form, and facility accounts can use wholesale ordering for facilities. Reselling? become a distributor.
Not sure how this applies to your own setup? Ask a sterilization compliance specialist — you’ll get a written answer specific to your equipment and province, with the regulation or standard cited.
Related Reading
- Sterilization pouch sizes: guide to fit, seal and common errors
- How many instruments fit a 3.5 by 9 inch pouch
- Autoclave load configuration: arranging packs and trays
Frequently Asked Questions
How full can a sterilization pouch be?
Leave roughly a quarter of the pouch empty and keep instruments clear of the paper seam. The working rule most Canadian sites adopt is a fill of about three quarters, with at least three centimetres between the end of the contents and the seal line, plus a visible strip of paper on the plastic side so steam can enter and air can leave.
Why does a full pouch fail in the autoclave?
Air has to leave and steam has to reach every surface. A packed pouch traps air in the middle, so the centre of the load runs cooler and the indicator changes late or unevenly. Overfill also stretches the seal as the contents expand with heat, which is how a pack arrives at the shelf with a curled or lifted edge.
Does overfilling affect the chemical indicator?
Yes. The Class 4 indicator inside a pouch is positioned where steam is expected to reach it; if the pack is packed so tightly that steam arrives late, the indicator either under-reacts or reacts unevenly. ISO 11140-1 defines indicator performance, but no indicator specification can compensate for a load that the steam cannot penetrate.
What weight should a pouch carry?
There is no universal weight limit, because it depends on pouch size and seal strength. What matters is that the site sets a limit and tests it: load the pouch as you intend to use it, seal it, process it in an empty cycle, and inspect the seal and the indicator afterwards. Record the limit and hold staff to it rather than to memory.
Can I double pouch a heavy instrument?
Double pouching is used to protect a heavy or sharp item, not to enable an overloaded pack. Where it is used, the inner pouch must not be sealed so tightly that air cannot escape, and the outer pouch becomes the sterile barrier that ISO 11607-1 governs. If the combination makes the pack bulky or hard to dry, the item belongs on a tray with wrap instead.
Do sharp instruments need extra room?
They need protection rather than room: a tip protector, a silicone mat or a small tray insert keeps a tip from puncturing the paper. A puncture is a hole in the sterile barrier, and it is invisible on the shelf once the pack has cooled. Inspect the paper side of every pack that carried a sharp item before it goes into storage.
How do I check the fill limit in practice?
Run a fit test: choose the ten most common trays in the clinic, place them in the pouch sizes you stock, and look at the gap at the seal and the paper strip beside the contents. Anything that needs to be pushed in, or that leaves no visible paper, moves to the next size up. Repeat the test whenever the instrument mix changes.
What if a pack is overfilled by mistake?
Do not process it to save time. Re-pack it, re-seal it and note the change on the load record. A pack that was opened and resealed needs a new indicator, because the original indicator's history is no longer a record of a single sealing event.
