ISO 7153 and ISO 16061: Surgical Instrument Material Standards and Their Effect on Reprocessing

Four self-sealing sterilization pouches in ascending sizes

Instrument material standards rarely appear in a clinic's compliance file, yet they decide what the reprocessing instructions can ask of a device. ISO 7153-1 designates the metals used to make standard surgical instruments, and ISO 16061 sets the general requirements for instruments used with non-active surgical implants — including what the manufacturer must tell the reprocessing team. Neither document is a reprocessing standard, and neither one replaces the manufacturer's validated instructions; what they do is set the boundaries that those instructions have to work inside.

This guide reads both standards for the procurement decision: what each one actually specifies, where their scopes end, how they connect to processing instructions, and what a clinic or a reprocessing department should ask for in writing before a new instrument family enters service.

Question Short answer
What is ISO 7153-1? The materials standard for metals used in standard surgical instruments, third edition published in 2016
What is ISO 16061? General requirements for instruments used with non-active surgical implants, fourth edition published in 2021
Does ISO 16061 cover dental implant instruments? No. Its scope explicitly excludes instruments associated with dental implants, transendodontic and transradicular implants, and ophthalmic implants
What governs reprocessing instructions? ISO 17664-1:2021 for critical and semi-critical devices, ISO 17664-2:2021 for non-critical devices
What should procurement ask for? Material designation and grade, validated processing instructions, coating specification, and the inspection and retirement criteria

For the cleaning end of the process, the equipment and chemistry a programme relies on include a CliniEco Dental Ultrasonic Cleaner — 6 L Benchtop, CS6.2 Dual-Frequency and the enzymatic concentrate that runs in it; both are consumables, not substitutes for the manufacturer's validated cycle.

What does ISO 7153-1 actually specify?

ISO 7153-1:2016 is the third edition of the materials standard, and its scope is narrower and its ambition smaller than the phrase material standard suggests. It specifies the metals commonly used to manufacture standard surgical instruments, including but not limited to those used in general surgery, orthopaedics and dentistry. It is not intended for instruments used in special applications such as implantology and minimally invasive surgery, although parts of it may be applicable.

Two details in the scope matter more than the list of metals:

First, the standard organises materials by field of application. Tables 1 to 3 indicate which materials experience has shown to be suitable for particular instrument types and components, and Table 4 lists the stainless steels themselves. Annex A gives examples of dental instruments. That structure means a compliant instrument is not simply made from a compliant metal; it is made from a metal the standard associates with that class of instrument.

Second, the standard deliberately leaves the selection decision with the manufacturer. Its scope note says the information given cannot remove the decision-making responsibility from the instrument manufacturer for selecting an appropriate raw product with suitable properties, and that other steels — carbon steel for cutting instruments is the example given — are not precluded.

That is why "made to ISO 7153" is not a specification you can evaluate. Two suppliers can both state compliance while supplying different grades, different hardness, and different surface finishes, because the standard allows a range and expects the maker to choose within it.

The normative references also tell you what language the supplier's documentation should speak: unalloyed titanium and wrought titanium 6-aluminium 4-vanadium alloy (ISO 5832-2 and ISO 5832-3), Vickers and Rockwell hardness test methods (ISO 6507-1 and ISO 6508-1), the European list of stainless steels (EN 10088-1), and the ASTM specifications for titanium strip, sheet, plate, bar and billet (ASTM B265 and ASTM B348). When a supplier cannot name a grade and a hardness range, the standard has not been applied in any useful sense.

What does ISO 16061:2021 cover, and where does its scope end?

ISO 16061:2021 is the fourth edition and replaced the 2015 edition. It specifies general requirements for instruments used in association with non-active surgical implants, and — this is the part procurement teams miss — its requirements apply both when the instruments are manufactured and when they are supplied after refurbishment. A refurbished instrument is inside the scope, not outside it.

The standard covers intended performance and intended purpose, design attributes, materials, design evaluation, manufacture, sterilization, packaging, and the information supplied by the manufacturer. Its introduction sets out a three-level hierarchy: Level 1 general requirements, Level 2 particular requirements for families of instruments, and Level 3 requirements for specific instrument types, with compliance at the lower level implying compliance at the levels above.

The exclusions are explicit, and they matter in dentistry. The scope states that the document is not applicable to instruments associated with dental implants, transendodontic and transradicular implants, and ophthalmic implants. A dental practice that receives a certificate citing ISO 16061 for implant drills, torque wrenches or prosthetic drivers should ask what document actually applies to those instruments, because this one says it does not.

The 2021 revision also changed how materials are handled. Material selection is now based on a risk analysis, and the clause lists the minimum factors that analysis has to consider. Annex A was simplified to give guidance on material selection using a risk-based approach, and the stainless-steel grade characteristic tables that appeared in earlier editions were removed.

How do the material standards connect to reprocessing instructions?

They connect through the instructions for use. ISO 17664-1:2021 covers the information a manufacturer must provide for processing critical and semi-critical devices, and ISO 17664-2:2021 does the same for non-critical devices. ISO 17664-1 is where the raw material decision becomes an operational instruction: the manufacturer has to validate each process it identifies, and it has to hold objective evidence of that validation. The clause is direct — the medical device manufacturer shall validate each process that is identified in the information supplied with the medical device — and the validation has to show that the process is suitable for the device, with risk analysis governing the content and detail.

For terminal sterilization, the instruction has to specify validated methods that achieve the required sterility assurance level, and it has to identify the equipment and materials the process requires. That is the sentence that turns a metal grade into a practical constraint: if the validated process calls for a particular chemistry, temperature or rinse quality, the clinic cannot substitute a different one because it happens to be on the shelf.

The provincial layer then adds what the clinic must do with any reusable device, whatever its material. Provincial reprocessing guidance requires thorough cleaning before disinfection or sterilization, a written protocol covering disassembly, sorting, soaking, removal of organic material, rinsing, drying, physical inspection, lubrication and wrapping, and visual inspection after cleaning for cleanliness and integrity — cracks, defects and adhesive failures. It also requires stainless steel items to be dried immediately after rinsing to prevent spotting, and lubrication to follow the manufacturer's guidelines, using a lubricant compatible with both the device and the sterilization process.

Which material and process choices change the reprocessing burden?

The table below translates the standards into the questions a reprocessing lead actually asks. The right-hand column is the evidence a supplier should be able to produce; the middle column explains why the answer changes what the clinic can do.

Material or process What it does under repeated reprocessing Evidence to request
Hardened martensitic stainless steel (cutting edges) Holds an edge, but the same hardness that makes it cut reduces its tolerance for chloride and for prolonged wet contact Grade designation, hardness range and test method, corrosion test results
Austenitic stainless steel (shafts, handles, non-cutting parts) Better corrosion resistance, lower hardness; susceptible to pitting if chlorides concentrate and surfaces stay wet Grade, passivation specification, surface finish
Passivation of stainless surfaces Restores the passive layer after machining and polishing; a skipped step shows up months later as staining, not as a failed cycle Passivation process description and acceptance criteria
Applied coatings (nitride or hard-chrome type) Improve wear resistance, but a coating that chips becomes a crevice that cleaning cannot reach Coating specification, thickness, adhesion and wear acceptance criteria
Welded, brazed or soldered joints Create crevices and dissimilar-metal contacts where cleaning chemistry and residue collect Joint method, filler material, cleaning validation for the joint area
Cannulated shafts, lumens and narrow channels Soil and moisture are hard to remove and hard to dry; residual moisture undermines the sterile barrier Minimum bore, cleaning validation, drying method, brush access
Matte, black or coloured finishes Reduce glare, but can mask discolouration that would otherwise trigger inspection Finish specification and what discolouration is acceptable
Mixed-metal assemblies Dissimilar metals in contact under wet conditions create galvanic effects Material list per component and compatibility statement
Polymer and elastomer components Age under repeated heat and chemistry; cracking appears at stress points Maximum cycle count if stated, temperature limits, chemistry compatibility
Instruments with a measuring function Wear changes the measurement, not the appearance Calibration or verification interval, acceptance tolerance
Single-use components supplied with a reusable set Cannot be reprocessed even if they look intact Explicit single-use labelling and the manufacturer's statement

Which standard tells you what, and what do you ask for at purchase?

No single document covers a purchase decision. The table below separates what each standard actually answers from what it leaves open, which is the gap most tender documents fall into.

Standard What it covers What it does not tell you Document to request
ISO 7153-1 Metals used for standard surgical instruments, with fields of application and grade references Which grade this particular instrument uses, or its hardness Declaration of the material grade, hardness and the standard table referenced
ISO 16061 General requirements for instruments used with non-active implants, at manufacture and after refurbishment Anything about dental implant, transendodontic or ophthalmic instruments Certificate naming this standard with the correct scope, plus the risk-based material rationale
ISO 17664-1 Validated processing information for critical and semi-critical devices Whether your local utilities meet the validated process Full instructions for use with cycle parameters, chemistry and drying
ISO 17664-2 Processing information for non-critical devices Anything about a device that enters a sterile field Instructions for use and the classification the manufacturer assigns
ISO 11607-1 and -2 Sterile barrier systems and the validation of forming and sealing processes Instrument material behaviour Packaging specification and seal validation for your sealer
ISO 17665-1 Development, validation and routine control of moist heat sterilization Instrument-specific limits Compatibility statement for the steam cycle used in your facility

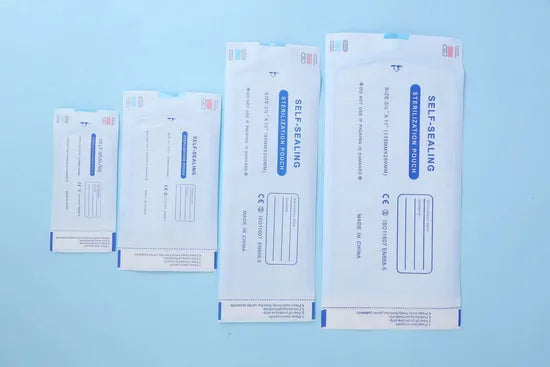

Four self-sealing sterilization pouches in ascending sizes on a light blue background
Packaging and materials interact: a pouch that fits poorly traps air, and a heavy instrument set can stress the seal.

What does instrument failure look like before a cycle fails?

Material failure almost never announces itself with a failed biological indicator. It appears earlier, in inspection, and the provincial criteria are concrete: after cleaning and before terminal disinfection or sterilization, every device is inspected for cleanliness and integrity, including cracks, defects and adhesive failures, and anything not clean is cleaned again. At the point of use, the check includes discolouration or soil, in which case the item is removed from service and reprocessed, and defective devices are taken out of use.

Read those criteria as material signals. Cracks at a box joint, a chip in a coating, a lumen that no longer passes a brush, discolouration that returns after cleaning, or a ratchet that no longer holds are all evidence that the surface has changed in a way the validated cleaning process was not designed to compensate for. None of them is fixed by a longer cycle.

Lubrication belongs in the same conversation. Provincial guidance requires lubrication before sterilization for devices that need it, following the manufacturer's guidelines, with a lubricant compatible with the device and with the sterilization process. A lubricant chosen for convenience rather than compatibility is a material decision made by the wrong person.

How should a clinic write the material section of a tender?

Eight items turn a vague request into something a supplier can be held to:

  • The material designation per component, with the grade named and the standard table it comes from
  • Hardness range and the test method used to verify it
  • Surface finish and passivation specification, including what the supplier accepts as a passivated surface
  • Coating specification, where a coating is used, with adhesion and wear acceptance criteria
  • Cleaning validation for the geometry as supplied, including lumens, joints and matte finishes
  • The full instructions for use under ISO 17664-1 or ISO 17664-2, with cycle parameters, chemistry and drying
  • The maximum number of reprocessing cycles if the manufacturer states one, and the inspection criteria that define retirement
  • A declaration of the standards claimed, with the correct scope, so that ISO 16061 is not cited for instruments it excludes

Two habits make those items enforceable. Ask for the same declaration for every instrument family in the set, so that a mixed tray does not hide one unqualified component. And put the inspection criteria into the clinic's own competency records, so that the person who retires an instrument can point to the criterion that justified it.

Three self-contained biological indicator vials with pink caps standing in a row
Biological monitoring confirms the cycle, not the instrument: a pass says the process worked on that load, not that a cracked hinge is fit for use.

Related reading

Frequently Asked Questions

Does ISO 7153-1 specify a grade for each instrument?

No. It lists metals and associates material families with fields of application, and its scope keeps the selection decision with the instrument manufacturer. That is why a purchase specification has to name the grade and hardness you require rather than accept a statement of compliance with the standard.

Is ISO 16061 a reprocessing standard?

No. It sets general requirements for instruments used with non-active surgical implants, including materials, design, manufacture, sterilization, packaging and the information supplied by the manufacturer. The processing instructions themselves come from ISO 17664-1 or ISO 17664-2, depending on the device classification.

Why does ISO 16061 exclude dental implant instruments?

The scope explicitly excludes instruments associated with dental implants, transendodontic and transradicular implants, and ophthalmic implants. Those instruments are covered by other documents, so a supplier certificate that cites ISO 16061 for implant drills is answering a question you did not ask.

Can a clinic rely on the supplier's instructions alone?

The instructions are the starting point, not the whole answer. The manufacturer must validate the processes it specifies, and the clinic must be able to run those processes with its own water, steam, chemistry and equipment, then verify the result. Where local conditions differ from the validated process, the difference has to be resolved before the instrument enters service.

How often should instruments be inspected?

Inspection is a step in every reprocessing cycle, not a periodic audit. Provincial guidance requires visual inspection after cleaning and before terminal disinfection or sterilization, and a further check at the point of use that includes discolouration, soil and defects. Retirement decisions follow the criteria you have written down.

What is the practical difference between passivation and coating?

Passivation treats the surface of stainless steel so that its corrosion-resistant layer is restored after machining and polishing. A coating adds a different material over the surface to resist wear. A damaged coating exposes the substrate and creates a crevice, while a poorly passivated surface shows staining and pitting without any coating being involved.

Should we accept a certificate that lists several standards?

Only if each standard is named with its scope. A certificate that lists standards without saying which applies to which instrument family cannot be checked, and it is common for a supplier to cite a standard that deliberately excludes the device in question.

Sources

Download the free printable instrument inspection checklist before you change a tray list, or open the sterilization log generator to record the inspection and cycle together. Purchasing at facility level runs through the wholesale and institutional supply account. For a material or validation question on your own sets, Ask a Sterilization Compliance Specialist. Reselling? become a distributor.
