Quick facts
- United States: an extraoral source x-ray system is reached through 21 CFR 872.1800, described as an AC-powered device that produces x-rays for "dental radiographic examination and diagnosis of diseases of the teeth, jaw, and oral structures", and placed in Class II.
- United States: an intraoral source x-ray system is a separate entry at 21 CFR 872.1810, also Class II, described with the tube "located inside the mouth".
- United States: a lead-lined position indicator is reached through 21 CFR 872.1850 and is placed in Class I, with a premarket notification exemption subject to 872.9.
- United States: a dental x-ray film holder is reached through 21 CFR 872.1905, also Class I, described as a device "intended to position and to hold x-ray film inside the mouth".
- Canada: radiation protection guidance for dental x-ray equipment sits in Health Canada's Safety Code 30, published in 2022, which the department states supersedes the previous version of Safety Code 30.
- The American sections cited here were retrieved 2026-10-03; the Canadian regulation text is current to 2026-09-21, and the Safety Code 30 page was retrieved 2026-10-03.
A dental x-ray is made by a tube, aimed by a position indicator, framed by a film holder and shielded by equipment that stays outside the patient. In the United States those parts are not one device: the imaging systems are Class II, and the positioning and holding accessories are Class I. Canada's dental imaging guidance comes from a Health Canada safety code rather than from the device regulation, and the two documents answer different questions.
Are dental x-ray systems Class II in the United States?
Yes, and the two geometries are separate entries.
21 CFR 872.1800 covers the extraoral system, defined as an AC-powered device that produces x-rays for dental radiographic examination and diagnosis, with the source "located outside the mouth". The entry notes that the generic type "may include patient and equipment supports and component parts". The class is Class II.
21 CFR 872.1810 covers the intraoral system, described in the same terms except that the tube is "located inside the mouth". It is also Class II.
The two entries are written in parallel, which is useful when a practice is specifying equipment. A panoramic unit and an intraoral unit are two device types in the file, and a service contract or a replacement covers one geometry at a time.
Canada does not name the imaging systems in Schedule 1, so the class is reached through the general rules. A device that produces x-rays and is used on a patient is described by its intended use, and the guidance for its safe operation comes from the safety code rather than from the device regulation.
| Item | Canada | United States |
|---|---|---|
| Named entry for an extraoral unit | None in Schedule 1 | 872.1800, Class II |
| Named entry for an intraoral unit | None | 872.1810, Class II |
| Safety guidance | Health Canada Safety Code 30, 2022 edition | FDA device entry plus state radiation rules |
| Route to the class | General rules by intended use | The entry states the class |
| Equipment supports | Treated as component parts | Named in the American identification paragraph |
Why are the position indicator and film holder Class I?
Because they position and shield rather than generate, and the framework classifies by the function described in the entry.
21 CFR 872.1850 describes a lead-lined position indicator as "a cone-shaped device lined with lead that is attached to a dental x-ray tube" and intended "to aid in positioning the tube, to prevent the misfocusing of the x-rays by absorbing divergent radiation, and to prevent leakage of radiation". Its class is Class I, with a premarket notification exemption subject to 872.9.
21 CFR 872.1905 describes the film holder as a device "intended to position and to hold x-ray film inside the mouth". Its class is also Class I, and the entry adds that a device not labelled or otherwise represented as sterile is exempt from the quality management system regulation in part 820 except for records and complaint files.
The split tells a practice which part of the imaging chain carries which class. The tube assembly is a Class II device, and the cone and the holder are Class I accessories. A purchase order that treats the whole chain as one class is describing it loosely, and a sterility claim on a film holder changes which quality system requirements apply even though it does not change the class.
| Part | Canada | United States |
|---|---|---|
| Tube and generator assembly | General rules by intended use | 872.1800 or 872.1810, Class II |
| Lead-lined position indicator | General rules | 872.1850, Class I |
| Film holder | General rules | 872.1905, Class I |
| Sterility representation on a holder | Does not change the class | Changes which quality system requirements apply |
What does Canada's dental imaging guidance say it is?
Health Canada describes Safety Code 30 as radiation protection guidance for the use of dental x-ray equipment, and states that the 2022 document supersedes the previous version.
The Safety Code 30 page explains that safety codes are a series of documents that "provide radiation protection guidance" and that they "help promote consistency in radiation protection practices to support the safe use of radiation emitting devices in Canada". The same page states that the document supersedes the previous version of Safety Code 30, and a catalogue record for the 2022 edition is held by Government of Canada Publications.
For a practice, the practical reading is that the device regulation and the safety code answer different questions. The regulation places the equipment in a class and sets the licensing duty; the safety code describes how the equipment should be installed, used and checked. A clinic file that cites only one of the two is answering half the question.
The vintage of the guidance matters as well. Safety Code 30 was first published in 1999 and reissued in 2022, so a practice that still holds the earlier edition is holding a document the department has replaced.
What has to be recorded for a dental imaging suite?
Six records, and the two that most often go missing are the equipment check and the exposure record.
- The equipment and its class. Each unit recorded separately with the section or rule that gives its class, so a panoramic unit and an intraoral unit are not one line.
- The safety guidance edition. The edition of the dental imaging safety code held by the practice, recorded by year rather than by title alone.
- The equipment check. The check the manufacturer states and the interval at which the practice performs it, with the result.
- The exposure record. The exposure settings used and the reason for the image, kept per patient as part of the clinical record.
- The barrier and holder consumables. The film holder and the barrier items used for each image, recorded so a reprocessing or disposal question can be answered.
- The staff protection items. The shielding and positioning accessories in use, recorded with the class that applies to each.
Which consumables does a dental imaging suite restock?

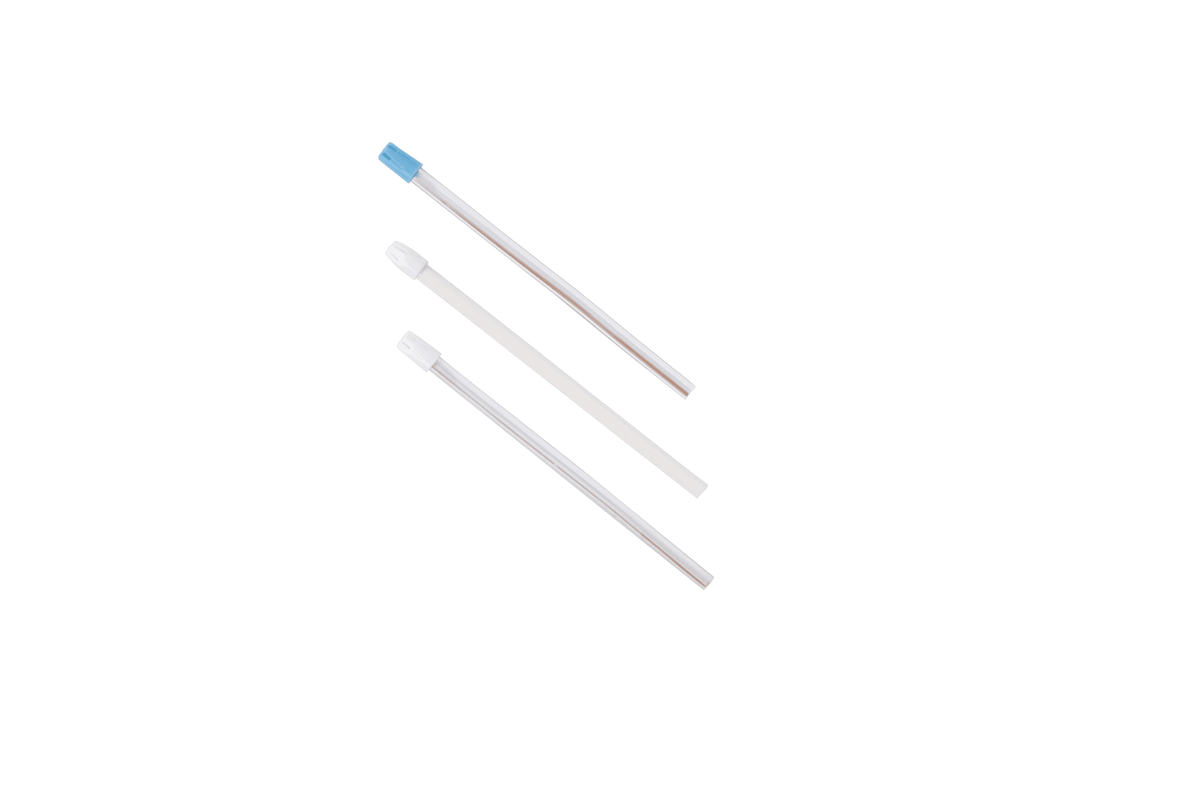

An imaging suite consumes barriers, holders and suction tips on the same cycle as the operatory. For clinics and multi-site groups buying at case level, the wholesale ordering page sets out account and case terms, and the B2B wholesale collection lists the lines held for institutional buyers. The disposable x-ray bite blocks cover positioning, the dental bibs cover the chairside surface, and a clinic that also runs its own steriliser can pair the monitoring collection with the biological indicator 5-pack trial.
Sources
- 21 CFR 872.1800, extraoral source x-ray system
- 21 CFR 872.1810, intraoral source x-ray system
- 21 CFR 872.1850, lead-lined position indicator
- 21 CFR 872.1905, dental x-ray film holder
- 21 CFR 872.3060, noble metal alloy
- Medical Devices Regulations, SOR/98-282, full text and Schedule 1
- Health Canada, Radiation Protection in Dentistry, Safety Code 30
- Government of Canada Publications, Safety Code 30 catalogue record
- ISO 17664-1:2021, information for reprocessing
- ISO 13485:2016, medical device quality management systems
- ISO 14971:2019, risk management of medical devices
- ISO 15883-1:2024, washer-disinfectors
- Royal College of Dental Surgeons of Ontario
- Canadian Dental Association
- Health Canada, medical devices
- Health Canada, drug and health product portal
- openFDA device classification API
- World Health Organization, oral health
- CCOHS, OSH answers
- College of Medical Laboratory Technologists of Ontario
An image is only as traceable as the accessories around it. The printable imaging suite log is a free sheet with a column for the equipment check and a column for the accessories used, so a holder and a barrier never share one field. The generator sized to a single imaging room builds the sheet from the number of images a room takes and the equipment it holds, which keeps a two-chair practice from being handed a hospital form. No account and no sign-up are needed to open either one.
Where the class of an accessory or the edition of a safety code needs to be explained for an equipment check, the written answer is the one worth having. Ask a compliance specialist and a written answer comes back specific to your equipment and province, with the regulation or standard it is based on cited.
Related reading
- Bite Blocks in Canada vs the US: Dental X-Ray Positioning
- Intraoral Dental X-Ray Units in Canada vs the US: Which Rules
- Dental Radiography Bite Blocks: Positioning, Sizes and Stocking
CliniEco Medical supplies laboratory, eye care and dental consumables of the kind described in this article. MDEL #35334. This article is written for dental, imaging and procurement professionals and is not safety or regulatory guidance; the operation of x-ray equipment, the shielding used and the records kept belong to the practice's radiation protection programme and to the requirements that apply to it.
Frequently Asked Questions
Are dental x-ray systems Class II in the United States?
Yes. Section 872.1800 covers the extraoral source x-ray system and section 872.1810 covers the intraoral source x-ray system, and both entries place the devices in Class II.
Why is a lead-lined position indicator Class I?
Section 872.1850 describes it as a cone-shaped device lined with lead that is attached to the tube to aid positioning, absorb divergent radiation and prevent leakage, and places it in Class I with a premarket notification exemption subject to 872.9.
Is a dental x-ray film holder regulated?
Yes. Section 872.1905 describes it as a device intended to position and hold x-ray film inside the mouth, and places it in Class I.
What is Canada's guidance for dental x-ray equipment?
Health Canada's Safety Code 30 provides radiation protection guidance for the use of dental x-ray equipment, and the department states that the 2022 document supersedes the previous version of Safety Code 30.
Does a sterility claim change the class of a film holder?
No. The class remains Class I. In the United States, a film holder not labelled or otherwise represented as sterile is exempt from the quality management system regulation in part 820 except for records and complaint files, so the claim changes which quality system requirements apply.
Which records should an imaging suite keep?
Keep each unit and its class separately, the edition of the safety code held, the equipment check and its result, the exposure settings and the reason for each image, the holders and barriers used, and the shielding and positioning accessories in use.
