Paraffin Wax in Canada vs the US: Which Histology Grade Should a Lab Buy?

Quick facts

• Histology paraffin wax is the embedding medium that supports a tissue specimen while it is cut on a microtome. The wax gives the block its mechanical support; it does not fix or preserve the tissue.
• The grade is described by measurable properties, not by brand: melting point, consistency and penetration. Those properties have standard test methods, including ASTM D87 for melting point of petroleum wax and ASTM D1321 for needle penetration.
• Canada and the United States use the same test methods and the same wax families. What differs is the labelling and hazard-communication regime that follows the wax into the building, plus the licensing route if the wax is bundled into a regulated device kit.
• A lab that changes grade between suppliers without re-checking melting point will see it at the microtome, as ribbon chatter, compression or sections that will not float flat.
• Storage matters. Wax takes up water and debris, and a dirty wax bath contaminates every block that passes through it.

Paraffin wax is the wax a histology laboratory uses to infiltrate and embed tissue so that it can be sectioned at a few micrometres. Laboratories buy it by the case, in pellets or blocks, and they buy it against a specification rather than a description. Two labs can order what both suppliers call "histology wax" and receive materials with different melting points and different cutting behaviour, because the phrase describes a family and not a number. Getting the specification straight is the difference between a reliable ribbon and a re-embed.

What is paraffin wax actually doing in the histology workflow?

The wax has one job: it turns soft tissue into a block rigid enough to cut.

The workflow runs dehydration, clearing and then infiltration, in which the clearing agent is replaced by molten wax drawn into the tissue under vacuum or heat. The tissue is then oriented in a mould, more wax is added, and the block is cooled. At the microtome, the wax supports the tissue while the blade advances, and the section floats onto a warm water bath before being picked onto a slide.

Three properties decide whether that works.

Melting point. The temperature at which the wax becomes fluid enough to infiltrate and to embed. A wax that melts too low can soften in a warm room; one that melts too high can damage delicate tissue and needs a hotter embedding station.

Hardness and penetration. How much the wax resists the blade. Softer waxes cut thicker tissue blocks comfortably; harder waxes give thinner, flatter sections but demand a true edge and a stable room temperature.

Ribbon behaviour. Whether sections stay attached to each other as a ribbon as they come off the blade. That is the property a technologist notices first when a supplier changes.

Property	Why it matters at the bench	Standard test method
Melting point	Sets infiltration and embedding temperatures	ASTM D87
Needle penetration / consistency	Predicts blade resistance and section thickness	ASTM D1321
Thermometer accuracy	Every temperature above depends on it	ASTM E1
Ribbon quality	Determines whether sections can be picked cleanly	Bench acceptance test, not a supplier number

The last row is the one that matters most and appears in no catalogue. A laboratory accepting a new wax should cut a control block before the case quantity is released to routine work.

Which grade should a laboratory specify?

Specify the number, not the adjective. The practical approach is to name the melting-point range, the intended section thickness and the tissue types the lab handles, then verify the delivered lot against those three.

Laboratory profile	Wax character to specify	Reasoning
Routine surgical pathology, 3-5 µm	Mid-range melting point, firmer wax	Consistent thin sections on a busy bench
Research with delicate tissue	Softer wax, lower melting point	Less heat and mechanical stress on the specimen
Fatty or dense tissue	Higher melting point, harder wax	Support for tissue that resists infiltration
Teaching lab, mixed work	One mid-range wax plus one soft wax	Covers most blocks without five stock items
Frozen-section adjunct	No change to embedding wax	Cryostat work uses a different medium

Two operational habits keep a lab out of trouble. First, keep the specification on the purchase order so a substitution is visible before it arrives. Second, keep one documented reference wax in the drawer: when a new lot behaves differently, the reference block tells the technologist whether the wax changed or the blade did.

Do Canadian and US laboratories buy the same paraffin wax?

Largely yes, which is why the difference is easy to miss.

The material is the same family of petroleum waxes in both countries, and the test methods in the table above are ASTM methods used on both sides of the border. A Canadian laboratory specifying a melting point by ASTM D87 and a US laboratory specifying by the same method are describing the same measurable property.

Where the two markets part company is downstream of the chemical itself.

Hazard communication and labelling. In Canada the wax arrives under the federal Hazardous Products Regulations (SOR/2015-17) and the workplace WHMIS system; the CCOHS WHMIS guidance explains how supplier labels and safety data sheets are structured. In the United States the same information arrives under the OSHA hazard communication standard, 29 CFR 1910.1200. Both are built on the same classification logic, and the SDS sections a laboratory reads are the same sections.

Device versus chemical. Paraffin wax on its own is a laboratory chemical. Where wax is supplied inside a regulated device or kit, the device pathway applies, and in Canada that means the Medical Devices Regulations (SOR/98-282), where a Class I device reaches the market through an establishment licence under section 45 and a Class II, III or IV device needs a device licence under section 32.

Item	Canada	United States
Wax specification methods	ASTM D87, ASTM D1321, ASTM E1	Same ASTM methods
Hazard communication	Hazardous Products Regulations, SOR/2015-17, under WHMIS	OSHA 29 CFR 1910.1200
Supplier labelling	GHS-aligned supplier label and SDS	GHS-aligned label and SDS
Regulated kit containing wax	Class I via establishment licence, higher classes via device licence	Class I generally exempt from premarket notification, higher classes via 510(k)
Temperature assurance	Calibrated thermometers to ASTM E1	Calibrated thermometers to ASTM E1

The practical consequence for a Canadian laboratory is small but real: when a US supplier's kit is imported, the import side carries the establishment licence obligation for a Class I article, not the laboratory. The laboratory keeps the SDS on file either way.

How should wax be stored and kept clean?

Wax is a consumable that degrades with use, and the degradation is almost always contamination rather than chemistry.

• Keep it dry. Water carried over from a poor dehydration step shows up as a spongy block, not as a wax fault. Store opened containers sealed and away from a wet bench.
• Filter and change the bath. Debris, tissue fragments and old clearing agent accumulate. A dirty bath contaminates every block that passes through it, and the symptom is a section that tears at one edge only.
• Watch the melting-point mismatch. Wax in the bath at the wrong temperature for the wax in the drawer gives the appearance of a bad lot when the setting is wrong.
• Control the room. A warm room softens wax and produces compressed sections. If the same block cuts well in the morning and poorly in the afternoon, the room is part of the answer.
• Log the lot. Recording the melting point and the supplier lot against the blocks produced is what makes a repeat problem diagnosable in ten minutes rather than a week.

What else does a histology bench order in the same cycle?

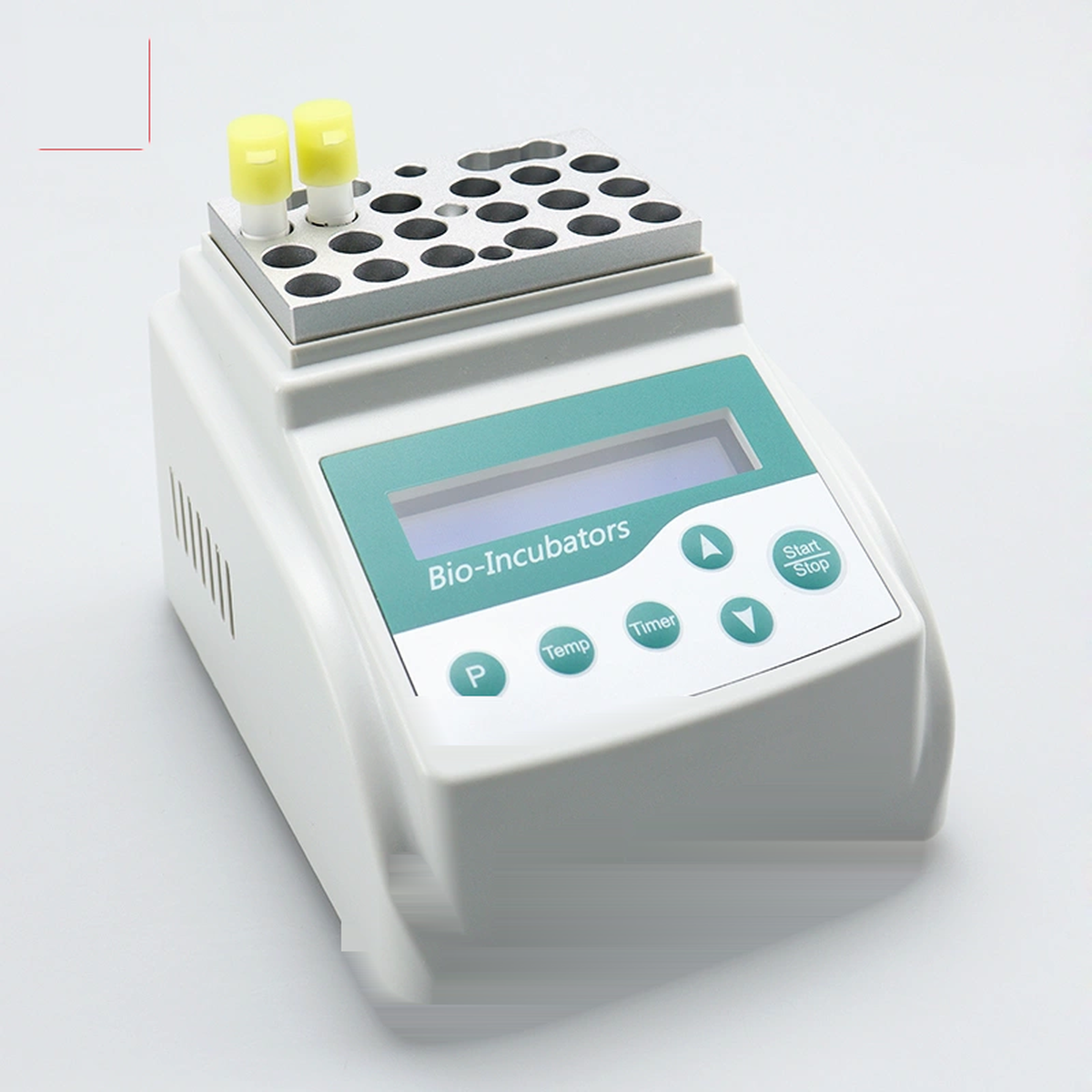

Wax never travels alone. The lines consumed alongside it are the ones that run out at the same time: specimen containers for transport and grossing, wipes for bench cleaning, gloves, and the incubators and warming equipment that hold temperature steady during infiltration and slide preparation.

Holding these on one standing order matters more in a laboratory than in a clinic, because a histology batch cannot be paused. A case quantity of wax and the containers it moves in is a planned purchase; an emergency purchase at 4 p.m. is a delayed report.

Sources

1. ASTM D87, Standard Test Method for Melting Point of Petroleum Wax
2. ASTM D1321, Standard Test Method for Needle Penetration of Petroleum Waxes
3. ASTM E1, Standard Specification for ASTM Liquid-in-Glass Thermometers
4. ASTM D87-23 standard record (Accuris/BSB Edge)
5. Hazardous Products Regulations, SOR/2015-17
6. CCOHS, WHMIS and GHS guidance
7. OSHA, 29 CFR 1910.1200 Hazard communication
8. Medical Devices Regulations, SOR/98-282
9. Transportation of Dangerous Goods Regulations, SOR/2001-286
10. WHO, Laboratory Biosafety Manual, 4th edition
11. Public Health Ontario, Specimen acceptance criteria
12. Public Health Ontario, Test information index
13. CLSI, standards programme
14. CLSI, about the institute
15. Deutsches Institut für Normung
16. ASTM International, standards catalogue
17. Canadian General Standards Board

Ordering for a clinic, laboratory or care home? Wholesale and multi-site ordering covers account setup and case pricing, and the B2B wholesale collection lists the lines stocked for institutional buyers. Sites that also run an in-house sterilizer can start with the biological indicator 5-pack trial.

Related reading

• Serum separator tubes and the order of draw: what changes at the border
• Diagnostic laboratory supply checklist
• Cutting sample rejection rates: six failure modes for Canadian labs

Frequently Asked Questions

What is paraffin wax used for in a laboratory?

It is the embedding medium in histology. Molten wax infiltrates the dehydrated tissue, the tissue is oriented and embedded in a block, and the cooled wax supports the specimen while it is cut into thin sections on a microtome.

Which paraffin wax grade should a lab buy?

Specify the number rather than the adjective: the melting-point range, the section thickness the lab works at, and the tissue types handled. Prove the choice with a control block before releasing a new lot to routine work.

How is paraffin wax specified?

By measurable properties, including melting point under ASTM D87 and needle penetration under ASTM D1321, with thermometer accuracy traceable to ASTM E1. Those three methods describe the properties a technologist actually notices at the microtome.

Do Canadian and US labs use different paraffin wax?

They use the same wax families and the same ASTM test methods. The difference is downstream: hazard communication and supplier labelling follow Canadian WHMIS under the Hazardous Products Regulations in Canada and the OSHA hazard communication standard in the United States.

Why do sections tear or compress?

Usually not the wax. Room temperature, blade condition, the wax bath temperature relative to the wax melting point, and water carried over from incomplete dehydration all produce the same symptom. A reference block and a lot log separate a wax problem from a bench problem.

How often should the wax bath be filtered or changed?

There is no single interval, because it depends on volume and on how clean the upstream processing is. The rule is to treat the bath as a contamination source: filter and change on a defined schedule, and change immediately when fragments or clearing agent are visible.

Does paraffin wax need a safety data sheet?

Yes. It is a laboratory chemical, so the supplier provides a safety data sheet and a GHS-aligned label. In Canada the labelling follows WHMIS under the Hazardous Products Regulations, and in the United States it follows the OSHA hazard communication standard.
