What Is a Biological Indicator? Definition, Core Organism, and Steam Autoclave Formats
A biological indicator (BI) for an autoclave is a small test device that carries a standardized, defined population of highly heat-resistant bacterial spores through a sterilization cycle, and then supports incubation so staff can see whether that cycle actually killed them.
A cycle log that shows 134 °C for four minutes tells you what the chamber did. It does not tell you what happened to the organisms on the load. A biological indicator answers a narrower and harder question: was the microbial kill in this cycle enough to inactivate a known, resistant population? That is why the result is called biological lethality rather than a temperature record. When a steam cycle is challenged by an air pocket, an overloaded chamber or a worn door gasket, the gauge can still read correctly while the kill inside a wrapped tray does not.
Which Organism Does a Steam Biological Indicator Use?
Steam biological indicators are built around Geobacillus stearothermophilus, formerly Bacillus stearothermophilus, and a compliant label names the culture collection number, usually ATCC 7953, with the spore population. It is a thermophile whose spores are more resistant to moist heat than the organisms a steam cycle is meant to inactivate, so their destruction is conservative evidence that the cycle did its work. Suppliers cannot substitute a weaker strain: identity, population and resistance are fixed by standard, which is why a 24-hour self-contained indicator from one manufacturer can be compared with another on the same terms.
The resistance figure that matters is the D-value, the time at a stated temperature needed to reduce the population by 90%. Because these spores hold their resistance at 121 °C and above, a pass shows that the coldest part of the load saw enough moist heat for long enough, not that the chamber air reached set point.
What Formats Do Biological Indicators Come In?
Four formats account for almost everything sold to Canadian clinics, and they differ in how a result is read and how much handling the carrier needs — not in what they prove.
| Format | How the result is read | Where it fits | What to watch |
|---|---|---|---|

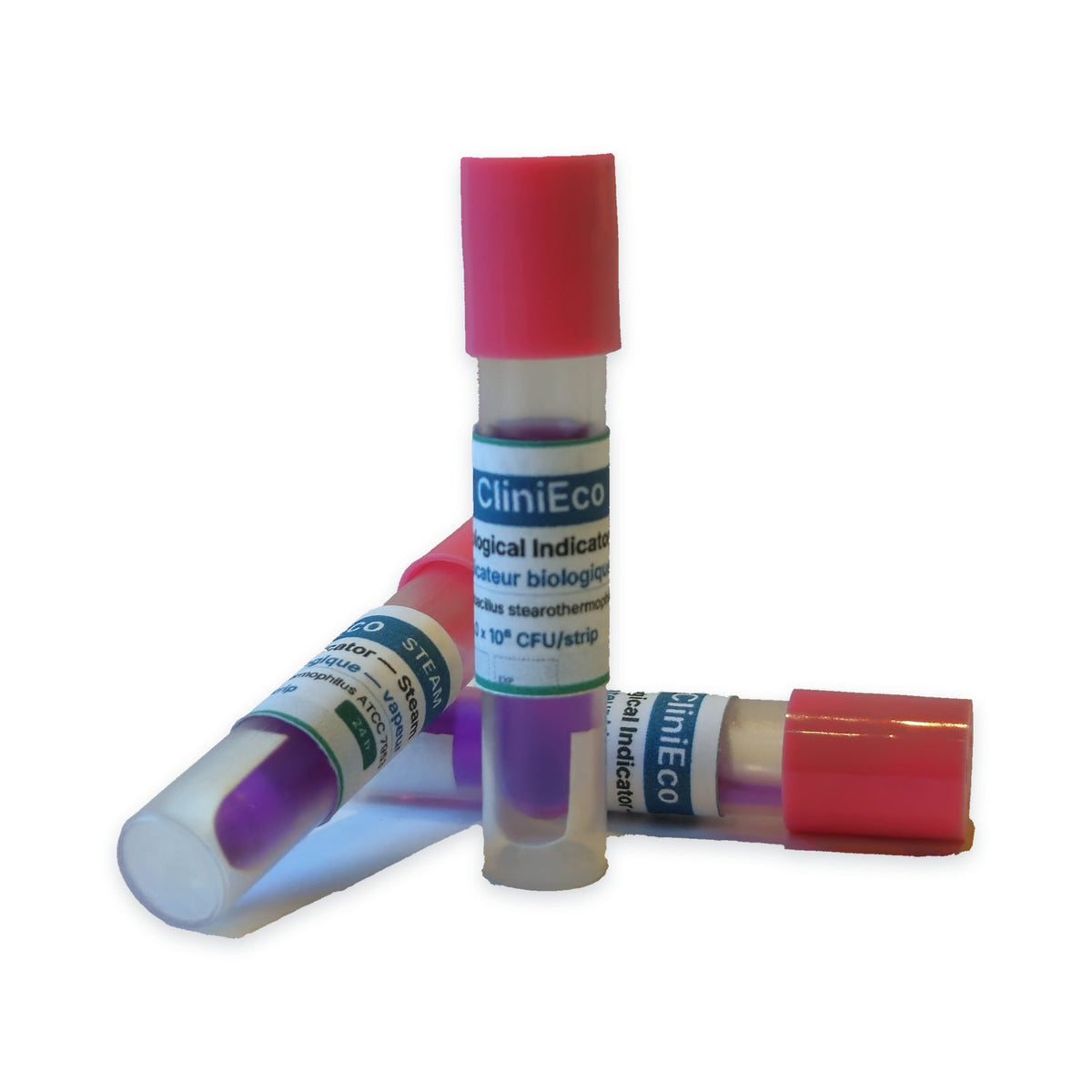

| Self-contained vial | Spore carrier and growth medium in one tube; colour change after incubation | Most steam cycles, wrapped trays and pouches | Incubator temperature and a daily control |
| Paper spore strip | Strip transferred to culture medium after the cycle, then incubated | Narrow lumens and load positions where a tube will not sit | The transfer is the open handling step; log who and when |
| Sealed glass ampoule | Ampoule crushed to release medium onto the carrier, then incubated | Older steam workflows on ampoule systems | Crush force and glass handling; cool before reading |
| Rapid-readout fluorescent vial | Fluorescence from an enzyme in surviving spores, read in a reader | Same-day release where instruments cannot wait overnight | The reader is part of the system; if it is down, the readout stops |
The format question is mostly a handling question. If your team can keep a tube upright and an incubator at 56–60 °C, a self-contained vial removes the transfer step entirely. Our comparison of self-contained, strip and ampoule formats across six suppliers sets out how pack sizes and handling differ if you are moving between systems. Every steam format we stock sits in the sterilization monitoring collection beside chemical indicators, tape and pouches.
What Does ISO 11138-1 Require?
ISO 11138-1:2017 is the general requirements part of the biological indicator series, and it is what a supplier's label is measured against. It covers what must be stated and demonstrated for the test organism: strain identity and culture collection number, a defined population count, resistance as a D-value at stated conditions, and the survival and kill times that bracket a cycle. It reaches the population's uniformity across a lot, the carrier material, the culture medium and the label data — lot number, population, D-value and expiry.
Part 3 is the part that applies to steam: ISO 11138-3:2017 addresses biological indicators for moist heat sterilization. Part 2 covers ethylene oxide, part 4 dry heat and part 5 low-temperature steam and formaldehyde, so a steam product is not interchangeable with an ethylene oxide product even when the vial looks the same. On the Canadian side, CSA Z314:23 sets out sterilization practice for health care settings and leaves indicator performance to this ISO series, which is why an inspection asks for the stated population and D-value. We keep a walkthrough of what the 11138 series covers for teams that need the parts laid out side by side.
How Long Does Readout Take?
Readout time is a property of the detection method, not of how many spores are on the carrier. The faster tiers detect an enzyme or a fluorescence signal from spores that survived; the 24-hour tier waits for visible growth in the medium. All four tiers below are in current Canadian clinic use.
| Readout tier | Detection method | Time to result | What it changes in the working day |
|---|---|---|---|
| 20-minute | Fluorescence from an enzyme in surviving spores, read in a reader | 20 minutes | An urgent tray can leave in the same shift |
| 1-hour | Fluorescence read in a reader | 60 minutes | Two or three cycles can be cleared before an afternoon list |
| 3-hour | Fluorescence read in a reader | 3 hours | Most of a working day is covered; evening loads wait |
| 24-hour | Growth and colour change in medium held at 56–60 °C | Up to 24 hours | Release moves to the next morning and overnight loads hold instruments |
The 20-minute and 3-hour tiers we stock share one fluorescence principle, so moving between them changes the wait, not the mechanism: see the 20-minute readout pack and the 3-hour fluorescence pack. Whichever tier is chosen, the record must show readout time, incubator temperature and the control result; a fast result that is not written down is not evidence.
Which Uses Sit Outside the Definition?
Two situations look like biological indicator use and are not. A Bowie-Dick test checks air removal and steam penetration in a pre-vacuum chamber, and a passing sheet says nothing about spore kill. Parametric release uses physical measurements from the sterilizer in place of a routine indicator result, and it only holds where the process has been validated in writing for that load pattern. Neither replaces the spore test unless the documented protocol says so.
Comparing systems rather than looking up a definition? The sample request route is the shortest way to hold a format before committing to a pack size, and facilities ordering across sites can open a wholesale and institutional account for case quantities and purchase-order billing.
References
- ISO 11138-1:2017 Sterilization of health care products — Biological indicators — Part 1: General requirements (checked 25 October 2026)
- ISO 11138-3:2017 Biological indicators for moist heat sterilization processes (checked 25 October 2026)
- Public Health Ontario — Infection prevention and control (checked 25 October 2026)
Printable companion: the free sterilization log sheet lays out the fields an inspection asks for, so the record is written down as you work instead of reconstructed later.
Want the sheet filled in for your cycle type rather than a blank form? The sterilization log generator prints a record with the columns your reprocessing documentation needs.
Not sure how this applies to your own setup? Ask a sterilization compliance specialist — you’ll get a written answer specific to your equipment and province, with the regulation or standard cited.
Related Reading
- How Do You Read a Biological Indicator Result Before Releasing a Load?
- 20-Minute vs 1-Hour vs 3-Hour vs 24-Hour: Which Biological Indicator Readout Fits Your Clinic?
- What Do You Do With a Load After a Positive Biological Indicator?
Frequently Asked Questions
What is the difference between a biological indicator and a chemical indicator?
A chemical indicator changes colour in response to the physical conditions of a cycle — temperature, steam and time — and it is read the moment the load comes out. A biological indicator carries live spores with a defined resistance and needs incubation, from 20 minutes to 24 hours depending on the tier, before a result exists. The chemical indicator shows exposure to the process; the biological indicator shows that the process killed a resistant population. Canadian clinic protocols generally call for both.
How many spores does a biological indicator contain?
Commercial steam biological indicators typically state a population between 1 x 10^5 and 1 x 10^6 spores per carrier, and that figure is printed on the label because ISO 11138-1 requires it. The population matters twice over: it sets the survival and kill times a manufacturer can claim, and it lets you compare two products on equal terms. A label with no stated population, no stated D-value and no lot number will not answer the question an inspector asks, so a missing population figure is a reason to look at another supplier.
Why is the control vial incubated with the test vial?
The control is an unsterilized indicator from the same lot, incubated at the same time and the same temperature, and its job is to prove the spores were alive and the incubation conditions were right. If the control grows and the test vial does not, the result is a pass. If neither grows, the lot or incubator is the problem rather than the sterilizer, and the test repeats with a fresh lot. Run one control every test day and record it beside the result.
Does a passed biological indicator release a load immediately?
Not by itself. A pass is one condition for release, and it is read together with the chemical indicator, the cycle record and the load log. With a 24-hour indicator, most clinics hold the load overnight or work to a parametric release protocol agreed in writing. With a 20-minute or 1-hour readout, a tray can be released in the same shift once the result is recorded. What inspectors want to see is one consistent written rule saying which result lets a tray leave the sterilization area.
Can a biological indicator be used for every sterilization type?
No, the organism and the format have to match the process. Steam uses Geobacillus stearothermophilus spores, while ethylene oxide and other low-temperature processes use Bacillus atrophaeus, and the ISO 11138 series separates them: part 2 for ethylene oxide, part 3 for moist heat, part 4 for dry heat and part 5 for low-temperature steam and formaldehyde. A steam indicator placed in an ethylene oxide cycle proves nothing about that cycle. Order by the process you run, and keep the two stocks apart if your clinic runs both.
