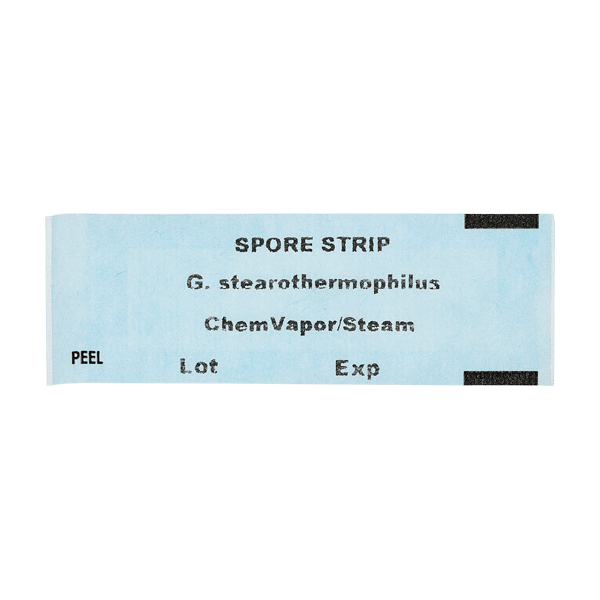

CliniEco spore strip biological indicator for steam and chemical vapour cycles, with blank lot and expiry fields

Steam Sterilization Cycle Types: Gravity vs Pre-Vacuum vs Flash, Which Cycle Fits the Load?

Most sterilization rooms run one cycle for everything. A cycle list is really a decision list, and it turns on one question: how does the air leave the chamber? Gravity, pre-vacuum and flash cycles answer that differently, and the answer settles which loads the cycle can process and what the record has to show.

Which steam sterilization cycle type does your load need?

Three cycle types cover nearly every dental, clinic and laboratory steam sterilizer. They are not interchangeable even when the chamber looks identical, because air removal sets the load limit before the timer starts.

Cycle type How air is removed Loads it fits Typical published parameters
Gravity displacement Steam enters, meets cooler air and pushes it down and out through the chamber drain Solid instruments, simple trays, lightly wrapped items 121 C at 15 psi for about 21 minutes
Pre-vacuum (vacuum-assisted) A vacuum pump or repeated steam-pressure pulses empty the chamber before exposure Porous and hollow loads: wrapped trays, cassettes, handpiece lines 132 C at 21 psi for about 5 minutes
Flash / immediate-use (IUSS) The air-removal method the machine supports, run without packaging Unwrapped items needed immediately, emergency use only Set by the sterilizer manufacturer for that cycle

Packaging has to match the cycle, not the other way round. A Class 4 dual indicator pouch and a heat-seal roll stock are the two formats most clinics standardise on, and both are validated for steam cycles rather than for dry heat or chemical vapour.

How does a gravity-displacement cycle remove air?

In a gravity cycle the steam does the pushing. It enters high in the chamber, meets the cooler air and drives that air down and out through the drain. Nothing pulls the air out, so the load has to be arranged as the manufacturer expects: solid items, space between packs, no dead-ended lumens. Published equipment classifications reflect that limit, listing gravity units for solid instruments and vacuum-assisted classes for porous and hollow loads.

Rolls of CliniEco autoclave indicator tape, the external check applied to every pack that enters a steam cycle

Monitoring a gravity cycle is still daily in Ontario. Autoclave indicator tape shows only that the pack entered a steam cycle; it never confirms that the load was sterile, which is why it counts as one check, not the whole program.

Gravity vs pre-vacuum vs flash: cycle comparison

Print this table and post it beside the sterilizer log. Print this table

Cycle How air leaves Typical hold Load it suits Monitoring
Gravity displacement Steam pushes air down and out Longer hold, 121 °C range Simple, low-density loads Chemical indicator plus a scheduled BI
Pre-vacuum A vacuum pump removes air first Shorter hold, 134 °C range Wrapped and porous loads Bowie-Dick test plus a scheduled BI
Flash (immediate use) Rapid air removal, unwrapped Minutes One item needed right away Record why it was used; not for implants

The cycle follows the load: gravity for simple loads, pre-vacuum when air must be pulled from wrapped or porous items, and flash only for an item used immediately. In Ontario, a biological indicator is run each day the sterilizer is used and for each cycle type used that day.

What does a pre-vacuum cycle add that gravity cannot?

A pre-vacuum cycle removes the air mechanically. A vacuum pump, or a series of steam-pressure pulses, empties the chamber before exposure, so steam reaches wrapped, porous and hollow loads that a gravity cycle handles unevenly. The trade-off is a second layer of verification: air removal is the mechanism the cycle depends on.

In Ontario that verification is daily: a pre-vacuum sterilizer requires an air-detection test pack, such as a Bowie-Dick style pack, in an empty chamber every day the sterilizer is used. The provincial checklist treats that item as a high-risk requirement, not a housekeeping task.

What is a flash (immediate-use) cycle, and when is it acceptable?

Flash sterilization and immediate-use steam sterilization (IUSS) are two names for the same cycle, and neither is a routine route. The published position is that IUSS is reserved for specific, exceptional situations rather than planned instrument flow, with the load left unwrapped and used immediately.

CliniEco spore strip biological indicator for steam and chemical vapour cycles, with blank lot and expiry fields

Cycle type does not exempt a load from monitoring. Ontario's checklist requires a biological indicator in a process challenge device each day the sterilizer is used and with each type of cycle used that day. A practice running a wrapped cycle and a flash cycle on the same machine is placing two indicators that day, not one.

How do Canadian and US rules differ on monitoring each cycle type?

The two systems begin from different documents, and the difference shows up in what a log has to demonstrate.

Item Canada United States
Reprocessing standard CSA Z314, Canadian medical device reprocessing, cited by provincial guidance ANSI/AAMI ST79:2017 with Amendments A1-A4, FDA recognized as number 14-562
Standard listing CSA Z314 has no record in the FDA recognized standards database (searched 27 September 2026) ST79 is listed as a recognized standard for the sterility area
Biological monitoring, dental practice Ontario: a biological indicator in a process challenge device each day the sterilizer is used and with each cycle type used that day; the RCDSO standard uses the same daily wording Weekly biological-monitoring baseline associated with CDC guidance and AAMI ST79
Pre-vacuum air removal Test pack in an empty chamber every day the sterilizer is used Air-removal testing as specified by ST79 and the sterilizer manufacturer
Implant loads A biological indicator in every load containing implants; release only after the result The same principle, written into ST79 and facility policy

The practical consequence is consumable volume. A five-day practice running one cycle type needs roughly one indicator per working day per sterilizer in Ontario. Add a second cycle type on the same machine and the annual count doubles without a second sterilizer being bought, which is why indicator planning belongs per sterilizer and per cycle.

How is each cycle type validated and recorded?

Validation and monitoring are both cycle-specific. ISO 17665, the moist heat standard recognized for medical device sterilization (first edition 2024-03, FDA recognition 14-601), frames validation through installation, operational and performance qualification: the cycles a facility actually runs are the ones that have to be qualified, and a major repair or relocation sends the unit back to requalification.

A 24-hour biological indicator 25-pack is the format that pairs with a daily routine. Routine monitoring then has to show, day by day, that the qualified cycle performed. The record an inspector can reconstruct includes the sterilizer identifier, the cycle type, load contents, physical parameters, the chemical indicator result and the biological indicator result, with the control recorded alongside. One spore line with no cycle type cannot show that.

Indicator strips, vials and readers sit in the sterilization monitoring collection.

Ordering for a clinic, lab or care home? Wholesale and multi-site ordering covers case pricing and account setup, and the B2B wholesale collection lists the lines stocked for institutional buyers.

References

  1. ANSI/AAMI ST79:2017 plus Amendments A1-A4, FDA recognized standard 14-562 (checked 27 September 2026)
  2. Public Health Ontario, IPAC dental reprocessing checklist, items 7.13-7.18 (checked 27 September 2026)
  3. RCDSO, reprocessing and spore testing in the dental office (checked 27 September 2026)
  4. ISO 17665 Moist heat, first edition 2024-03, FDA recognized standard 14-601 (checked 27 September 2026)
  5. Steam sterilization review: autoclaves, validation, reprocessing (checked 27 September 2026)

Gravity, pre-vacuum and flash cycles suit different loads, and each still needs the same spore-test evidence behind it. Clinics, long-term care homes and laboratories in Canada can order the 24-hour biological indicator 25-pack of 24-hour biological indicators, with shipping covered.

Where to Buy Biological Indicators in Canada

CliniEco Medical supplies these from Ontario with published CAD pricing (MDEL #35334) — no quote required, and each pack ships with the lot number printed on it so your monitoring record stays traceable.

Format Pack size Price (CAD)
24-hour self-contained 25-pack $69.99 Order
24-hour self-contained 100-pack $189.00 Order
3-hour rapid fluorescence 50-pack $249.99 Order

Round Out Your Sterilization Setup

A biological indicator is one link in the chain — these are the pieces it works with:

Which format does your sterilizer actually need?

Match the readout time to how fast you need the result: a 24-hour self-contained indicator works in any gravity or pre-vacuum cycle with a standard incubator, while a 3-hour fluorescence tube needs the matching reader. Running one cycle type per day, the 25-pack covers a month; busier clinics move to the 100-pack and cut the per-test cost.

How much do spore tests cost in Canada?

Published pricing runs $2.80 per test on the 25-pack down to $1.89 on the 100-pack — no distributor quote, no account needed.

Not sure which format your sterilizer needs? Generate a free sterilization log sheet first — it maps your cycles and tells you the pack size that fits. Questions about your setup? Ask a Compliance Specialist.

Related Reading

Each cycle type needs its own line in the record: blank sheets and a log generator sit in the compliance log centre, and cycle-selection questions can go to a sterilization compliance specialist.

Frequently Asked Questions

Which cycle type should a dental office use for wrapped instruments?

A wrapped or porous load needs air removal that gravity alone does not provide. Practices processing wrapped cassettes and handpieces run a pre-vacuum cycle and keep gravity for simple solid loads, following the cycle list the manufacturer validated.

Can a flash cycle replace a regular wrapped cycle?

No. Immediate-use steam sterilization is reserved for specific, exceptional situations, and items processed that way stay unwrapped and are used at once. It is not a substitute for packaging that keeps a load sterile until it is needed.

How often must a biological indicator be run in Ontario?

Ontario dental guidance requires a biological indicator in a process challenge device each day the sterilizer is used and with each cycle type used that day. A practice running two cycle types places two indicators that day, not one.

Does a gravity cycle need a Bowie-Dick test?

The daily air-detection test belongs to pre-vacuum units, where air removal is the mechanism being verified. The Ontario dental reprocessing checklist applies the empty-chamber test pack to pre-vacuum sterilizers, not to gravity-displacement units.

Is CSA Z314 recognized in the United States?

No. A search of the FDA recognized consensus standards database returns no record for CSA Z314, while ANSI/AAMI ST79:2017 is listed. A facility working in both countries is therefore following two different standard sets.
