The short answer to that request: compatibility is decided by the cycle type, not by the brand of the strip. On a Ritter M9 — a benchtop, front-loading steam sterilizer with a pre-vacuum phase — Class 5 integrators and Class 6 emulators are the safe internal indicators for pouched and wrapped loads, Class 1 tape or the pouch's own external print covers the outside, and the packaging has to be a paper/film or roll-stock format rated for the cycle temperature and small enough to lie flat. Verify the cycle marking on your own unit's data plate before you place a consumables order.
Please Confirm Which Chemical Indicator Classes and Pouch Types Are Compatible With the Ritter M9?
Work through the decision in one order. First, identify the cycle type the unit runs — N, B or S. Second, decide which indicators sit outside the pack and which sit inside it. Third, choose packaging that is rated for that cycle and fits the chamber. A pre-vacuum benchtop unit such as the M9 pulls air out before steam enters, which is what lets it process wrapped, pouched and lumened loads; that is also why an external process indicator alone is not enough evidence for those loads. Class 5 integrators give you a single read of the critical variables and are the conventional internal indicator for wrapped sets.
How do N, B and S cycle types change the indicator you choose?
An N cycle has no vacuum stage and is intended for unwrapped solid instruments. Those loads get an external process indicator and, where your policy requires it, a Class 4 or Class 5 internal strip in the tray. A B cycle is a pre-vacuum cycle intended to process any load that fits, including pouched and wrapped items and hollow loads, so it needs internal indicators that read all critical variables — Class 5 or Class 6 — plus a Bowie-Dick check on the cycle. An S cycle is validated by the manufacturer for a specific load type, and the indicator class should match whatever that validation statement covers.
Which pouch and wrap formats fit an M9 chamber?
Paper/film peel pouches are the default for single instruments and small sets. Because a benchtop chamber is small, choose a pouch that leaves a sealed margin around the instrument and still lies flat with space on every side. Non-woven wrap suits cassettes and multi-instrument sets where a pouch would be too tight. Sterilization roll stock is cut to length and sealed on site, which is efficient for high pouch volumes but puts the seal quality in your hands, so a constant-heat sealer check belongs in the routine. Rigid containers are used where the load needs physical protection, and they still require an internal indicator.
| Load type | Suggested indicator class | Packaging format |
|---|---|---|
| Unwrapped solid instruments on a tray | Class 1 external; Class 4 or Class 5 internal where policy requires | Open tray with external tape |

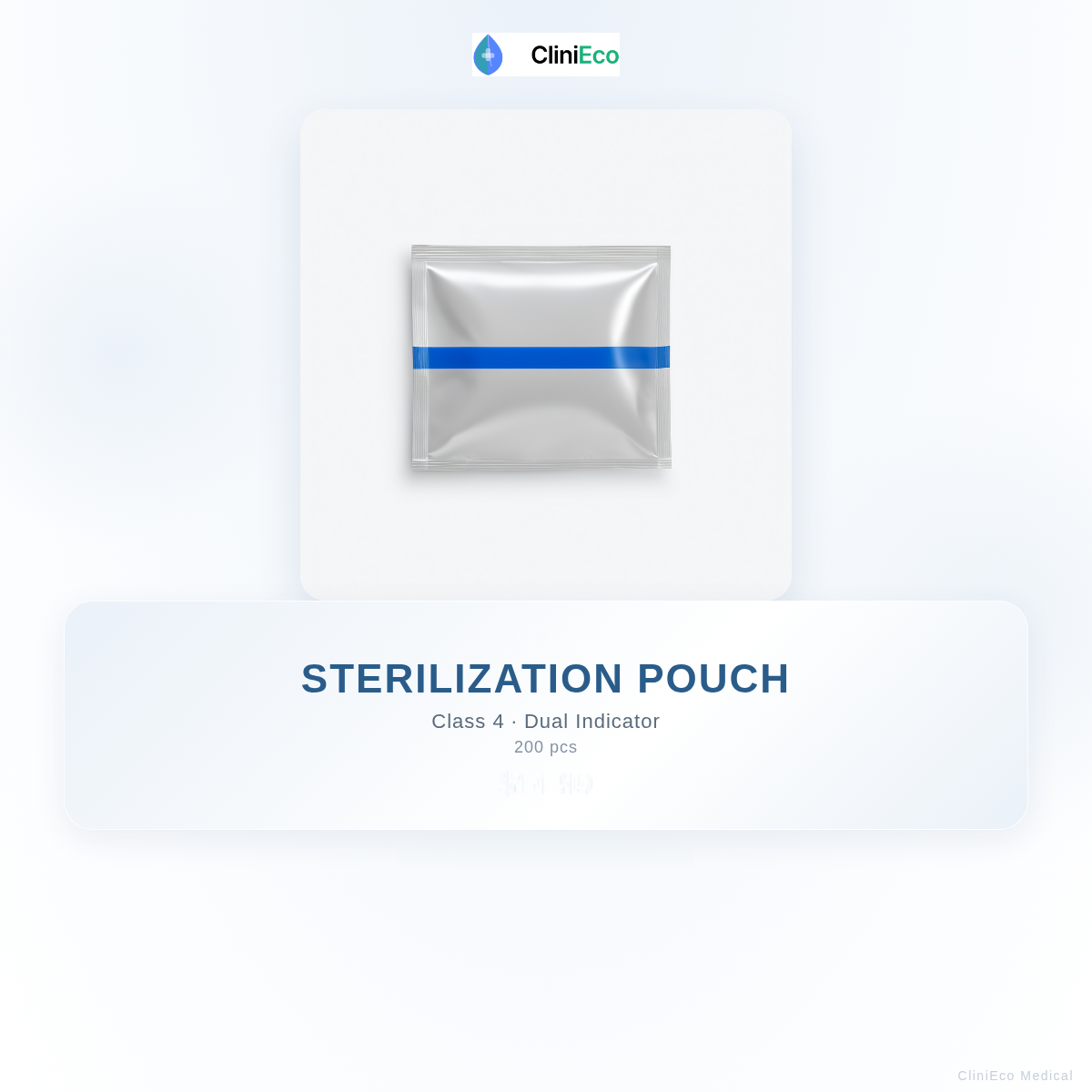

| Single pouched instrument | Class 1 external on the pouch; Class 4 or Class 5 internal | Paper/film peel pouch, correct size |
| Wrapped cassette or set | Class 5 or Class 6 internal; Class 1 external | Non-woven wrap, two-layer where needed |
| Hollow or lumened items | Class 5 integrator, placed in the lumen or in a process challenge device | Pouch or wrap within length limits |
| Roll stock cut and sealed on site | Class 5 internal; Class 1 external | Sterilization roll, seal width checked |
| Pre-vacuum start-of-day check | Class 2 Bowie-Dick | Test pack or test sheet |
Why does load preparation matter as much as the indicator class?
Because no indicator can report steam that never arrived. Leave space between packs and between packs and the chamber wall, keep pouches in a single layer, do not exceed the load weight your manual states, and let the drying stage finish before you open the door — a wet pouch seal is a compromised seal. Load pouches so air can leave and steam can replace it, which is the reason for the paper-side loading guidance already in your SOP.
What should each M9 cycle record include?
Record the date and time, cycle type, cycle number, the sterilizer identifier, the load in brief, the internal indicator class and result, the external indicator result, and the biological indicator result with its incubation outcome. Add any maintenance note against the same row. With daily monitoring in Ontario, that row is the first evidence an inspector reads, which is why the indicator class belongs on the record.
Ordering for a clinic, lab or care home? Wholesale and multi-site ordering covers case pricing and account setup, and the B2B wholesale collection lists the lines stocked for institutional buyers.
Related reading
Sterilization compliance hub What is a Class B autoclave? Chamber design and cycle types Matching chemical indicator classes to pouch and pack types Which side up? Loading sterilization pouches paper-side vs film-side BI 5-pack trial at $12.99 Class 4 dual-indicator sterilization pouches
Frequently Asked Questions
Can a Class 4 pouch indicator be used on a Ritter M9?
Yes, for everyday pouched instrument loads. The pouch's internal indicator reads two or more critical variables, which satisfies the internal indicator requirement on a pre-vacuum cycle.
Do I need a Bowie-Dick test on an M9?
On a pre-vacuum sterilizer, a Bowie-Dick test is the standard start-of-day air-removal check. It is a Class 2 indicator and it tests the cycle, not the load.
Does the pouch have to be a specific brand?
No. The requirement is that the pouch material is rated for the cycle temperature, seals cleanly, and is small enough to lie flat without touching the chamber.
What is the biggest compatibility mistake?
Overloading. Packs that touch each other or the chamber wall block steam and air movement, and no indicator class can compensate for a load that was built wrong.
