Quick facts
- A crown is a material system, not a single product: the framework, the veneering ceramic and the luting cement each have their own specification.
- Canada: Schedule 1 of the Medical Devices Regulations puts all denture materials and orthodontic appliances and their accessories in Class II, and classifies dental instruments separately in Class I.
- United States: the framework alloy has its own entry. A noble metal alloy and a base metal alloy intended for cast or porcelain-fused-to-metal crown and bridge restorations are each Class II (special controls).
- Metal and ceramic cannot be qualified separately. ISO 9693-1:2012 tests the composite structure of the two materials together and does not apply to either one used alone.
- Cement is split by chemistry. Under 21 CFR 872.3275 zinc oxide-eugenol cement is Class I, while dental cement other than zinc oxide-eugenol is treated separately in the same section.
- The chairside cost of a crown case is dominated by consumables: isolation, suction, impression or scan materials, and reprocessing chemistry.
A crown case fails in one of three places. The framework material is specified without a standard behind it, the ceramic is qualified without testing it against the metal it sits on, or the cement is chosen for handling rather than for what it has to hold. All three are specification failures, visible before the case starts.
This article sets out what each material has to meet, and how the two countries classify the same crown differently.
What materials does a crown use, and what does each one have to meet?
A crown is a layered device. Each layer has a different job and a different document behind it.
- The framework. Metal-ceramic crowns use a cast alloy, either a noble alloy built on gold, palladium, platinum or silver, or a base metal alloy built on nickel, chromium or cobalt. All-ceramic crowns replace the metal with a high-strength ceramic.
- The veneering ceramic. The esthetic layer, bonded or built onto the framework.
- The luting material. The cement or resin that holds the restoration to the tooth, which for polymer-based systems is defined by the same standard that covers direct restorative materials.
The material standards are specific about which layer they cover. ISO 6872:2015 specifies the requirements and the corresponding test methods for dental ceramic materials for fixed all-ceramic and metal-ceramic restorations and prostheses. ISO 22674:2016 classifies metallic materials suitable for the fabrication of dental restorations and appliances, including materials recommended for use with or without a ceramic veneer, or for both uses, specifies their requirements, and specifies requirements for packaging and marking and for the instructions supplied for use, including products delivered for sale to a third party. ISO 4049:2019 sets requirements for dental polymer-based restorative materials supplied in a form suitable for mechanical mixing, hand-mixing, or intra-oral and extra-oral external energy activation, intended primarily for the direct or indirect restoration of teeth and for luting, and its luting materials are intended for the cementation or fixation of restorations and appliances such as inlays, onlays, veneers, crowns and bridges.
| Material layer | Standard of record | What it controls | What the buyer should ask for |
|---|---|---|---|
| Ceramic for all-ceramic and metal-ceramic restorations | ISO 6872:2015 | Requirements and test methods for the ceramic | The material's stated category and the test data behind it |
| Metallic framework material | ISO 22674:2016 | Classification and requirements, plus packaging, marking and instructions | The alloy's declared type and its accompanying instructions for use |
| Ceramic bonded to metal | ISO 9693-1:2012 | Compatibility of the pair, tested as a composite structure | Evidence that the specific metal and ceramic combination was tested together |
| Polymer-based restorative and luting material | ISO 4049:2019 | Requirements by mixing and activation route, including luting | The activation route and the intended restoration types |
| Cement | Depends on chemistry and on the intended use | Temporary filling, base cement or fixation of a crown or bridge | Whether it is zinc oxide-eugenol or another chemistry |
Why can the metal and the ceramic not be qualified separately?
Because the interface is where the failure mode lives, and the interface only exists when the two materials are used together.
ISO 9693-1:2012 specifies test methods for determining the compatibility of metallic and ceramic materials used for dental restorations by testing the composite structure. It states that its requirements are applicable to metallic materials and ceramics when used in combination, and are not applicable to either metallic materials or ceramics when used alone.
That single sentence changes what a laboratory or a clinic should be holding. Two certificates of compliance, one for the alloy under ISO 22674:2016 and one for the ceramic under ISO 6872:2015, do not establish that the pair is compatible. The pair has to be tested as a pair, which is why the mill certificate and the ceramic data sheet are not interchangeable evidence.
Is a crown material classified the same way in Canada and the United States?
No, and the two systems draw their lines in completely different places.
In Canada, the Medical Devices Regulations, SOR/98-282 classify by rule. Rule 3 of Schedule 1 states that, despite rules 1 and 2, all denture materials and orthodontic appliances and their accessories are classified as Class II, that all surgical or dental instruments are classified as Class I, and that all latex condoms are classified as Class II. The same schedule also reaches the framework directly: Rule 1(1) provides that, subject to subrules (2) and (3), all surgically invasive devices are classified as Class II, and Rule 4(1) places non-invasive devices intended to come into contact with injured skin in Class II, with subrule (2) moving devices used as a mechanical barrier, for compression or for absorption of exudations down to Class I.
The practical result is that the material and the instrument are classified on different rules: the material system lands in Class II territory, while a dental instrument such as a scaler is Class I.
In the United States, the classification attaches to the specific device in the mouth rather than to the material category. Under 21 CFR 872.3060 a noble metal alloy intended for the fabrication of cast or porcelain-fused-to-metal crown and bridge restorations is Class II (special controls), with the special control being the FDA guidance document for dental noble metal alloys, and the device is exempt from premarket notification subject to the limits in § 872.9. 21 CFR 872.3710 treats a base metal alloy built primarily on nickel, chromium or cobalt for the same restorations the same way: Class II (special controls), with the special control being the guidance document for dental base metal alloys, and the same exemption subject to § 872.9.
The same subpart covers the rest of the case. A tooth shade resin material composed of materials such as bisphenol-A glycidyl methacrylate and intended to restore carious lesions or structural defects in teeth is Class II. A temporary crown and bridge resin is Class II. A preformed crown made of plastic or austenitic alloys or alloys containing 75 percent or greater gold and metals of the platinum group is Class I (general controls) and exempt from premarket notification, and a resin tooth bonding agent is Class II.
| Item | Canada | United States |
|---|---|---|
| Where the rule sits | Schedule 1 of the Medical Devices Regulations | Named entry per device in 21 CFR part 872, subpart D |
| Material category | All denture materials and orthodontic appliances and their accessories are Class II under Rule 3 | No equivalent category rule; each entry carries its own class |
| Noble metal framework | Assessed under the general rules applicable to the device | 872.3060, Class II (special controls) |
| Base metal framework | Assessed under the general rules applicable to the device | 872.3710, Class II (special controls) |
| Instrument used chairside | All surgical or dental instruments are Class I under Rule 3 | Class set by the instrument's own entry |
| Temporary restoration resin | Falls to the material rules | 872.3770, Class II |
Does the cement follow the same logic?
No, and the cement is where a purchasing decision most often goes unexamined.
21 CFR 872.3275 splits dental cement by chemistry rather than by indication. Zinc oxide-eugenol is a device composed of zinc oxide-eugenol intended to serve as a temporary tooth filling or as a base cement to affix a temporary tooth filling, to affix dental devices such as crowns or bridges, or to be applied to a tooth to protect the tooth pulp, and it is Class I (general controls), exempt from premarket notification subject to § 872.9. Dental cement other than zinc oxide-eugenol is treated as a separate device within the same section with its own identification and classification.
That split matters because the two cements are not interchangeable in use or in evidence. A zinc oxide-eugenol base cement and a polymer-based luting resin for a crown sit under different provisions: the resin side follows ISO 4049:2019 and, in the United States, sits alongside a resin tooth bonding agent entry at Class II.
| Item | Canada | United States |
|---|---|---|
| Zinc oxide-eugenol cement | Assessed under the general rules for the device | 872.3275, Class I (general controls) |
| Other dental cement | Assessed under the general rules for the device | Separate device within 872.3275 |
| Polymer-based luting material | Standard is ISO 4049:2019 | ISO 4049:2019, plus related part 872 entries |
| Bonding agent | Assessed under the general rules for the device | 872.3200, Class II |
| Evidence expected at the chair | Instructions for use and the material standard | Device class plus the special control guidance where one applies |
The material side of the same case is also covered by ISO 22674:2016, whose scope explicitly extends to packaging, marking and the instructions to be supplied for use, including products delivered for sale to a third party. For a clinic buying alloy through a laboratory, that is the clause that makes the instructions part of the delivery rather than a courtesy.
Which consumables does a crown appointment actually consume?
The material cost of a crown is visible on the invoice. The consumable cost is not, and it is larger per appointment than most practices assume.
- Isolation. A crown preparation needs a dry, clean field. Cotton rolls and dental bibs are the two consumables used on every case.
- Suction. Preparation and cementation both produce debris. Saliva ejectors and high-volume evacuator tips cover the two ends of that system.
- Cementation and bonding. A dual-cure self-adhesive resin cement and a universal dental adhesive are the polymer-based side of the luting decision, and both sit in the ISO 4049 conversation described above.

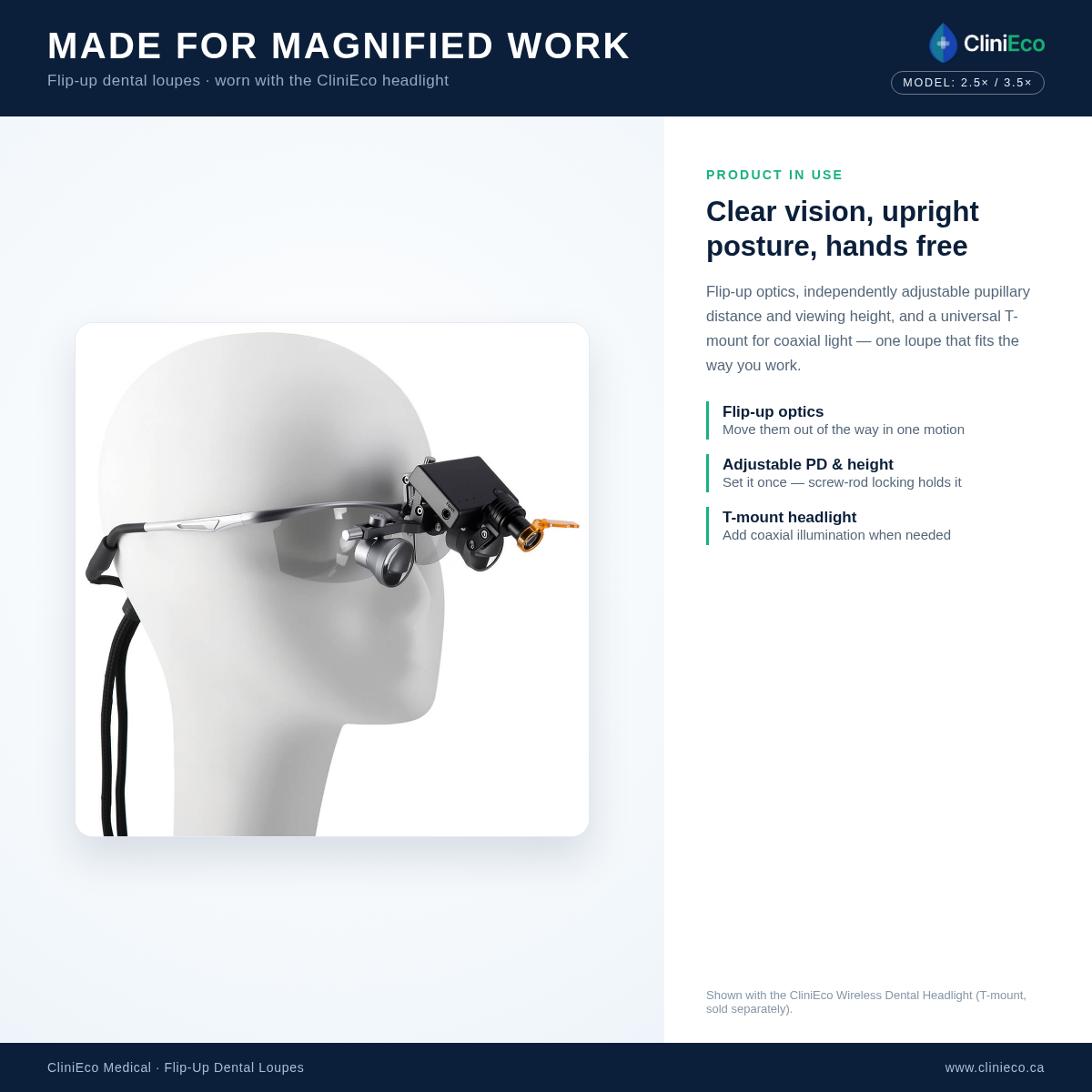

- Visibility. Precision work at the margin is easier with magnification. Clip-on dental loupes are bought by magnification and working distance.
- Impression or scanning materials. Whether the case is analogue or digital, the impression material and the tray are single-use consumables, and the reprocessing guidance for impressions applies to whatever leaves the chair.
- Reprocessing. Every instrument used during preparation is reprocessed. The College's standards and guidelines hub is the entry point for the requirements, and the provincial guidance for cleaning, disinfection and sterilisation in health care settings sets out the environment and process parameters.
Sources
- Medical Devices Regulations, SOR/98-282
- 21 CFR 872.3060, noble metal alloy
- 21 CFR 872.3710, base metal alloy
- 21 CFR 872.3690, tooth shade resin material
- 21 CFR 872.3770, temporary crown and bridge resin
- 21 CFR 872.3330, preformed crown
- 21 CFR 872.3200, resin tooth bonding agent
- 21 CFR 872.3275, dental cement
- ISO 6872:2015, dental ceramics
- ISO 22674:2016, metallic materials for dental restorations
- ISO 9693-1:2012, metal-ceramic compatibility
- ISO 4049:2019, polymer-based restorative materials
- RCDSO, instrument reprocessing
- RCDSO, standards and guidelines
- PHO, provincial guidance for cleaning, disinfection and sterilisation in health care settings
- CDA, position on the use of fluorides in caries prevention
- Canadian Dental Association
- ADA, infection control and sterilisation
- Health Canada medical devices
Ordering for a clinic, lab or care home? Wholesale and multi-site ordering covers account setup and case pricing, and the B2B wholesale collection lists the lines stocked for institutional buyers. Practices that also run an in-house sterilizer can start with the biological indicator 5-pack trial.
Related reading
- Surgical loupes for endodontics, implants and oral surgery
- Dental loupes vs dental microscope
- Dental lab disinfection: cleaning impressions without damage
- Bite blocks in Canada vs the US: dental X-ray positioning
- Provincial dental college rules on instrument reprocessing
Frequently Asked Questions
Is a crown material classified the same way in Canada and the United States?
No. In Canada, Rule 3 of Schedule 1 of the Medical Devices Regulations classifies all denture materials and orthodontic appliances and their accessories as Class II, while surgical or dental instruments are Class I. In the United States classification attaches to the specific entry: a noble metal alloy is 21 CFR 872.3060 Class II (special controls), a base metal alloy is 872.3710 Class II (special controls), and a preformed crown is 872.3330 Class I.
Which standard covers a ceramic crown material?
ISO 6872:2015 specifies the requirements and the corresponding test methods for dental ceramic materials for fixed all-ceramic and metal-ceramic restorations and prostheses. The metallic framework material is covered separately by ISO 22674:2016, which classifies metallic materials suitable for dental restorations and appliances and also specifies requirements for packaging, marking and the instructions supplied for use.
Why can the metal and ceramic not be certified separately?
Because the interface only exists when the two are used together. ISO 9693-1:2012 specifies test methods for determining the compatibility of metallic and ceramic materials used for dental restorations by testing the composite structure, and states that its requirements apply to the materials when used in combination and not to either material used alone.
Does the cement have its own classification?
In the United States it does, and the split is by chemistry. Under 21 CFR 872.3275 zinc oxide-eugenol is identified as a device intended as a temporary tooth filling or a base cement to affix a temporary filling or to affix dental devices such as crowns or bridges, and classified Class I (general controls). Dental cement other than zinc oxide-eugenol is a separate device within the same section.
Which standard covers the resin cement used to lute a crown?
ISO 4049:2019 sets requirements for dental polymer-based restorative materials supplied for mechanical mixing, hand-mixing, or intra-oral and extra-oral external energy activation, and its luting materials are intended for the cementation or fixation of restorations and appliances such as inlays, onlays, veneers, crowns and bridges. In the United States a resin tooth bonding agent has its own Class II entry at 21 CFR 872.3200.
What should a crown case purchase order actually specify?
For the framework, the material standard (ISO 22674:2016) and the alloy's type together with its instructions for use. For the ceramic, ISO 6872:2015 and the compatibility evidence under ISO 9693-1:2012 for the specific pair. For the cement, the chemistry and the activation route under ISO 4049:2019. Then the consumables: isolation, suction, magnification and reprocessing chemistry.
